How to Choose 4 ft Linear LED High Bay Lights

Choosing the right 4 ft linear LED high bay lights can significantly impact your facility’s lighting quality and energy efficiency. These powerful fixtures have become increasingly popular in warehouses, factories, and other large commercial spaces.

At PacLights, we understand the importance of selecting the perfect lighting solution for your specific needs. This guide will walk you through the key factors to consider when choosing 4 ft linear LED high bay lights, helping you make an informed decision for your space.

Understanding 4 ft Linear LED High Bay Lights

Definition and Key Features

4 ft Linear LED High Bay Lights are powerful, energy-efficient lighting fixtures designed for spaces with high ceilings. These elongated fixtures measure 4 feet in length and provide bright, uniform illumination across large areas. Their popularity has increased due to their versatility and performance.

These fixtures offer high lumen output (ranging from 18,000 to 40,000 lumens, depending on the model). This intense brightness adequately lights expansive spaces. Many models feature adjustable color temperatures (typically between 3000K and 5000K), allowing users to customize lighting to their specific needs.

Quality 4 ft linear LED high bays can last up to 100,000 hours, which reduces maintenance costs and downtime associated with frequent replacements. This longevity proves particularly valuable in industrial settings where continuous operation is essential.

Energy Efficiency and Cost Savings

4 ft linear LED high bay lights offer superior energy efficiency compared to traditional lighting solutions. LED technology converts a higher percentage of energy into light, rather than heat, resulting in lower power consumption. A 200W LED high bay can often replace a 400W metal halide fixture while providing equivalent or better illumination.

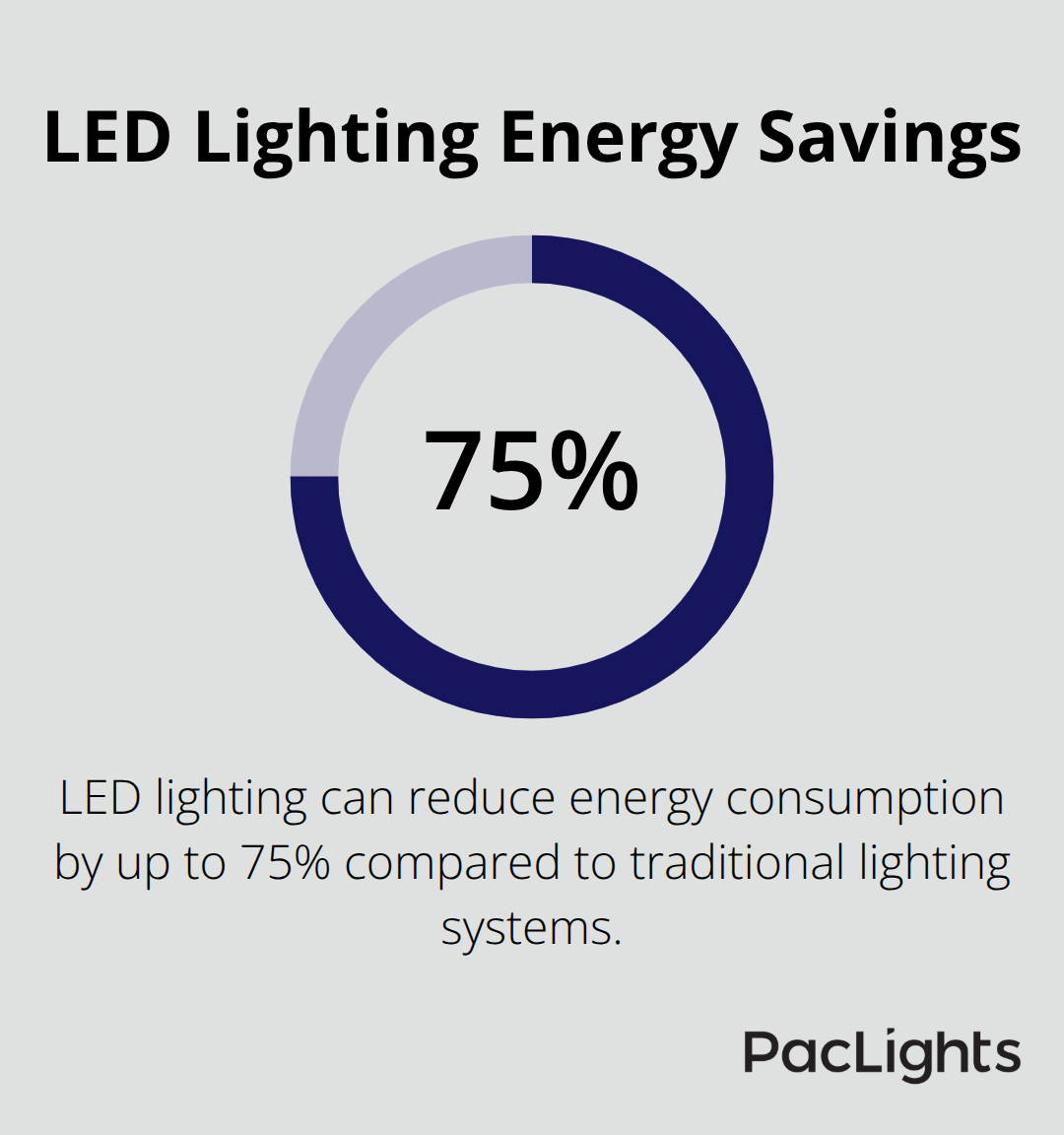

This efficiency translates directly into cost savings. The U.S. Department of Energy reports that LED lighting can reduce energy consumption by up to 75% compared to traditional lighting systems. For large facilities with numerous fixtures, this can lead to substantial reductions in electricity bills.

Versatile Applications

The versatility of 4 ft linear LED high bay lights makes them suitable for various applications:

1. Warehouses: These fixtures provide bright, even lighting necessary for safe and efficient operations. Their linear design effectively illuminates long aisles and storage areas.
2. Manufacturing Facilities: The high color rendering index (CRI) of LED lights (which can exceed 80) ensures accurate color representation. This accuracy is important for quality control processes and worker safety.
3. Retail Environments: In big-box stores, these lights enhance product visibility and create an inviting atmosphere for customers.
4. Sports Facilities and Gymnasiums: 4-foot LED lights provide glare-free, uniform lighting, which is essential for athletes and spectators. Their instant-on capability eliminates warm-up times, making them ideal for spaces that require quick lighting adjustments.

As we move forward, we’ll explore the key factors to consider when choosing 4 ft linear LED high bay lights for your specific needs.

Key Factors for Selecting 4 ft Linear LED High Bays

Lumens and Light Output

The lumen output of your high bay lights directly affects the brightness and coverage in your space. Most warehouses and industrial settings require fixtures that produce between 18,000 to 40,000 lumens. The exact number depends on your ceiling height and the tasks performed in the area.

A 30,000-lumen fixture might suit a 25-foot ceiling in a general storage area, while a 40,000-lumen option could be necessary for a 35-foot ceiling in a precision manufacturing space. Always calculate your specific needs based on square footage and desired foot-candles.

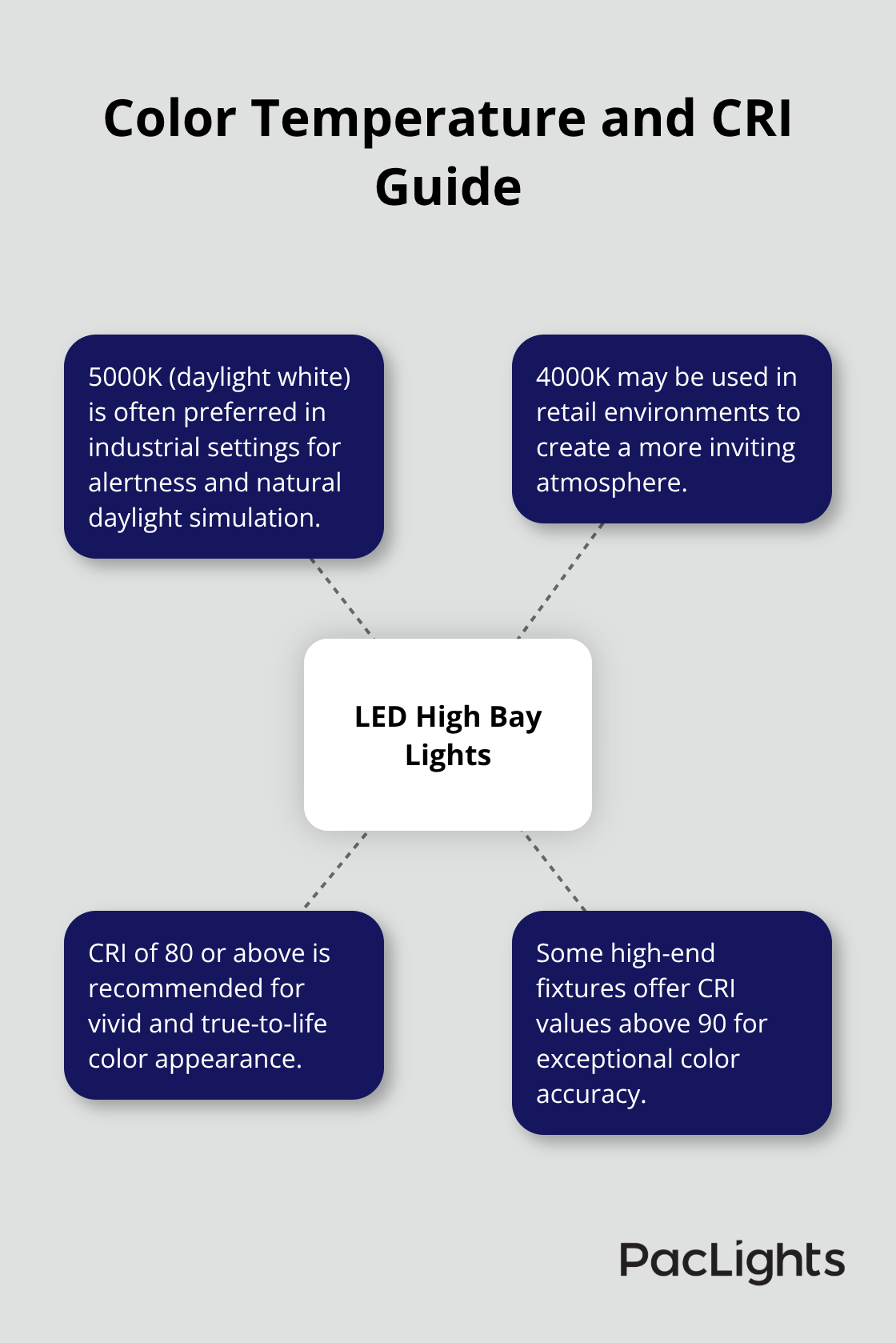

Color Temperature and CRI

Color temperature significantly impacts the ambiance and functionality of your space. 5000K (daylight white) is often preferred in industrial settings as it promotes alertness and mimics natural daylight. However, some retail environments might opt for a warmer 4000K to create a more inviting atmosphere.

The Color Rendering Index (CRI) is equally important. Try to select fixtures with a CRI of 80 or above to ensure colors appear vivid and true-to-life, which is important for quality control processes and product displays. Some high-end fixtures even offer CRI values above 90, providing exceptional color accuracy.

Energy Efficiency and Power Consumption

LED technology has revolutionized energy efficiency in lighting. When selecting your 4 ft linear high bays, look for fixtures with an efficacy of at least 130 lumens per watt. This ensures you get maximum light output for your energy input.

Many facilities report energy savings of up to 75% when switching from traditional metal halide or high-pressure sodium lights to LED high bays. These savings can translate to thousands of dollars annually for large facilities.

Light Distribution and Beam Angle

The beam angle of your high bay lights determines how the light spreads across your space. For most applications, a beam angle between 120 to 180 degrees works best. This wide distribution ensures even coverage and minimizes shadowy areas.

However, in spaces with very high ceilings (above 30 feet), a narrower beam angle of 60 to 90 degrees might be more appropriate to ensure light reaches the floor level effectively.

Durability and IP Rating

In industrial environments, durability is non-negotiable. Look for fixtures with robust construction, preferably with an aluminum housing for effective heat dissipation. The Ingress Protection (IP) rating is also important. A minimum IP65 rating suits most industrial applications, ensuring protection against dust and water jets.

For more demanding environments (such as food processing facilities or areas with high humidity), consider fixtures with an IP66 or even IP67 rating. These offer enhanced protection against powerful water jets and temporary immersion, respectively.

The right 4 ft linear LED high bay lights can significantly impact productivity, safety, and energy costs in your facility. As we move forward, we’ll explore advanced features and options that can further enhance your lighting setup and provide additional benefits to your operations.

Advanced Features for Smarter Lighting

Smart Dimming for Precision Control

Modern 4 ft linear LED high bays offer dimming capabilities that allow you to adjust light levels based on specific tasks or time of day. You can dim lights to 50% during low-activity periods in a warehouse, potentially saving up to 30% on energy costs. Some fixtures provide step dimming (100%, 75%, 50%), while others offer smooth, continuous dimming from 0-100%.

When you select dimming options, check compatibility with your existing control systems. 0-10V dimming suits industrial settings, while DALI (Digital Addressable Lighting Interface) provides more advanced control options for larger facilities.

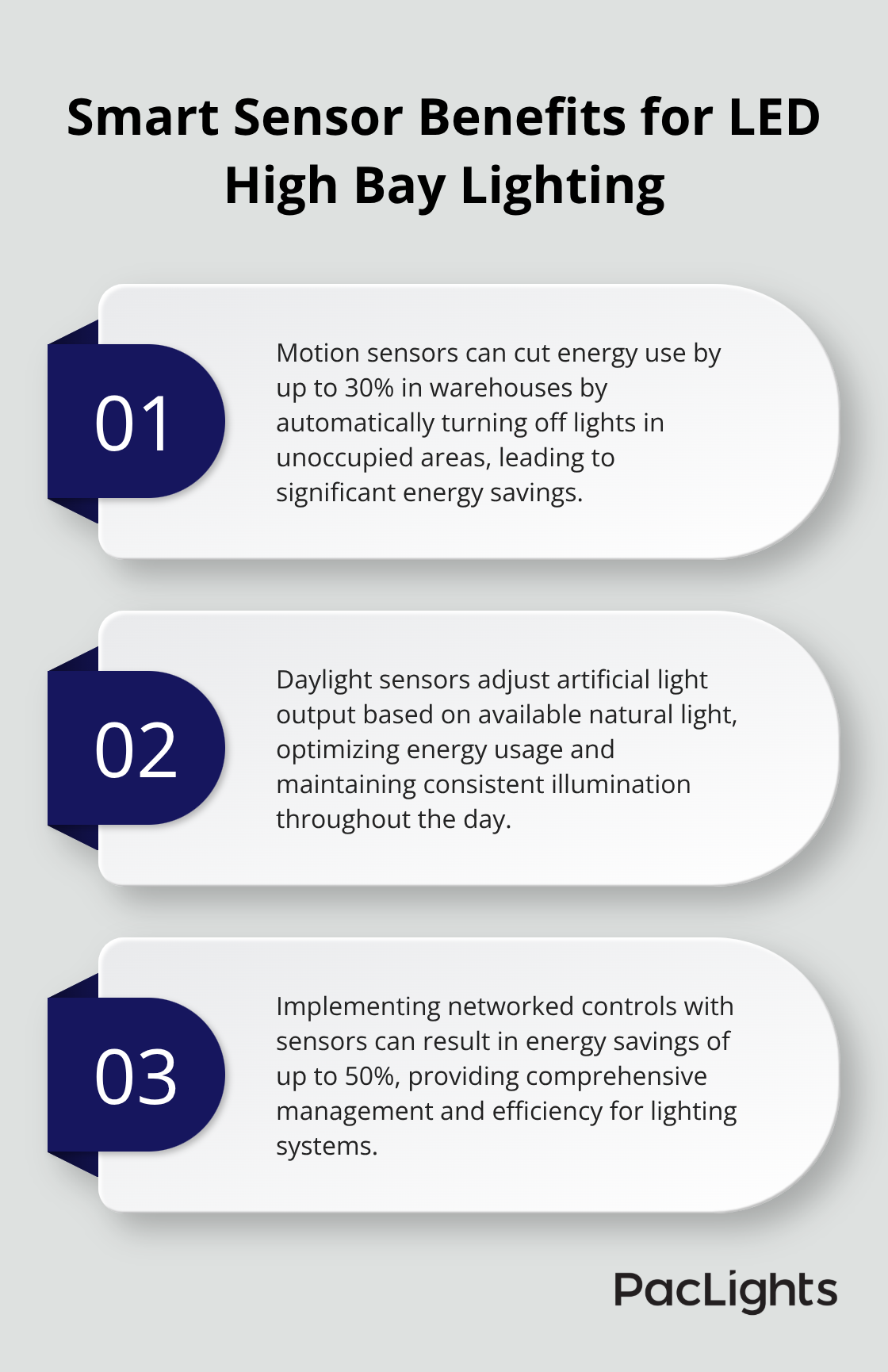

Sensor Integration for Automated Efficiency

Motion and daylight sensors can reduce energy consumption significantly. Motion sensors can cut energy use by up to 30% in warehouses by turning off lights in unoccupied areas automatically. Daylight sensors adjust artificial light output based on available natural light, which proves particularly useful in facilities with skylights or large windows.

For optimal coverage, you should place motion sensors every 20-30 feet in aisles or open areas. Daylight sensors work most effectively when positioned near windows or skylights, with one sensor typically covering 200-400 square feet.

Emergency Backup for Uninterrupted Operation

Emergency backup options keep critical areas lit during power outages. These systems typically provide 90 minutes of emergency lighting at reduced output. When you select emergency backup, consider:

1. Battery Type: Lithium-ion batteries offer longer life and faster recharge times compared to traditional lead-acid batteries.
2. Output Level: The emergency output should meet local safety codes (typically 10-20% of normal output).
3. Self-Testing: Advanced systems perform automatic monthly tests, which simplifies maintenance.

Networked Controls for Comprehensive Management

Integrating your 4 ft linear LED high bays into a networked lighting control system can yield substantial benefits. These systems allow for centralized control, detailed energy monitoring, and advanced scheduling. Some facilities report energy savings of up to 50% after implementing networked controls.

Key features to look for in networked systems include remote monitoring and control capabilities, detailed energy usage reports, integration with building management systems (BMS), and over-the-air firmware updates for future-proofing.

Customization for Specific Applications

Many manufacturers offer customization options to meet specific needs. For food processing facilities, NSF-certified fixtures withstand frequent washdowns. In cold storage environments, fixtures rated for low temperatures (down to -40°F) perform well.

Some manufacturers offer tunable white light options, which allow you to adjust color temperature throughout the day. This feature benefits environments where circadian rhythm management matters, such as 24-hour manufacturing facilities.

Final Thoughts

The selection of 4 ft linear LED high bay lights impacts energy efficiency, productivity, and operational costs. These fixtures offer superior energy efficiency, reducing electricity costs by up to 75% compared to traditional lighting systems. Their long lifespan, often exceeding 100,000 hours, minimizes maintenance and replacement expenses.

High-quality illumination from 4 ft linear LED high bay lights enhances visibility, improves safety, and can boost productivity in various industrial and commercial settings. Advanced features like dimming capabilities, sensor integration, and networked controls can further optimize your lighting system’s performance and energy savings. The right fixtures are more than just lights; they’re an investment in your facility’s future.

We at PacLights offer a wide range of 4 ft linear LED high bay lights tailored to diverse industrial needs (including optional daylight or motion control). Our team provides free lighting layout designs and ROI assessments to support your decision-making process. You can implement a lighting solution that not only illuminates your space effectively but also contributes to your facility’s overall efficiency and sustainability goals.
