Overview


LED wall packs are typically commercial light fixtures that are installed on the sides of buildings, parking garages, building walkways, and other places around commercial buildings. Not only do they provide energy efficient light but are also good security lights for business buildings making them a go to option in today’s commercial lighting industry. Wall pack lighting fixtures are designed primarily for security purposes. Their high quality light output makes them an ideal choice for illuminating difficult to observe areas that demand constant supervision. They can be triggered by a optional photo control switch, if customized accordingly. Built to sustain and last under harsh and humid weather conditions, they are the perfect choice for the toughest environments, providing great reliability every day. They also provide a low glare and are impact resistant, making them a great choice for just about any application.

Wallpacks

F2WP series LED Wallpacks

From 2,700 lm to 15,000 lm

Wallpacks

FWPR series LED Wall Lights

From 3,200 lm to 13,400 lm

Wallpacks

FWPT series LED Wallpacks

From 4,300 lm to 15,500 lm

We are here to help

Questions? we are here to help. Find out where you can purchase PacLights products. We also offer Free Lighting Layout for your project.

Contact us Where to Buy? Request Free Layout

Compare and Select

FWPT series
Traditional external design with performance LED internal for all wall mount applications.
4,300-15,500 Lumen
  • trending_down Semi-Cutoff Design
  • 70w-400w MH equivalent
  • 35w - 120w LED
  • up to 130 LPW
  • Ambient up to 113 F°
  • Non-Dimmable
  • Photocell Sensor (optional)

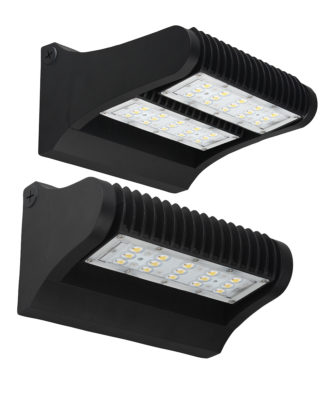

FWPR series
Spec grade design with rotatable high performance light module(s) for various beam angel needs.
3,200-13,400 Lumen
  • Rotatable Module(s) Design
  • 70w-400w MH equivalent
  • 25w - 120w LED
  • up to 132 LPW
  • Ambient up to 113 F°
  • Non-Dimmable

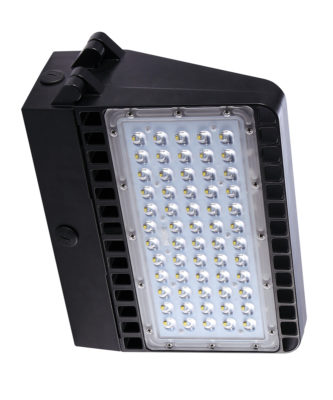

F2WP series
Architecture grade design, full cut-off, advanced thermal management, reliable performance
2,700-15,000 Lumen
  • Full-cutoff Design
  • 70w-400w MH equivalent
  • 24w - 150w LED
  • up to 114 LPW
  • Ambient up to 122 F°
  • Dimmable (optional)
  • Photocell Sensor (optional)

Learn more

Wall pack lighting fixtures are typically used for illuminating landscapes, parking lots, office complexes, warehouses and convenience stores. They work great as building security because they can be used with a photo control switchboard that enables timed control of the light switch to go off during daylight hours and automatically start up during night time. This saves energy and will ensure you only have lighting when you need it, allowing you to put your light fixtures out of mind. Standard HID wall packs are reflector based luminaries. This type of fixture loses about 30% of the lamp's Lumens within the reflector and lamp through "Lumen bounce," meaning 30% of the light never escapes the fixture. Metal halide bulbs also lose Lumens quickly over time. In comparison, LED wall packs are directional and do not lose Lumen output in the same way. Because of this, an LED wall pack puts out a comparable amount and quality of light to replace a MH fixture that on paper has a much higher Lumen rating.
