Features
DLC QPL v5.1 Listed
The DesignLights Consortium® (DLC) is a non-profit organization promotes high-quality, energy-efficient lighting products in collaboration with utilities and energy efficiency program members, manufacturers, lighting designers. DLC Listed high performing LED lighting products may qualify for rebates.
Secondary Surge Protection
FFHS/3 comes standard with a secondary 20kV surge protector for extra peace of mind.
Control Options
FFHS/3 comes with ANSI C136.41 (7 pin NEMA) receptacle, compatible with most 3, 5 or 7 pin twist lock photocell or smart controls.

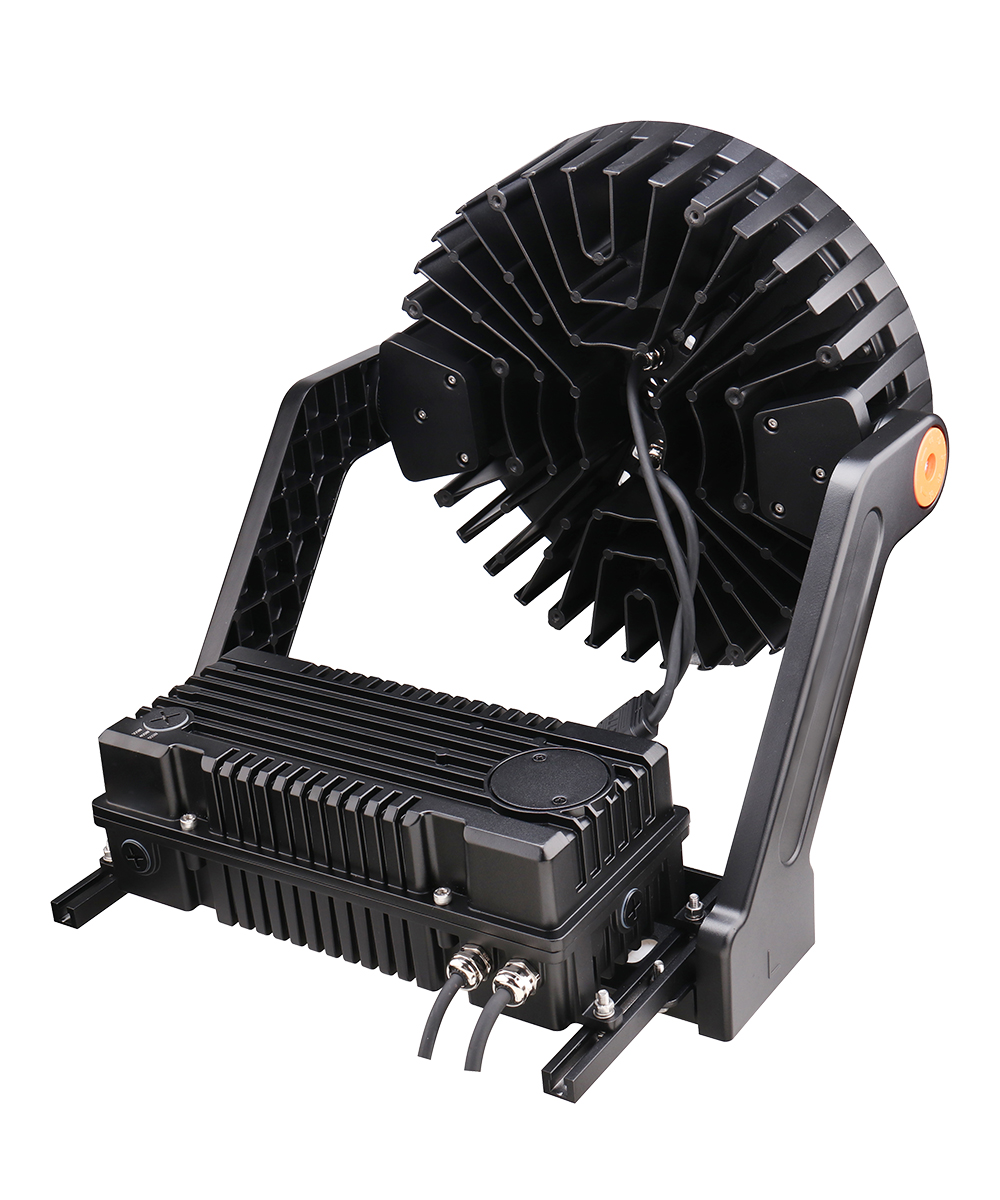

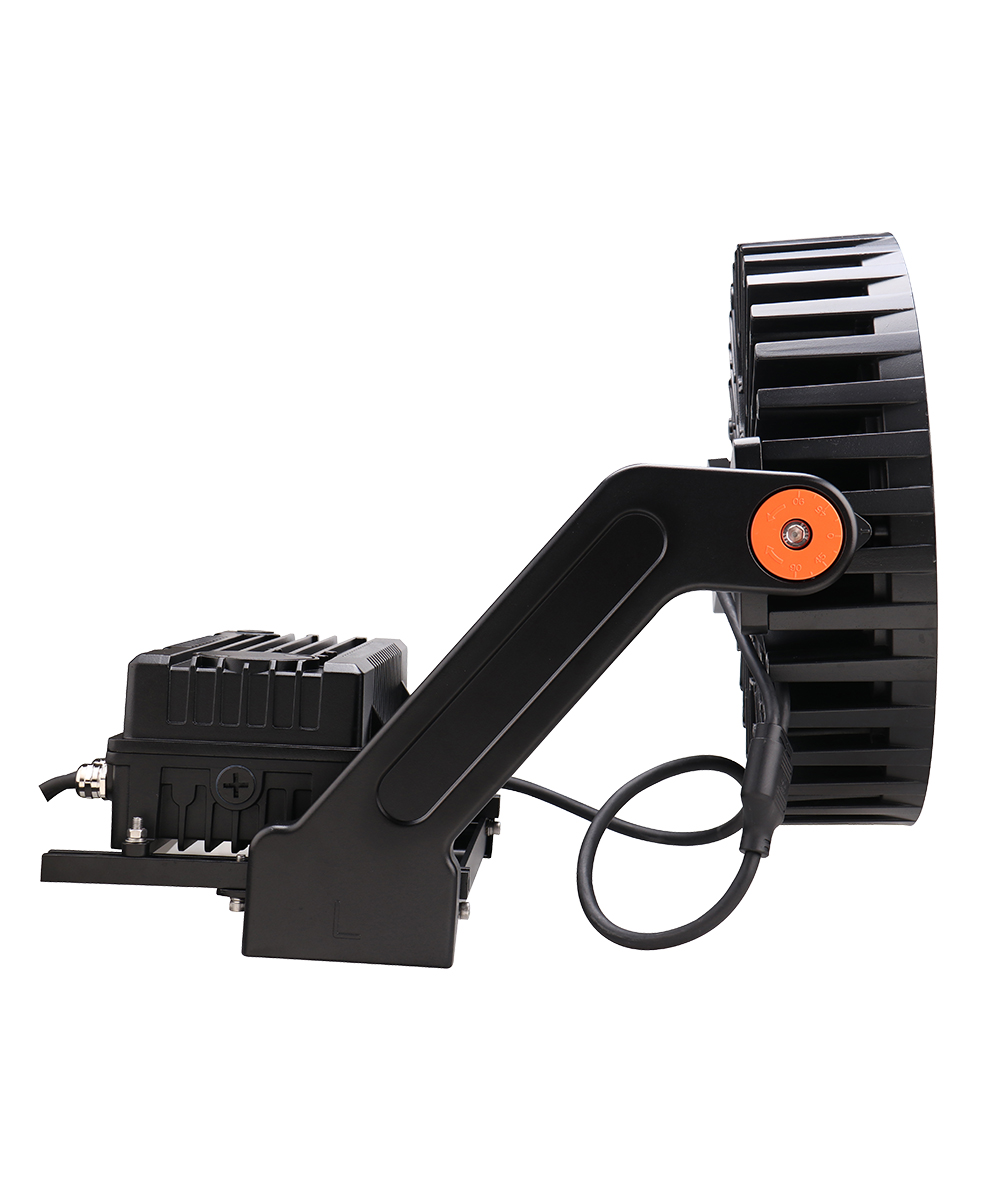

Detachable Drivers
Detachable LED driver(s) compartment can be placed remotely such as under the pole for the convenience of inspection and maintenance.
Specs & Variations
| Model | LED Wattage | Lumen | Efficacy |
|---|---|---|---|
| FFHS/3-400 | 400w | 56,800 lm | 142 lm/w |
| FFHS/3-500 | 500w | 71,000 lm | 142 lm/w |
| FFHS/3-600 | 600w | 85,200 lm | 142 lm/w |
| FFHS/3-750 | 750w | 106,500 lm | 142 lm/w |
| FFHS/3-1000 | 1,000w | 142,000 lm | 142 lm/w |
| FFHS/3-1200 | 1,200w | 170,400 lm | 142 lm/w |
* Lumen on 5000K CCT
Build Your Light
| Family | Model | Input Voltage | Color Temperature | NEMA Beam | Optional Adds-on |
FFHS/3 |  | | | | |

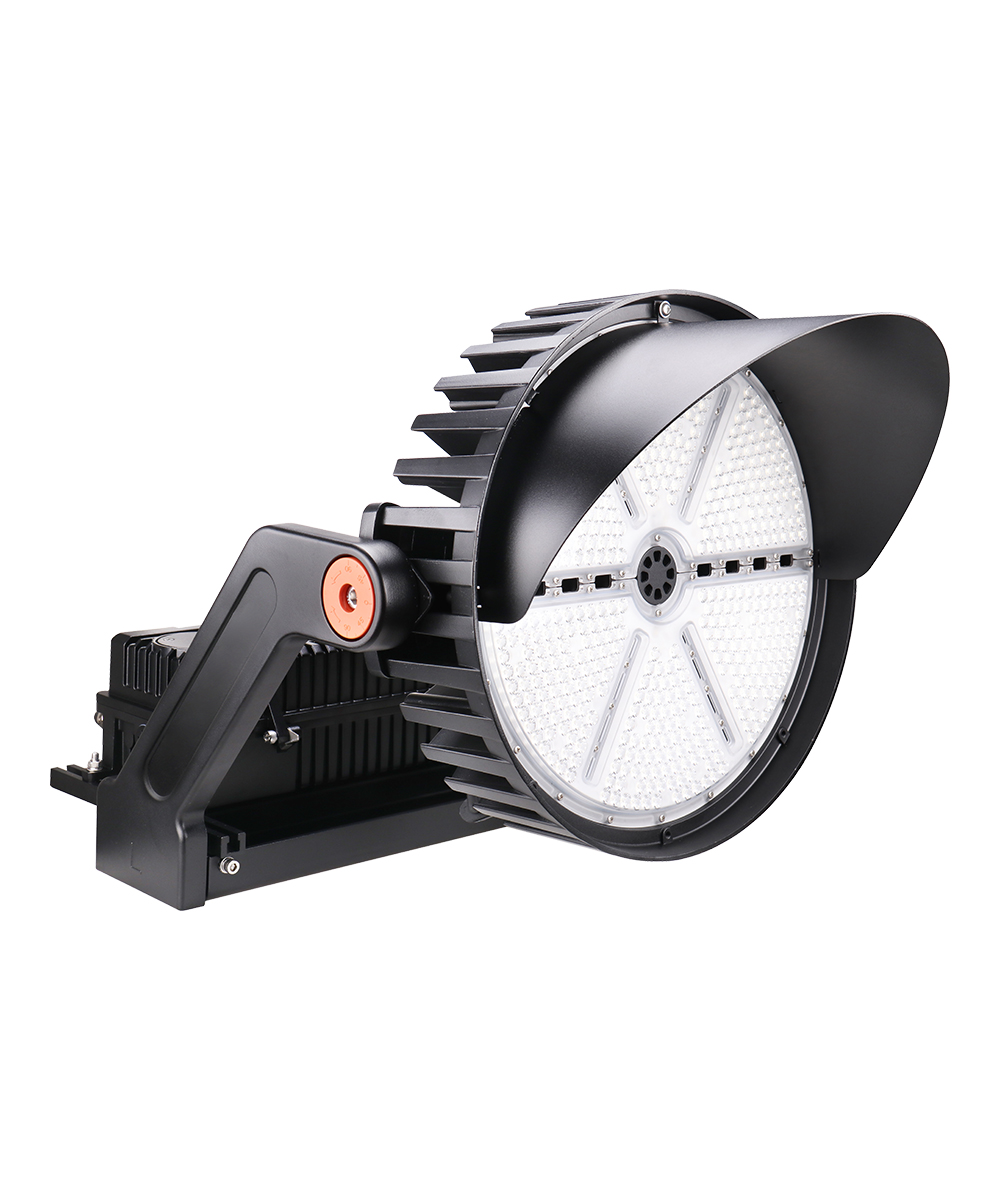

400 - 400w | UV - 120-277v | 30 - 3000K 1 | T2 2 - NEMA 3H3V - 20° | GS - Glare shield | |

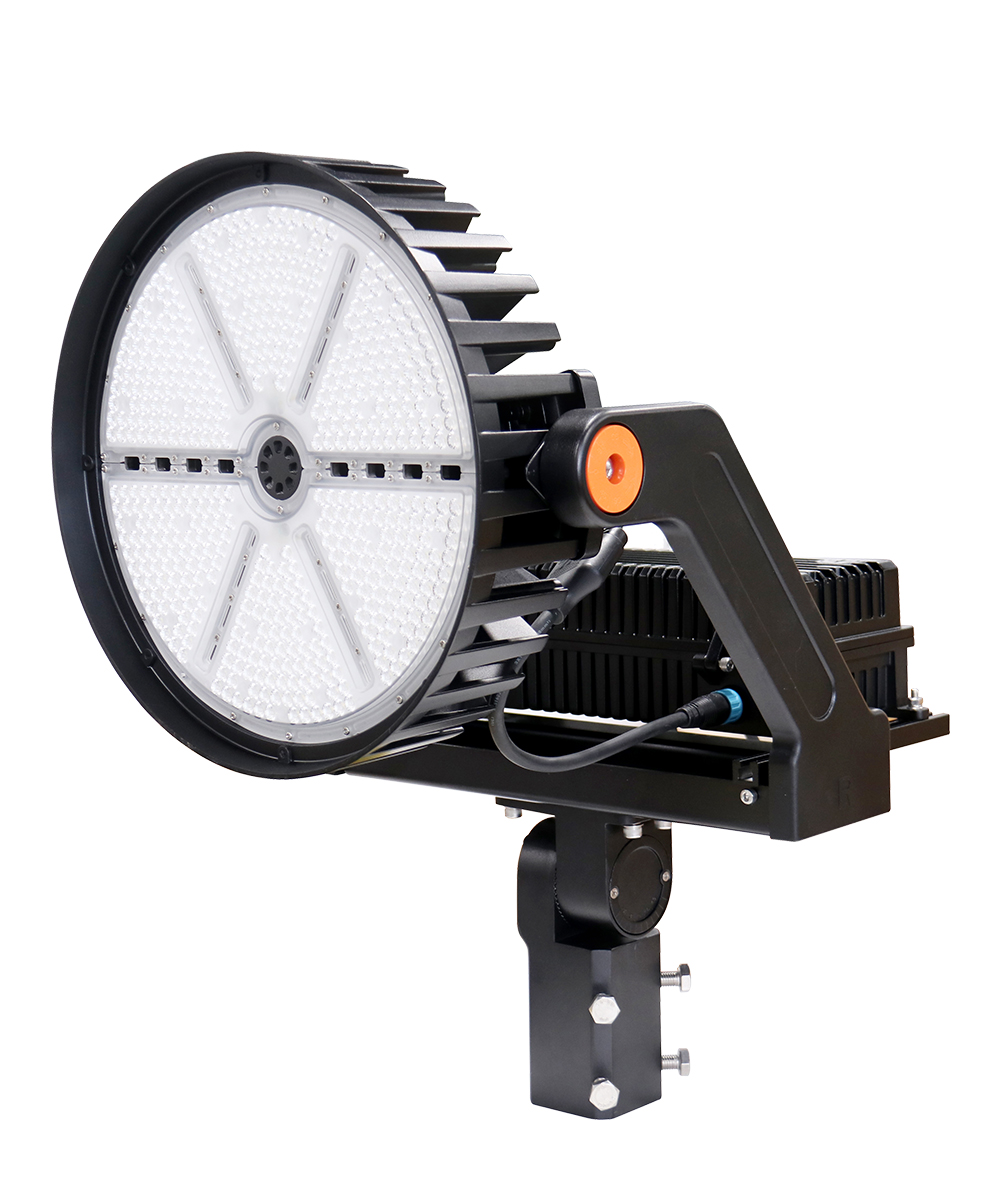

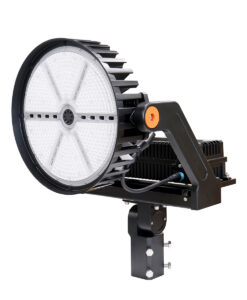

500 - 500w | HV - 277-480v | 40 - 4000K 1 | T3 - NEMA 4H4V - 30° | SF - Slipfitter mount | |
600 - 600w | 50 - 5000K | T4 3 - NEMA 5H5V - 40° | PC - Photocell Control | ||
750 - 750w | 57 - 5700K 1 | T6 2 - NEMA 5H5V - 60° | DL - photocell + daylight harvesting dimming control | ||
1000 - 1,000w | T8 4 - NEMA 6H6V - 80° | DM - photocell + daylight harvesting + mid-night dimming control | |||
1200 - 1,200w | T12 5 - NEMA 7H7V - 120° | ECxx 1 - extension cord for remote drivers; xx = length in ft, ex: 90ft = EC90 | |||
* Ordering information is for reference only. Some product configurations are not available. Please consult spec sheets for specific product availability and for further details.
Note 1) available for special order; 2) only available for 600/750/1000/1200w models, extra cost may apply; 3) available for all models, extra cost may apply; 4) only available for 400/500/600/750w models, extra cost may apply; 5) only available for 400/500w models, extra cost may apply.
Case Studies
Documents & Downloads

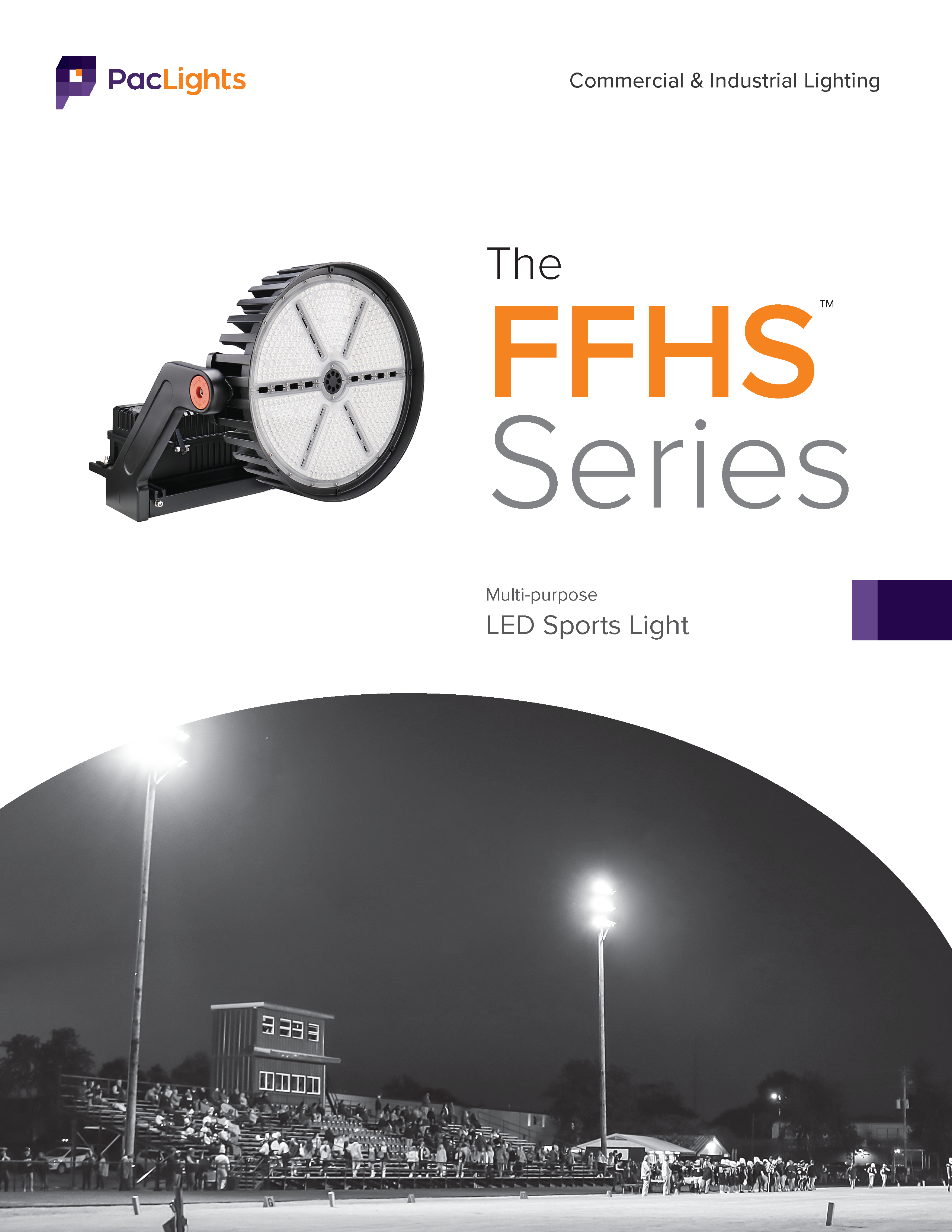

  FFHS series (FFHS/3) Product Specification Sheet |
Previous Generations:
(2nd Generation)
FFHS series (FFHS/2) Product Spec Sheet
(1st Generation)
FFHS series (FFHS) Product Spec Sheet
* specifications are subject to change without notice.
FFHS series (FFHS/3) Installation Guide
Previous Generations:
(2nd Generation)
FFHS series (FFHS/2) Installation Guide
(1st Generation)
FFHS series (FFHS) Installation Guide
| wdt_ID | GENERATION | SKU | WATTAGE | CCT | OPTICS | IES File |
|---|---|---|---|---|---|---|
| 1 | 3rd (Latest) | FFHS/3-400-30-T3 | 400 | 3000K | 30° | Download IES |
| 2 | 3rd (Latest) | FFHS/3-400-30-T4 | 400 | 3000K | 40° | Download IES |
| 3 | 3rd (Latest) | FFHS/3-400-30-T8 | 400 | 3000K | 80° | Download IES |
| 4 | 3rd (Latest) | FFHS/3-400-30-T12 | 400 | 3000K | 120° | Download IES |
| 5 | 3rd (Latest) | FFHS/3-400-40-T3 | 400 | 4000K | 30° | Download IES |
| 6 | 3rd (Latest) | FFHS/3-400-40-T4 | 400 | 4000K | 40° | Download IES |
| 7 | 3rd (Latest) | FFHS/3-400-40-T8 | 400 | 4000K | 80° | Download IES |
| 8 | 3rd (Latest) | FFHS/3-400-40-T12 | 400 | 4000K | 120° | Download IES |
| 9 | 3rd (Latest) | FFHS/3-400-50-T3 | 400 | 5000K | 30° | Download IES |
| 10 | 3rd (Latest) | FFHS/3-400-50-T4 | 400 | 5000K | 40° | Download IES |
| GENERATION | SKU | WATTAGE | CCT | OPTICS | IES File |
*IES files might not cover all options
| wdt_ID | QPL Model No. | Product ID | Version | Classification | Primary Use |
|---|---|---|---|---|---|
| 213 | FFHS/3-1000-HV-40-T3-acde P | S-9MDUTS | 5.1 | Premium | Architectural Flood and Spot Luminaires |
| 214 | FFHS/3-1000-HV-50-T3-acde P | S-U5WMSN | 5.1 | Premium | Architectural Flood and Spot Luminaires |
| 215 | FFHS/3-1000-UV-40-T3-acde P | S-5XJ7M1 | 5.1 | Premium | Architectural Flood and Spot Luminaires |
| 216 | FFHS/3-1000-UV-50-T3-acde P | S-FV36MP | 5.1 | Premium | Architectural Flood and Spot Luminaires |
| 217 | FFHS/3-1200-HV-40-T3-acde P | S-5HZD1P | 5.1 | Premium | Architectural Flood and Spot Luminaires |
| 218 | FFHS/3-1200-HV-50-T3-acde P | S-9R4SPZ | 5.1 | Premium | Architectural Flood and Spot Luminaires |
| 219 | FFHS/3-1200-UV-40-T3-acde P | S-S5HQ36 | 5.1 | Premium | Architectural Flood and Spot Luminaires |
| 220 | FFHS/3-1200-UV-50-T3-acde P | S-K5HD3E | 5.1 | Premium | Architectural Flood and Spot Luminaires |
| 221 | FFHS/3-400-UV-40-T3-acde P | S-XUFWIS | 5.1 | Premium | Architectural Flood and Spot Luminaires |
| 222 | FFHS/3-400-UV-50-T3-acde P | S-SX10O2 | 5.1 | Premium | Architectural Flood and Spot Luminaires |
