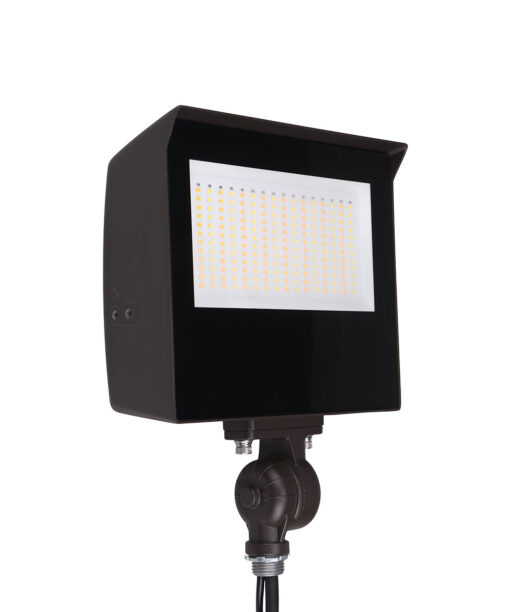

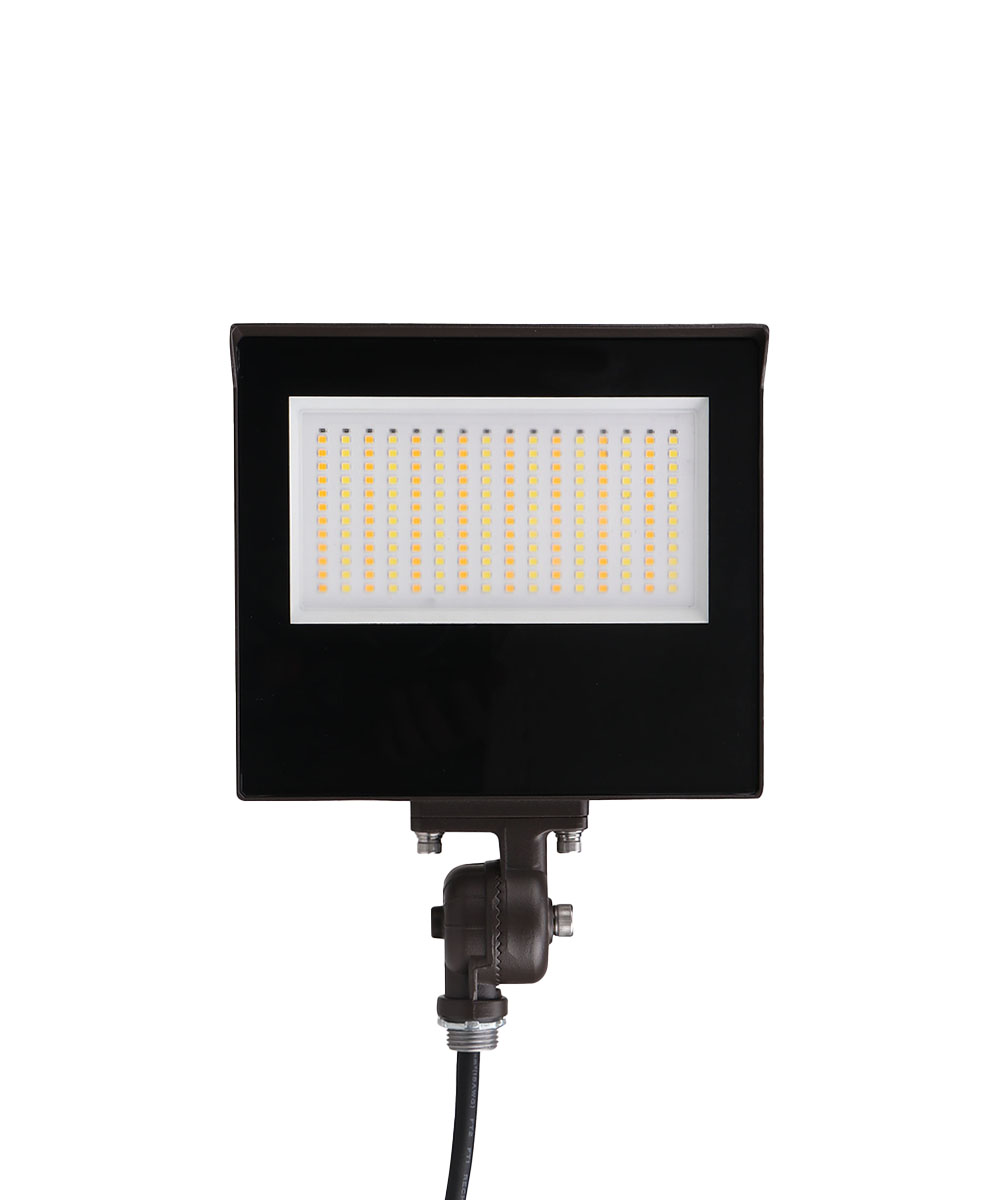

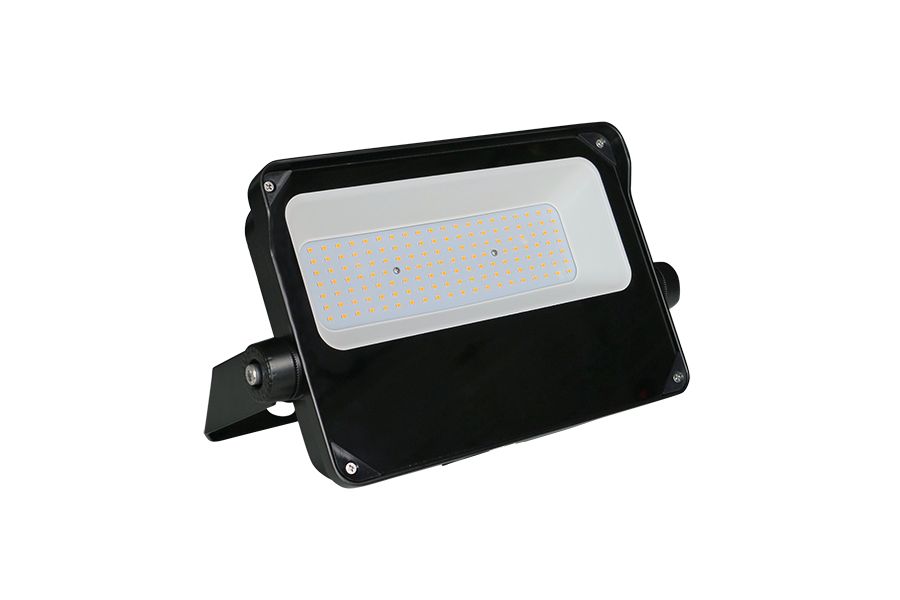

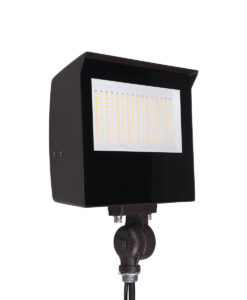

FFLE series LED Flood Lights

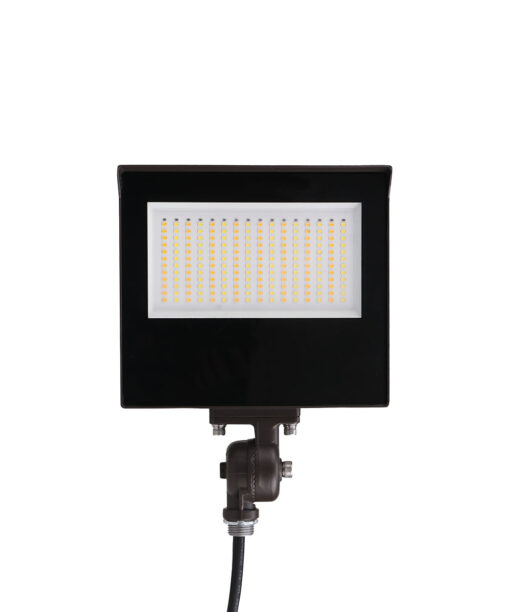

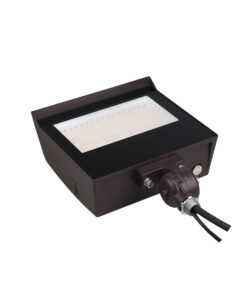

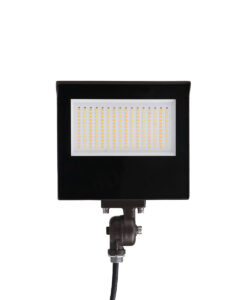

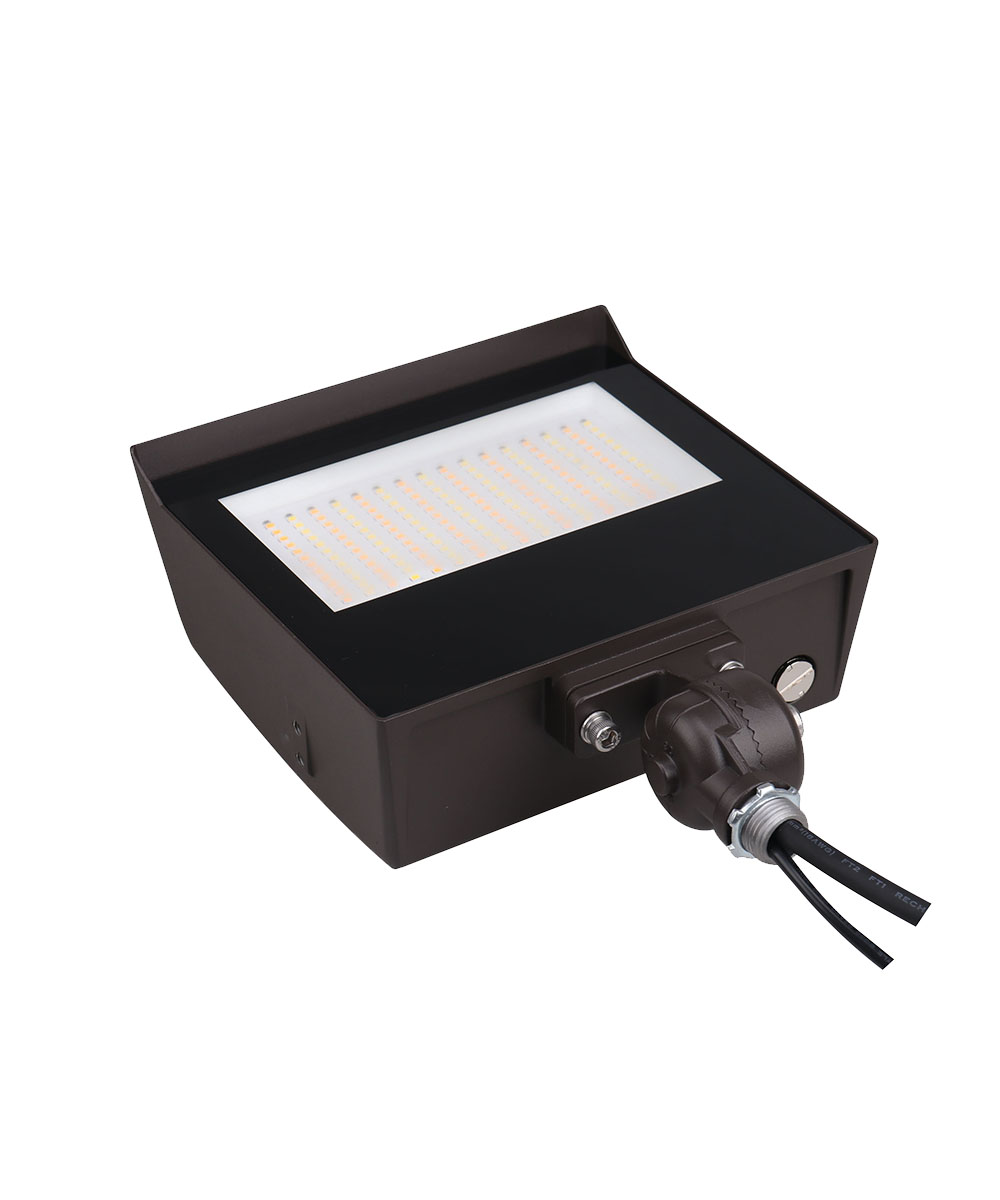

FFLE series comes with an integrated visor which reduces observable glare and the tempered glass lens doesn’t yellow or degrade performance. It includes a flood mount and offers the option of either a trunnion or slipfitter mount. A high-reflectance white reflector maximizes output with the wide 7H x 7V distribution, making them ideal for a large variety of general-purpose applications.

– Limited Warranty: 5 years
– Efficacy: up to 150 LPW
– Lumen Output: 13,500 – 36,000 L
– Wattage: 100 / 150 / 200 / 240 W

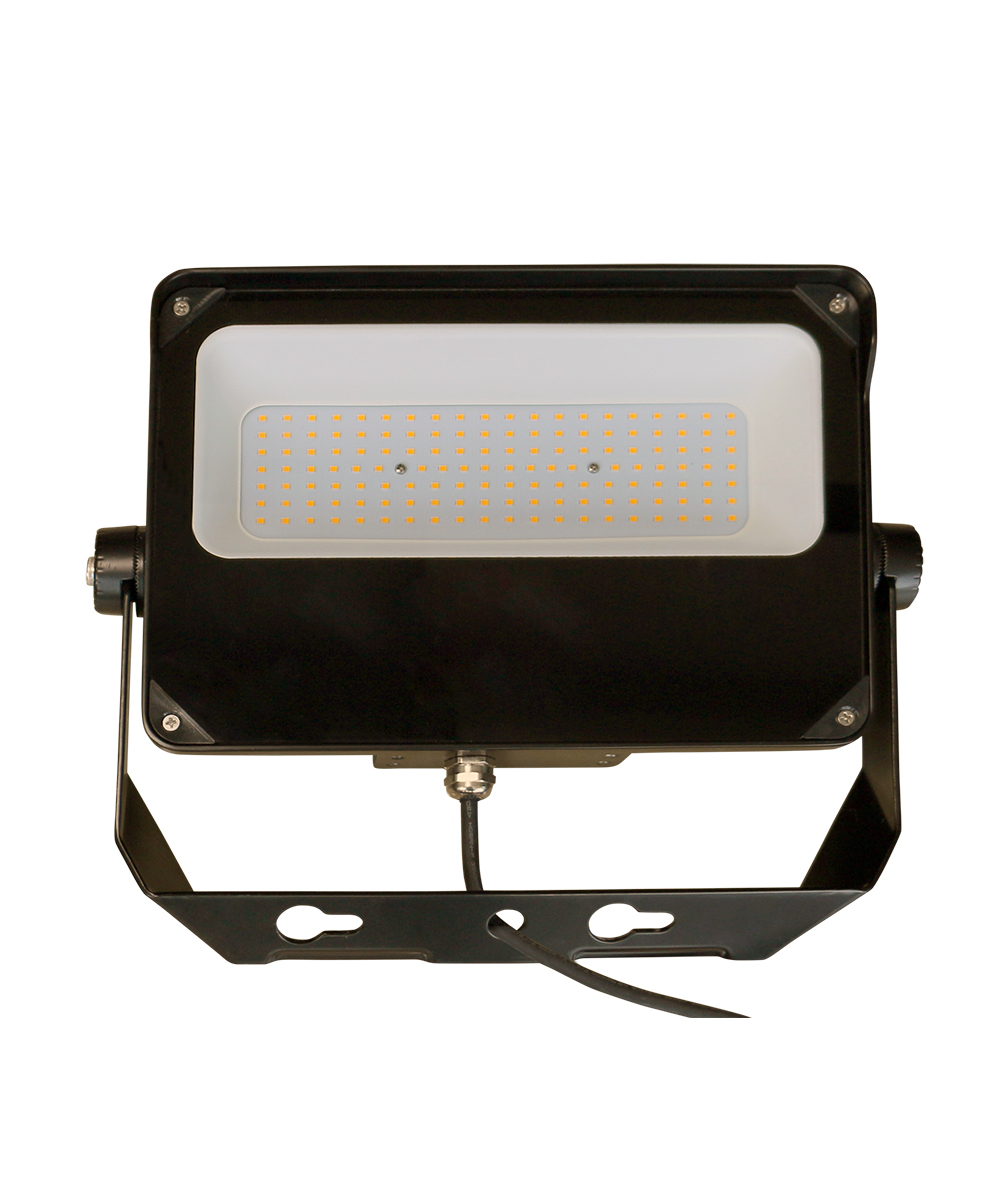

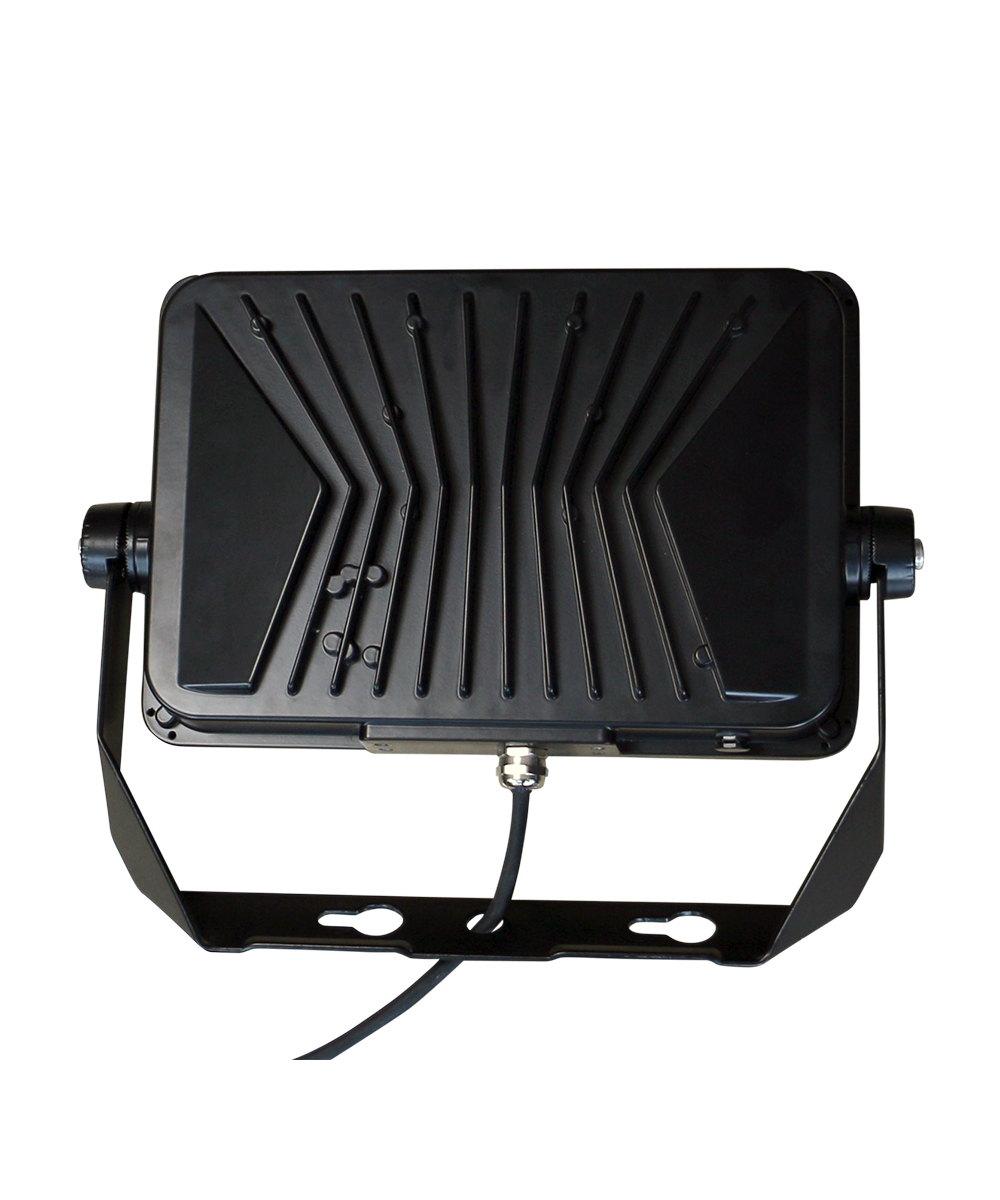

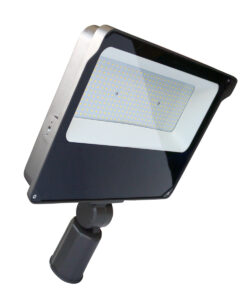

– Trunnion and Slipfitter mounting option available

UL Listed DLC QPL Premium

Price & Availability Need Help?
Features SPECIFICATIONS Downloads
Find Rebate Free Layout

From 13,500 lm to 36,000 lm
SKU: FFLE Categories: , Tag:

Features

DLC QPL v5.1 Listed

The DesignLights Consortium® (DLC) is a non-profit organization promotes high-quality, energy-efficient lighting products in collaboration with utilities and energy efficiency program members, manufacturers, lighting designers. DLC Listed high performing LED lighting products may qualify for rebates.

IP 66 Rated

IP rated as “dust tight” and protected against high pressure water projected from any direction.

Photocell Control Option

Optional photocell control that is triggered to allow power supply when light levels fall below a specified value and then switch the supply off when the light level reaches another designated value.

0-10v Dimmable

All models are dimmable with any 0-10v dimmer.



Specs & Variations

Model LED Wattage [email protected] [email protected] [email protected] [email protected]
FFLE-100 100W 14,500 lm 14,200 lm 13,800 lm 13,500 lm
FFLE-150 150W 22,500 lm 21,750 lm 21,300 lm 21,000 lm
FFLE-200 200W 30,000 lm 29,000 lm 28,400 lm 28,000 lm
FFLE-240 240W 36,000 lm 34,800 lm 34,080 lm 33,600 lm



Build Your Light

Family Model Input Voltage Color Temperature Options

FFLE
100 - 100w
UV   - 120-277v
30  1 - 3000K

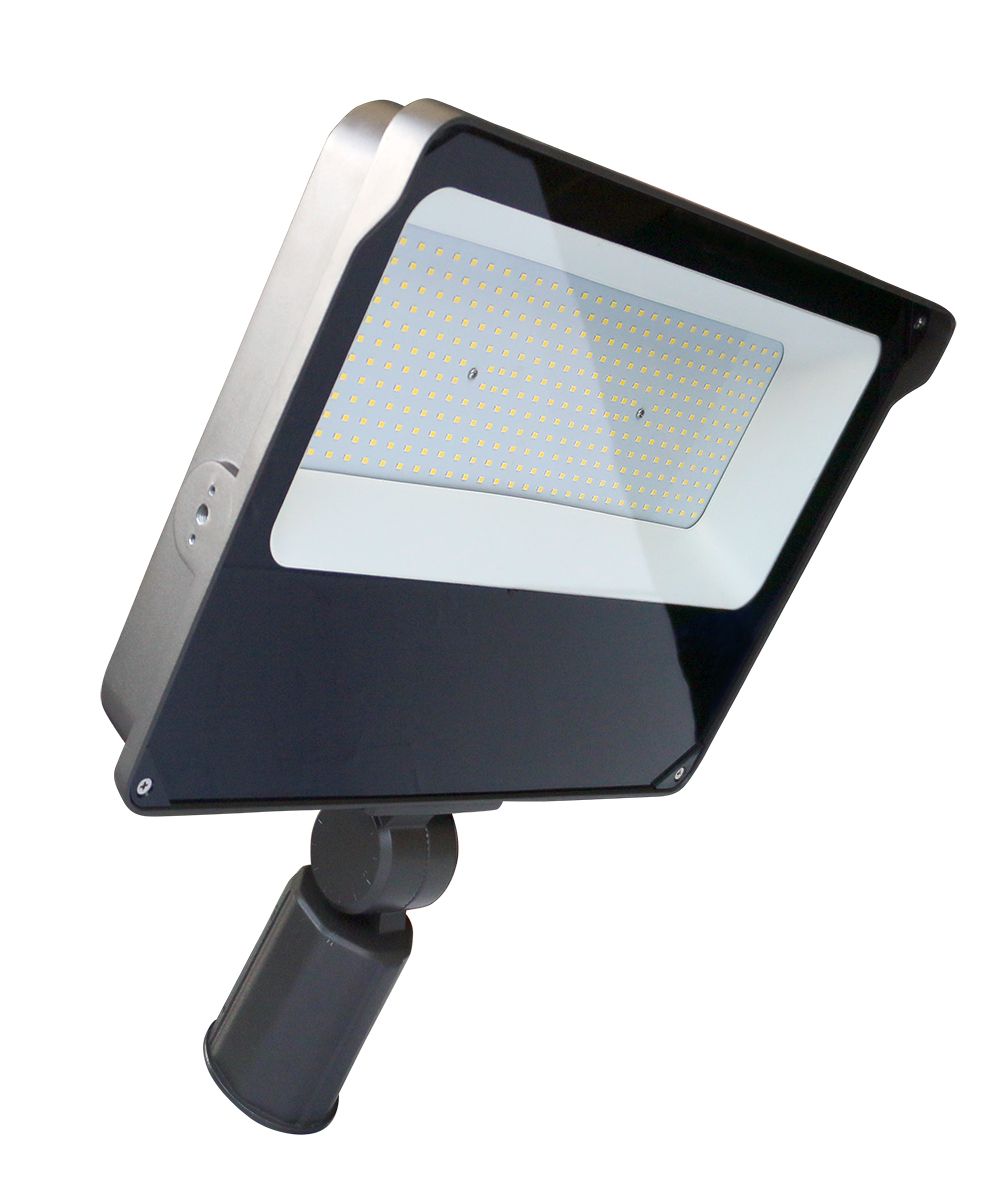

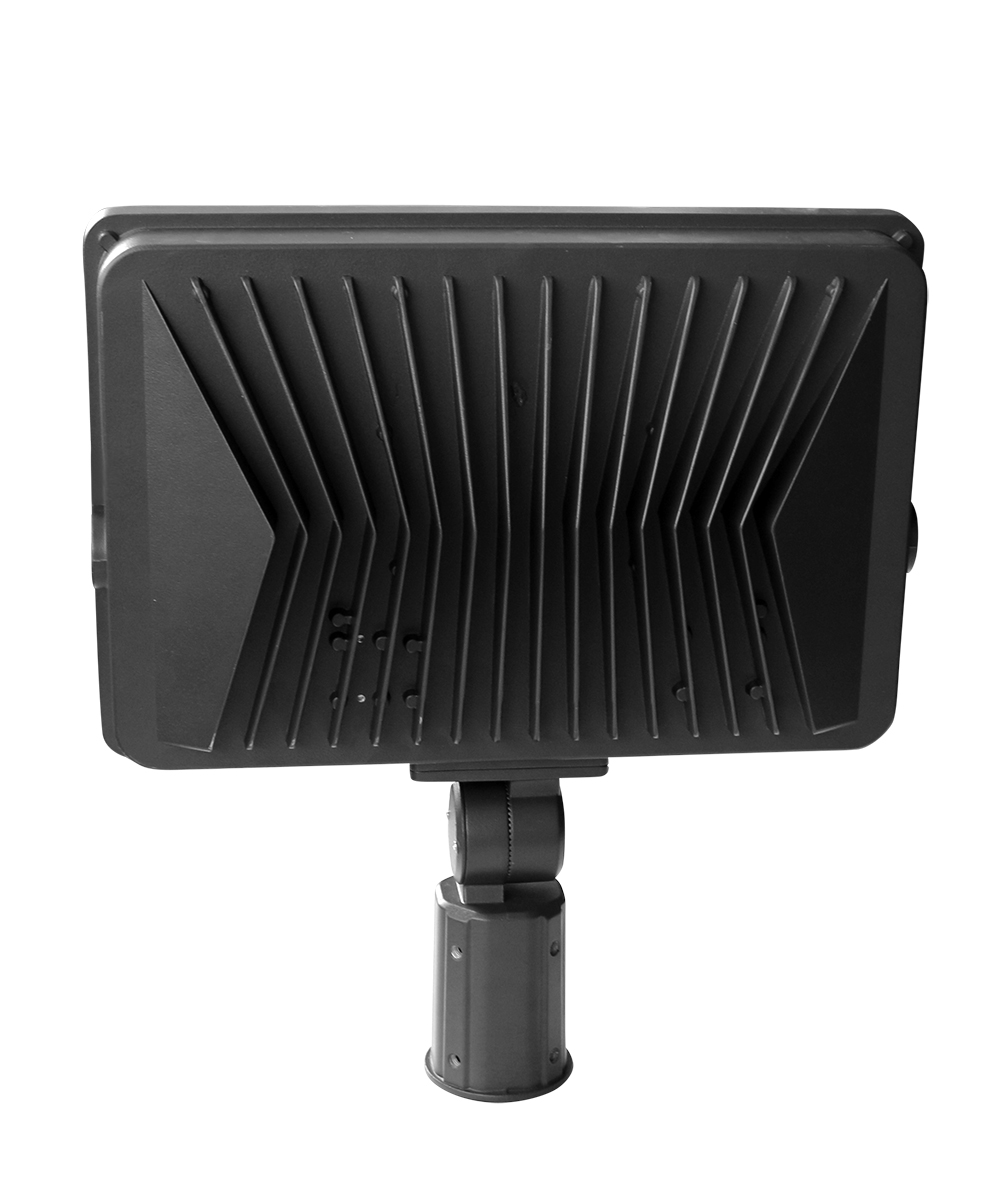

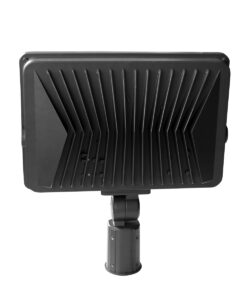

SF - slipfitter mount
150 - 150w
40 - 4000K

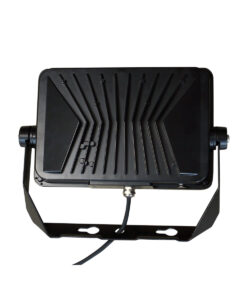

TM - trunnion mount
200 - 200w
50 - 5000K
PC  1 - photocell control
240 - 240w
57  1 - 5700K

* Ordering information is for reference only. Some product configurations are not available. Please consult spec sheets for specific product availability and for further details.
Note 1) available for special order



Documents & Downloads

Specification & Sales Sheets
spec sheet

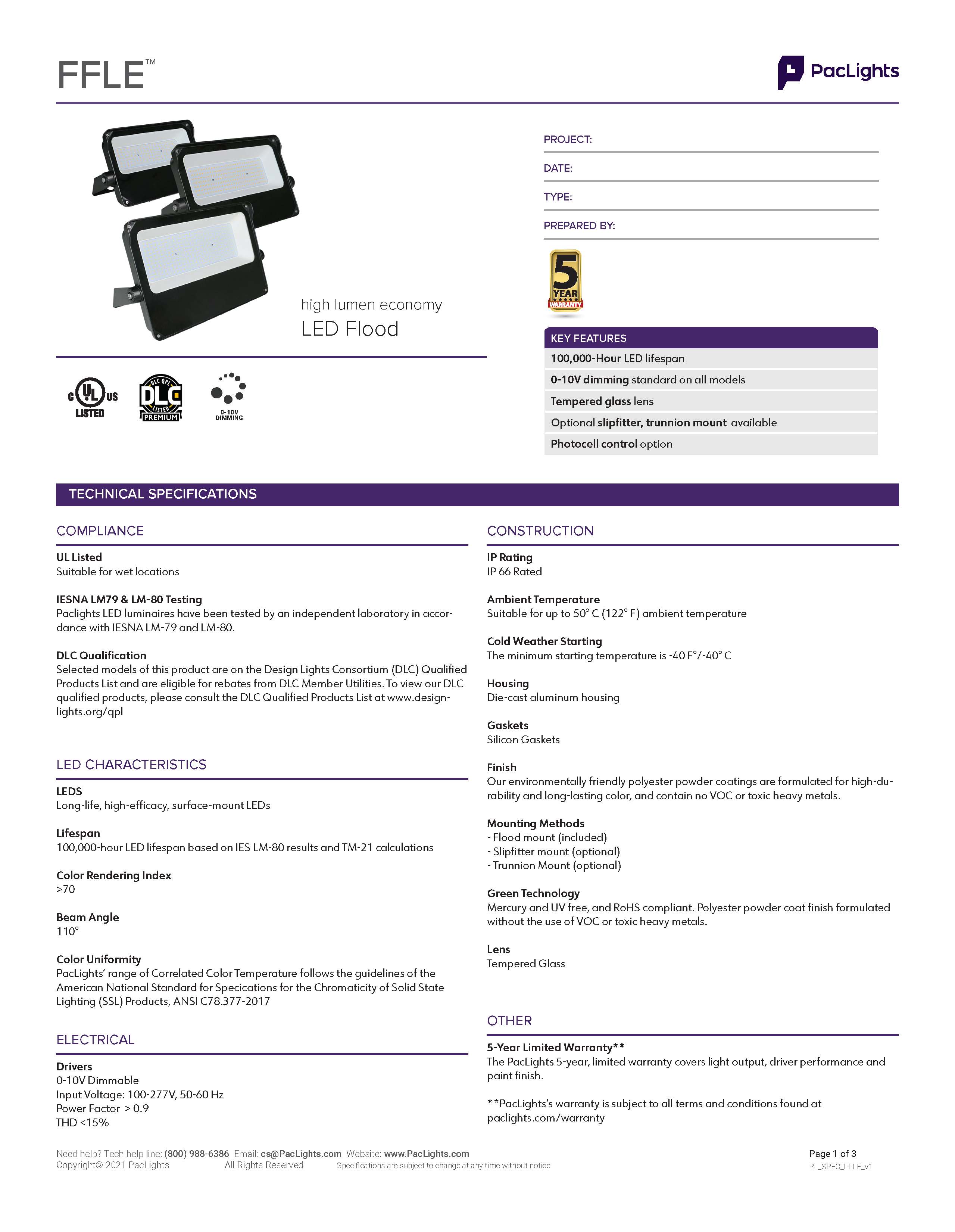

pdficonFFLE series Product Specification Sheet

* specifications are subject to change without notice.

pdficonFFLE series Installation Guide

* installation instructions are subject to change without notice.

Download IES Files:

FFLE-100 | FFLE-150 | FFLE-200 | FFLE-240

*IES files might not cover all options

wdt_IDQPL Model No.Product IDVersionClassificationPrimary Use
196FFLE-100-[UV;HV]-30-[PC;Blank]-[Blank;SF;YK;KN]P23A0DM65.1PremiumArchitectural Flood and Spot Luminaires
197FFLE-100-[UV;HV]-40-[PC;Blank]-[Blank;SF;YK;KN]PK81ACDX5.1PremiumArchitectural Flood and Spot Luminaires
198FFLE-100-[UV;HV]-50-[PC;Blank]-[Blank;SF;YK;KN]PMMZX6BK5.1PremiumArchitectural Flood and Spot Luminaires
199FFLE-100-[UV;HV]-57-[PC;Blank]-[Blank;SF;YK;KN]P7VSVA4W5.1PremiumArchitectural Flood and Spot Luminaires
200FFLE-150-[UV;HV]-30-[PC;Blank]-[Blank;SF;YK;KN]PLIL4JFL5.1PremiumArchitectural Flood and Spot Luminaires
201FFLE-150-[UV;HV]-40-[PC;Blank]-[Blank;SF;YK;KN]P0IEOF755.1PremiumArchitectural Flood and Spot Luminaires
202FFLE-150-[UV;HV]-50-[PC;Blank]-[Blank;SF;YK;KN]PL3NOVSE5.1PremiumArchitectural Flood and Spot Luminaires
203FFLE-150-[UV;HV]-57-[PC;Blank]-[Blank;SF;YK;KN]P1C99SS05.1PremiumArchitectural Flood and Spot Luminaires
204FFLE-200-[UV;HV]-30-[PC;Blank]-[Blank;SF;YK;KN]P9WQN04V5.1PremiumArchitectural Flood and Spot Luminaires
205FFLE-200-[UV;HV]-40-[PC;Blank]-[Blank;SF;YK;KN]PG8IL9MW5.1PremiumArchitectural Flood and Spot Luminaires
QPL Model No.Product IDVersionClassificationPrimary Use
