Gen.2

FFLA series LED Flood Lights

The FFLA series are economy low-medium lumen IP65 rated LED flood Lights for all general applications. Now the 2nd generation (FFLA/2) also offers color and lumen selectable models with built-in optional photo control. FFLA flood light comes with knuckle mount for 15w/30w/50w models, and flood mount for 70w/90w models. Yoke, slipfitter or arm mounts are optional.

– Limited Warranty: 5 years
– Efficacy: up to 146 LPW
– Lumen Output: 2,000 – 12,000 L
– Wattage: 15W, 30W, 50W, 70W, 90W
– Selected models 3000K/4000K/5000K field-selectable
– Selected models photo control included

UL Listed DLC QPL Premium

Price & Availability
Features SPECIFICATIONS Downloads
Find Rebate Free Layout

From 2,000 lm to 12,000 lm
SKU: FFLA/2 Categories: , Tag:

Features

DLC QPL v5.1 Listed

The DesignLights Consortium® (DLC) is a non-profit organization promotes high-quality, energy-efficient lighting products in collaboration with utilities and energy efficiency program members, manufacturers, lighting designers. DLC Listed high performing LED lighting products may qualify for rebates.

CCT and Lumen Selectable

Selected models can choose lumen output and color temperature before installation with an integrated switch.

Photo Control Included

Selected models include a photo control that is triggered to allow power supply when light levels fall below a specified value and then switch the supply off when the light level reaches another designated value.

IP 65 Rated

IP rated as “dust tight” and protected against water projected from a nozzle.



Specs & Variations

Model LED Wattage [email protected] [email protected] [email protected]
FFLA/2 - 15 15W 2,282 lm 2,190 lm 2,099 lm
FFLA/2 - 30 30W 4,214 lm 4,043 lm 3,873 lm
FFLA/2 - 50 50W 7,210 lm 6,918 lm 6,626 lm
FFLA/2 - 70 70W 10,260 lm 9,895 lm 9,526 lm
FFLA/2 - 90 90W 12,135 lm 11,680 lm 11,320 lm

Build Your Light

Family Model Color Temperature Mounts

FFLA/2
15 - 15w
30 - 3000K
KM - knuckle mount 1
30 - 30w
40 - 4000K
FM - flood mount 2
50 - 50w
50 - 5000K
YM - yoke mount
70 - 70w
3CCT - 3/4/5000K CCT & lumen selectable, photo control included
SF - slipfitter mount 3
90 - 90w
AM - arm mount 3

* Ordering information is for reference only. Some product configurations are not available. Please consult spec sheets for specific product availability and for further details.
Note. 1) included on 15w/30w/50w models; 2) included on 70w/90w models; 3) only available on 70w/90w models



Documents & Downloads

Spec & Sales Sheets

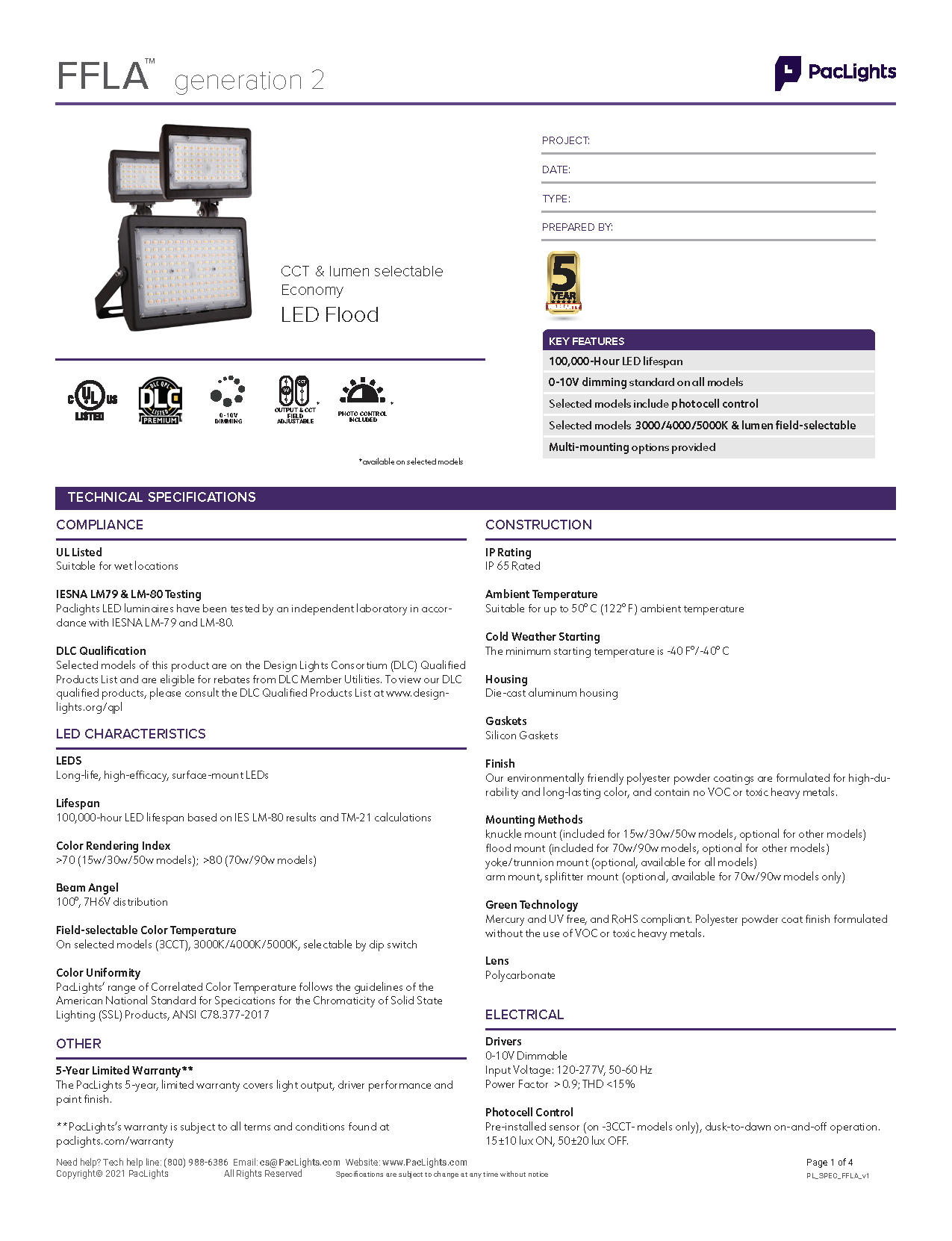

spec sheet
pdficonFFLA series (FFLA/2) Product Specification Sheet

Previous Generations:

pdficon(1st Generation) FFLA series (FFLA) Product Spec Sheet

* specifications are subject to change without notice.

Installation Guide

pdficonFFLA series (FFLA/2) Installation Guide

Previous Generations:

pdficon(1st Generation) FFLA series Installation Guide – with included knuckle mount
pdficon(1st Generation) FFLA series Installation Guide – with optional AC-FLA-TM30/50 trunnion mount
pdficon(1st Generation) FFLA series Installation Guide – with optional AC-FLA-FM30/50 flood mount

* installation instructions are subject to change without notice.

IES Files

Download IES Files:

FFLA/2-15 | FFLA/2-30 | FFLA/2-50 | FFLA/2-70 | FFLA/2-90

Previous Generations:

(1st Generation) FFLA15 | FFLA30 | FFLA50

*IES files might not cover all wattage and CCT options

DLC QPL
wdt_IDQPL Model No.Product IDVersionClassificationPrimary Use
196FFLA/2-15-30-H8-Z-[PC;Blank][SP10;SP20;Blank][M;Blank][KM;AM;YM;3M;FM;SF;Blank]CPL1E8TK56L4G5.1PremiumArchitectural Flood and Spot Luminaires
197FFLA/2-15-30-H8-Z-[PC;Blank][SP10;SP20;Blank][M;Blank][KM;AM;YM;3M;FM;SF;Blank]CPLX5K036EOKS5.1PremiumOutdoor Pole/Arm-Mounted Area and Roadway Luminaires
198FFLA/2-15-3CCT-H8-Z-[PC;Blank][SP10;SP20;Blank][M;Blank][KM;AM;YM;3M;FM;SF;Blank]CPL0EKW5MLKX65.1PremiumArchitectural Flood and Spot Luminaires
199FFLA/2-15-3CCT-H8-Z-[PC;Blank][SP10;SP20;Blank][M;Blank][KM;AM;YM;3M;FM;SF;Blank]CPL7OUZ4FFOKV5.1PremiumOutdoor Pole/Arm-Mounted Area and Roadway Luminaires
200FFLA/2-15-40-H8-Z-[PC;Blank][SP10;SP20;Blank][M;Blank][KM;AM;YM;3M;FM;SF;Blank]CPL13VOZEAN325.1PremiumArchitectural Flood and Spot Luminaires
201FFLA/2-15-40-H8-Z-[PC;Blank][SP10;SP20;Blank][M;Blank][KM;AM;YM;3M;FM;SF;Blank]CPLYZM6QDJTLW5.1PremiumOutdoor Pole/Arm-Mounted Area and Roadway Luminaires
202FFLA/2-15-50-H8-Z-[PC;Blank][SP10;SP20;Blank][M;Blank][KM;AM;YM;3M;FM;SF;Blank]CPLC46GN5BQV25.1PremiumOutdoor Pole/Arm-Mounted Area and Roadway Luminaires
203FFLA/2-15-50-H8-Z-[PC;Blank][SP10;SP20;Blank][M;Blank][KM;AM;YM;3M;FM;SF;Blank]CPLYEAJARAIRD5.1PremiumArchitectural Flood and Spot Luminaires
204FFLA/2-15-57-H8-Z-[PC;Blank][SP10;SP20;Blank][M;Blank][KM;AM;YM;3M;FM;SF;Blank]CPLO9VJH35UX15.1PremiumOutdoor Pole/Arm-Mounted Area and Roadway Luminaires
205FFLA/2-30-30-H8-Z-[PC;Blank][SP10;SP20;Blank][M;Blank][KM;AM;YM;3M;FM;SF;Blank]CPLCHPHYGAH6D5.1PremiumOutdoor Pole/Arm-Mounted Area and Roadway Luminaires
QPL Model No.Product IDVersionClassificationPrimary Use
