(DISCONTINUED) XHB series LED High Bays

THIS PRODUCT HAS BEEN DISCONTINUED

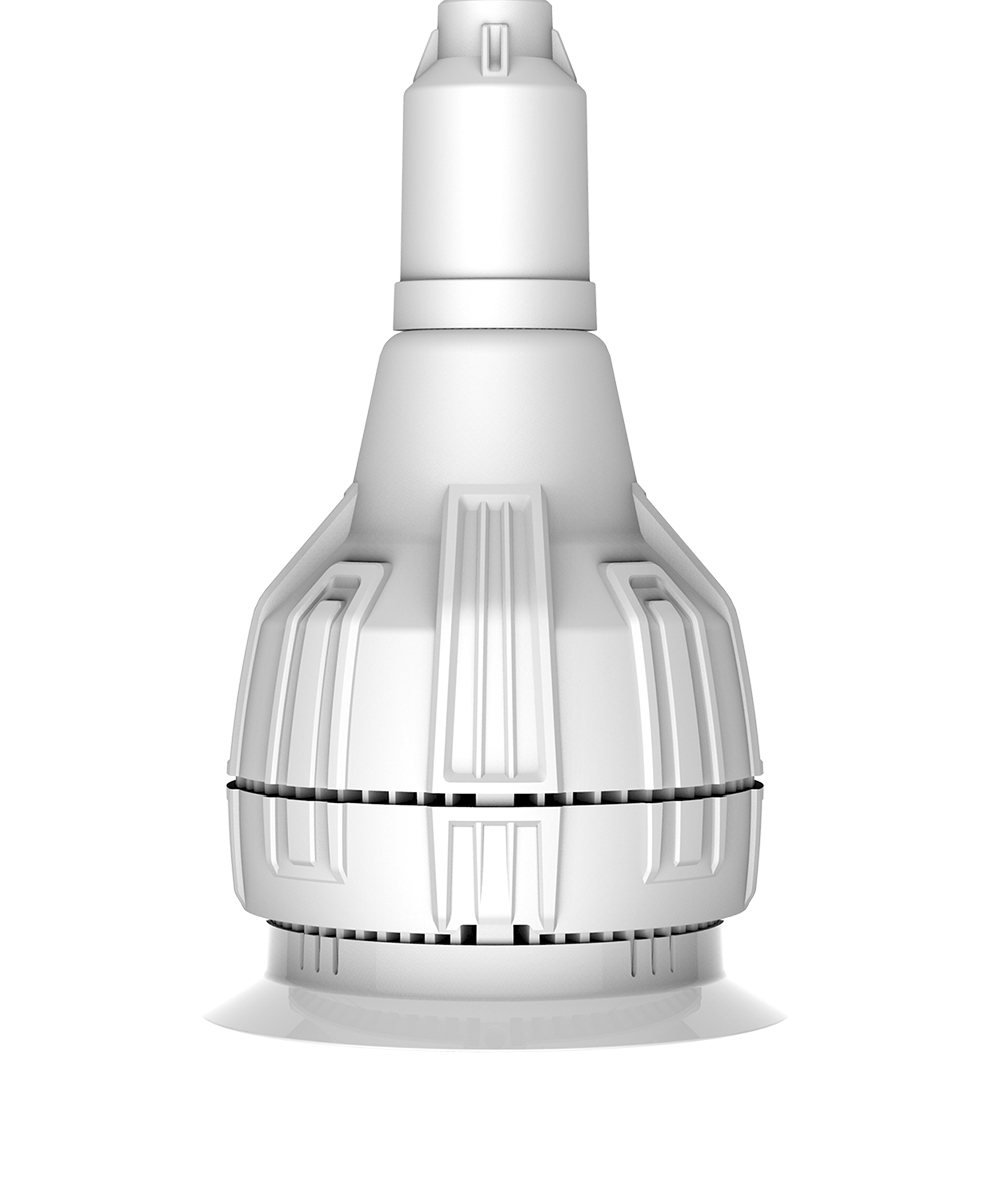

The XHB series LED High Bays are high performance and high efficient luminaires with advanced thermal management and unique architecture design. These luminaires are IP56 rated, dimmable. It’s offered with a wide range of mounting options, light color temperatures, and lighting controls. These High Bays can be used on applications like: Halls, Warehouses, Gyms, Sport.

– Limited Warranty: 5 years
– Efficacy: up to 141 LPW
– Lumen Output: 20,700 – 28,200 L
– Wattage: 150, 200 W

Price & Availability Need Help?

Features SPECIFICATIONS Downloads

Find Rebate Free Layout

From 20,700 lm to 28,200 lm

Specs & Variations

Model	LED Wattage	Lumen@5000K	Lumen@4000K	Lumen@3000K
XHB 150	150W	20,850 lm	20,700 lm	20,316 lm
XHB 200	200W	27,800 lm	27,600 lm	25,668 lm

* Lumen based on 120 degree light distribution models at 5000K CCT.

Build Your Light

Family	Model	Color Temperature	Housing Color	Beam Angle	Mount	Optional Adds-on
XHB
	150 - 150w	30 - 3000K	B - Black	120A - 120°	H - Hook/conduit (included)	S - PIR Occupancy Control
	200 - 200w	40 - 4000K	W - White	90A - 90° ²	M - Mogul (included)
		50 - 5000K		60A - 60° ²	U - Trunnion ²
		57 - 5700K ¹

* Ordering information is for reference only. Some product configurations are not available. Please consult spec sheets for specific product availability and for further details.
Note. 1) available for special order; 2) extra cost applies
