Features
DLC QPL v5.1 Listed
The DesignLights Consortium® (DLC) is a non-profit organization promotes high-quality, energy-efficient lighting products in collaboration with utilities and energy efficiency program members, manufacturers, lighting designers. DLC Listed high performing LED lighting products may qualify for rebates.
CCT and Wattage Selectable
Selected models can choose color temperature and wattage before installation with an integrated dip switch.

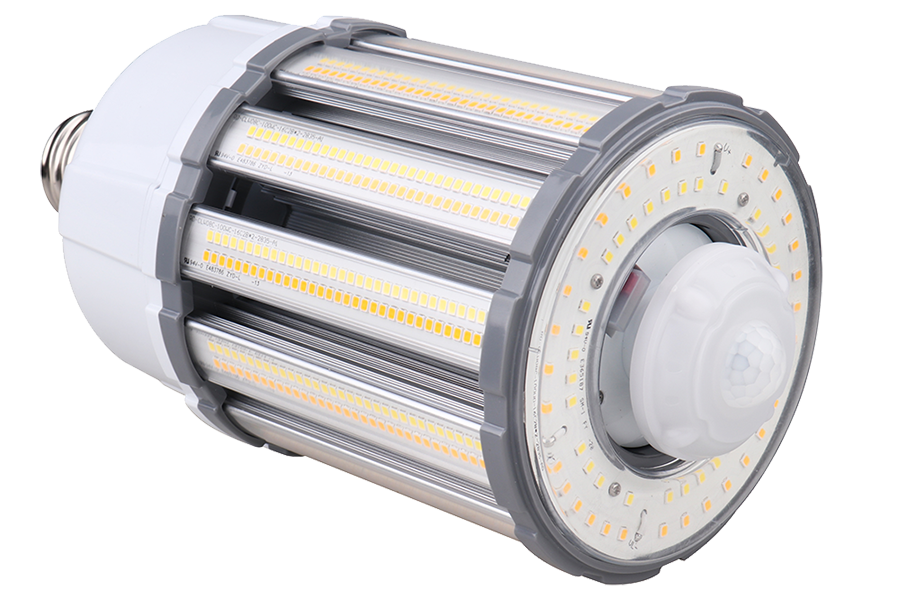

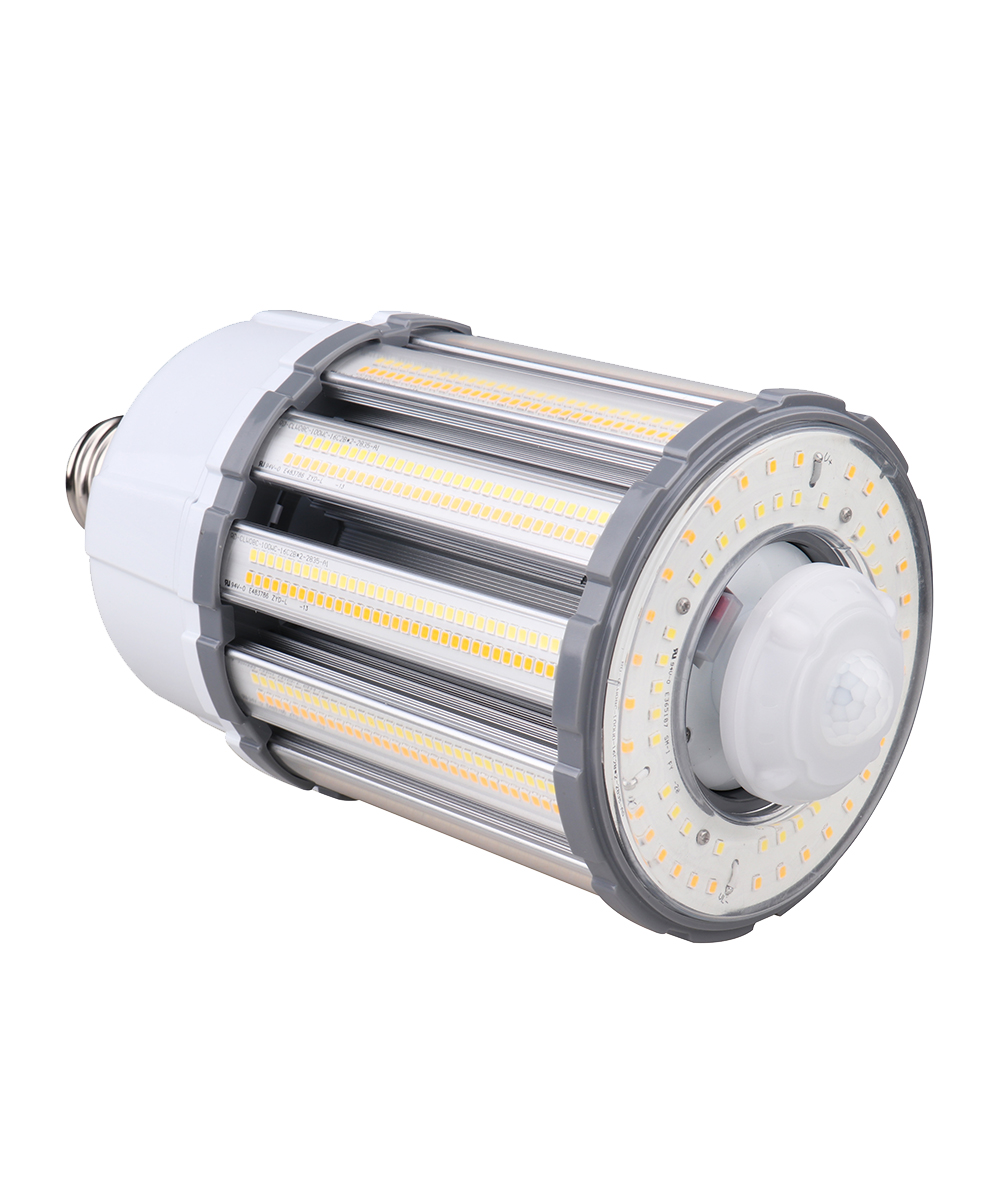

Optional Occupancy Control
Selected models have an AUX port for integrating individual,
bulb-level sensor controls. PacLights offers both MW (microwave) and PIR (passive
infrared) sensors for use with BW series LED bulbs. They let you customize and control
LED lighting, while reducing energy bills and qualifying you for additional rebate
dollars. Simply plug in the sensor to the top of the lamp and watch the savings roll in.
4KV/6KV surge protection
4KV/6KV surge protection standard on all models
Specs & Variations
| Model | LED Wattage | Lumen@5000K | Lumen@4000K | Lumen@3000K |
|---|---|---|---|---|
| BW/2-012 | 12w | 1,584 lm | 1,572 lm | 1,560 lm |
| BW/2-018 | 18w | 2,376 lm | 2,358 lm | 2,340 lm |
| BW/2-027 | 27w | 3,456 lm | 3,429 lm | 3,402 lm |
| BW/2-036 | 36w | 4,752 lm | 4,716 lm | 4,680 lm |
| BW/2-045 | 45w | 6,390 lm | 6,345 lm | 6,300 lm |
| BW/2-054 | 54w | 7,398 lm | 7,344 lm | 7,290 lm |
| BW/2-063 | 63w | 8,568 lm | 8,505 lm | 8,442 lm |
| BW/2-080 | 80w | 9,840 lm | 9,760 lm | 9,680 lm |
| BW/2-100 | 100w | 13,500 lm | 13,400 lm | 13,300 lm |
| BW/2-120 | 120w | 16,320 lm | 16,200 lm | 16,080 lm |
Build Your Light
| Family | Model | Color Temperature | Base | Options | |
BW/2 |  | | | | |
012 - 12w | 054 - 54w 1 | 30 - 3000K | M - Mogul Base (E39) | PIR - PIR control 3 | |
018 - 18w | 063 - 63w 1 | 40 - 4000K | E - Medium Base (E26) 2 | MW - Microwave Control 3 | |
027 - 27w 1 | 080 - 80w 1 | 50 - 5000K | X - EX39 | 480 - 480v capable 4 | |
036 - 36w 1 | 100 - 100w 1 | 3CCT - 3/4/5000K field-selectable | SP - secondary 10kV surge protector 4 | ||
045 - 45w 1 | 120 - 120w 1 |
* Ordering information is for reference only. Some product configurations are not available. Please consult spec sheets for specific product availability and for further details.
Note: 1) wattage field-selectable; 2) not appliable on 80w/100w/120w models; 3) only available on 80w/100w/120w models; 4) with external component.
Documents & Downloads

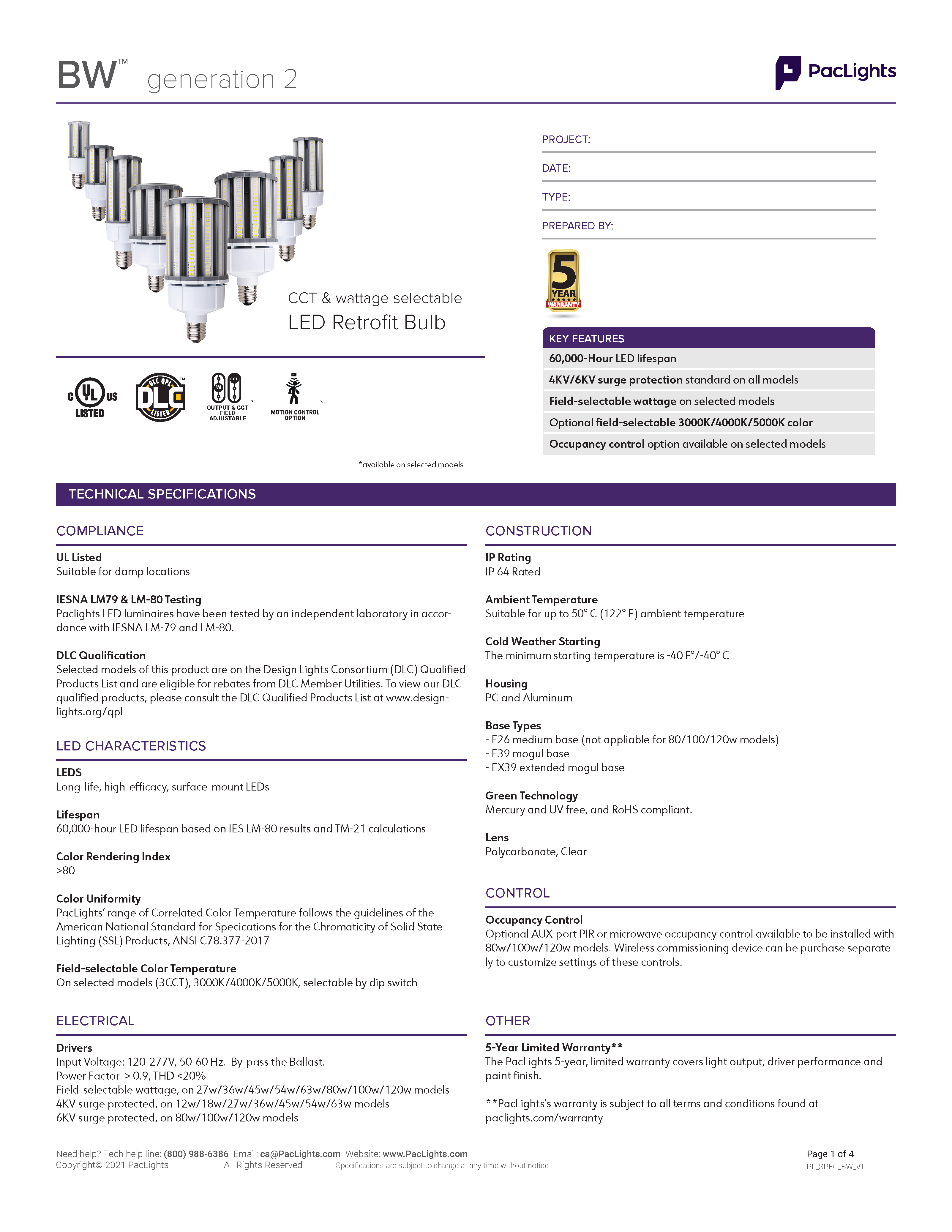

  BW series (BW/2) Product Specification Sheet |
Previous Generations:
(1st Generation) BW series Product Spec Sheet
* specifications are subject to change without notice.
BW series (BW/2; 2nd Generation) Installation Guide
* installation instructions are subject to change without notice.
| wdt_ID | QPL Model No. | Product ID | Version | Classification | Primary Use |
|---|---|---|---|---|---|
| 129 | BW/2-027-30-C-[M;X]-BL | PB6MXY57 | 5.1 | Standard | Replacement Lamps for Outdoor Pole/Arm-mounted Decorative Luminaires (Type B) |
| 130 | BW/2-027-3CCT-X-C-[M;X]-BL | PUODKECL | 5.1 | Standard | Replacement Lamps for Outdoor Pole/Arm-mounted Decorative Luminaires (Type B) |
| 131 | BW/2-027-40-C-[M;X]-BL | PVHAOYFD | 5.1 | Standard | Replacement Lamps for Outdoor Pole/Arm-mounted Decorative Luminaires (Type B) |
| 132 | BW/2-027-50-C-[M;X]-BL | P73J575V | 5.1 | Standard | Replacement Lamps for Outdoor Pole/Arm-mounted Decorative Luminaires (Type B) |
| 133 | BW/2-036-30-C-[M;X]-BL | PSHU8M89 | 5.1 | Standard | Replacement Lamps for Outdoor Pole/Arm-mounted Decorative Luminaires (Type B) |
| 134 | BW/2-036-3CCT-X-C-[M;X]-BL | P4I7VPGG | 5.1 | Standard | Replacement Lamps for Outdoor Pole/Arm-mounted Decorative Luminaires (Type B) |
| 135 | BW/2-036-40-C-[M;X]-BL | PL2GGM3Q | 5.1 | Standard | Replacement Lamps for Outdoor Pole/Arm-mounted Decorative Luminaires (Type B) |
| 136 | BW/2-036-50-C-[M;X]-BL | PMRET0EQ | 5.1 | Standard | Replacement Lamps for Outdoor Pole/Arm-mounted Decorative Luminaires (Type B) |
| 137 | BW/2-045-30-C-[M;X]-BL | PKMFBTW4 | 5.1 | Standard | Replacement Lamps for Outdoor Pole/Arm-mounted Decorative Luminaires (Type B) |
| 138 | BW/2-045-3CCT-X-C-[M;X]-BL | PNYFRHXI | 5.1 | Standard | Replacement Lamps for Outdoor Pole/Arm-mounted Decorative Luminaires (Type B) |
