Gen.2

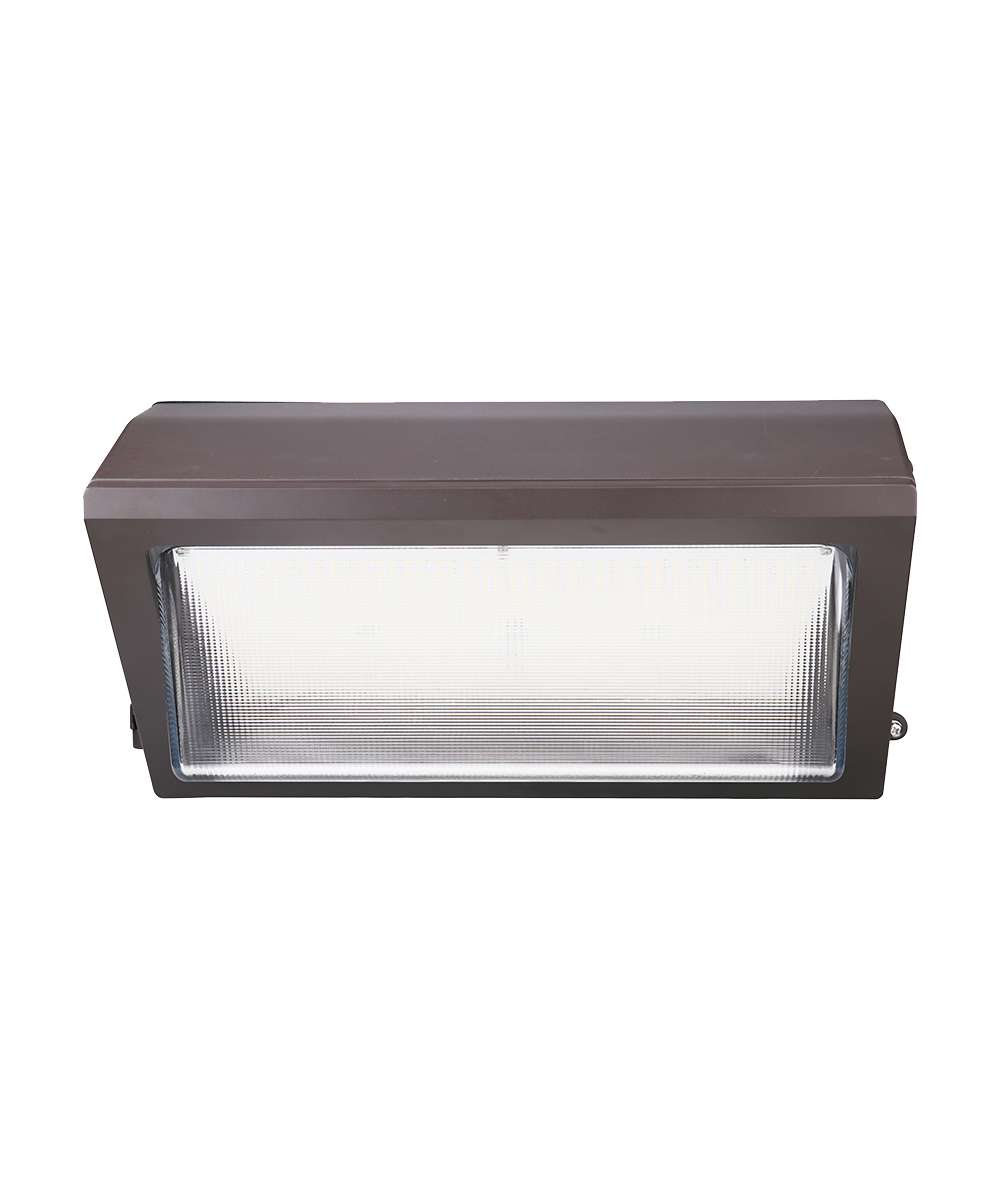

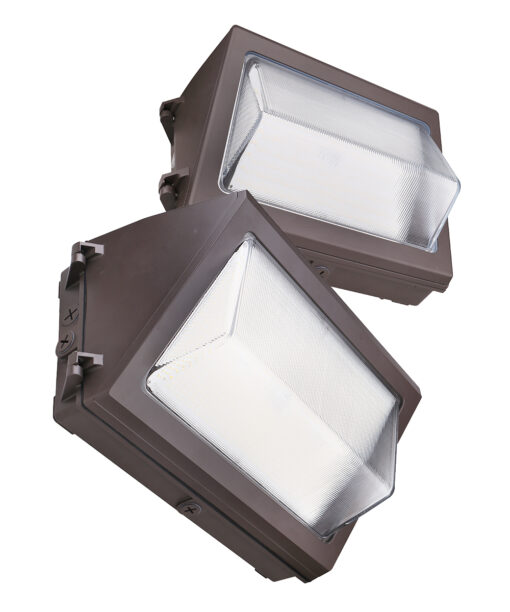

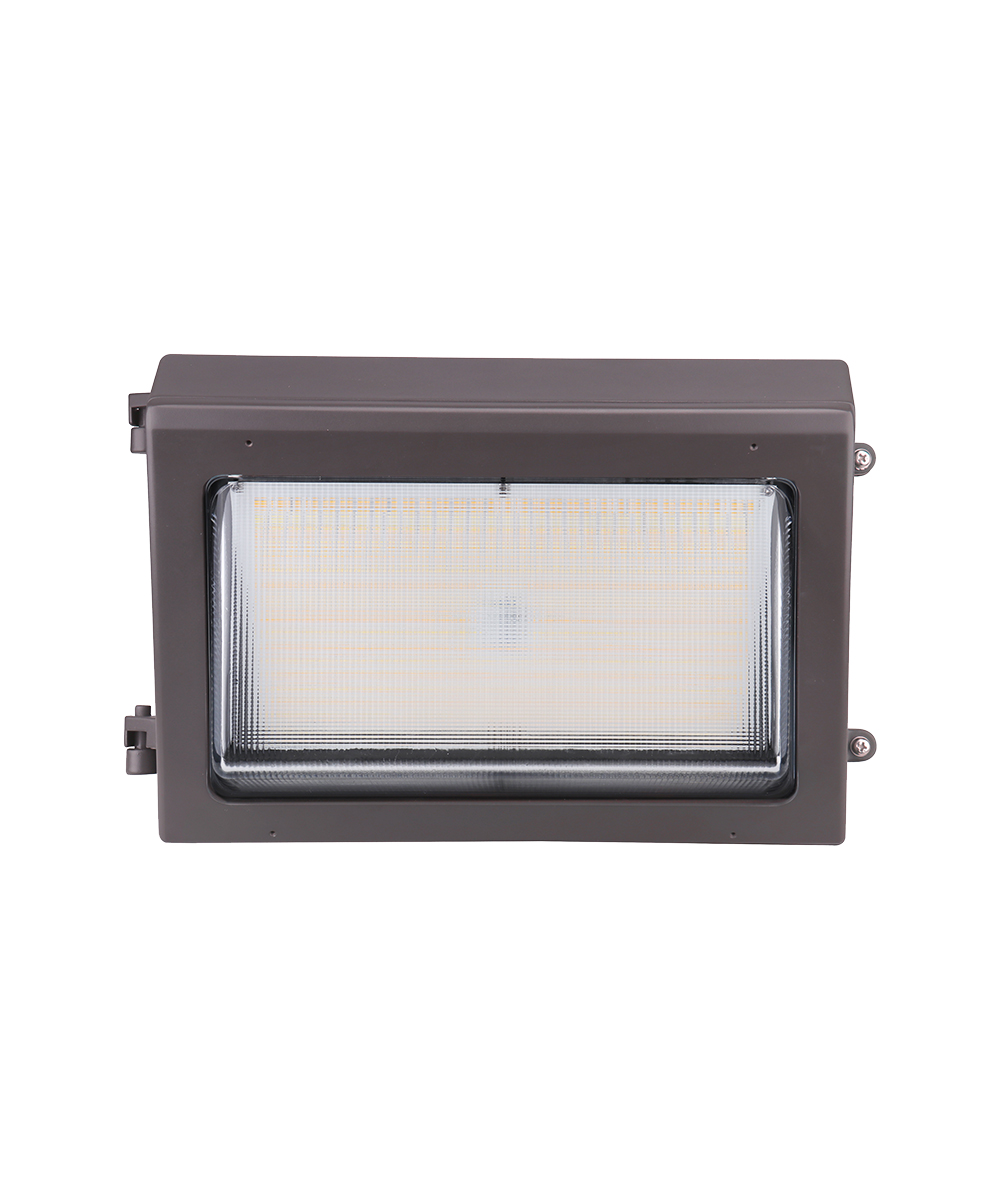

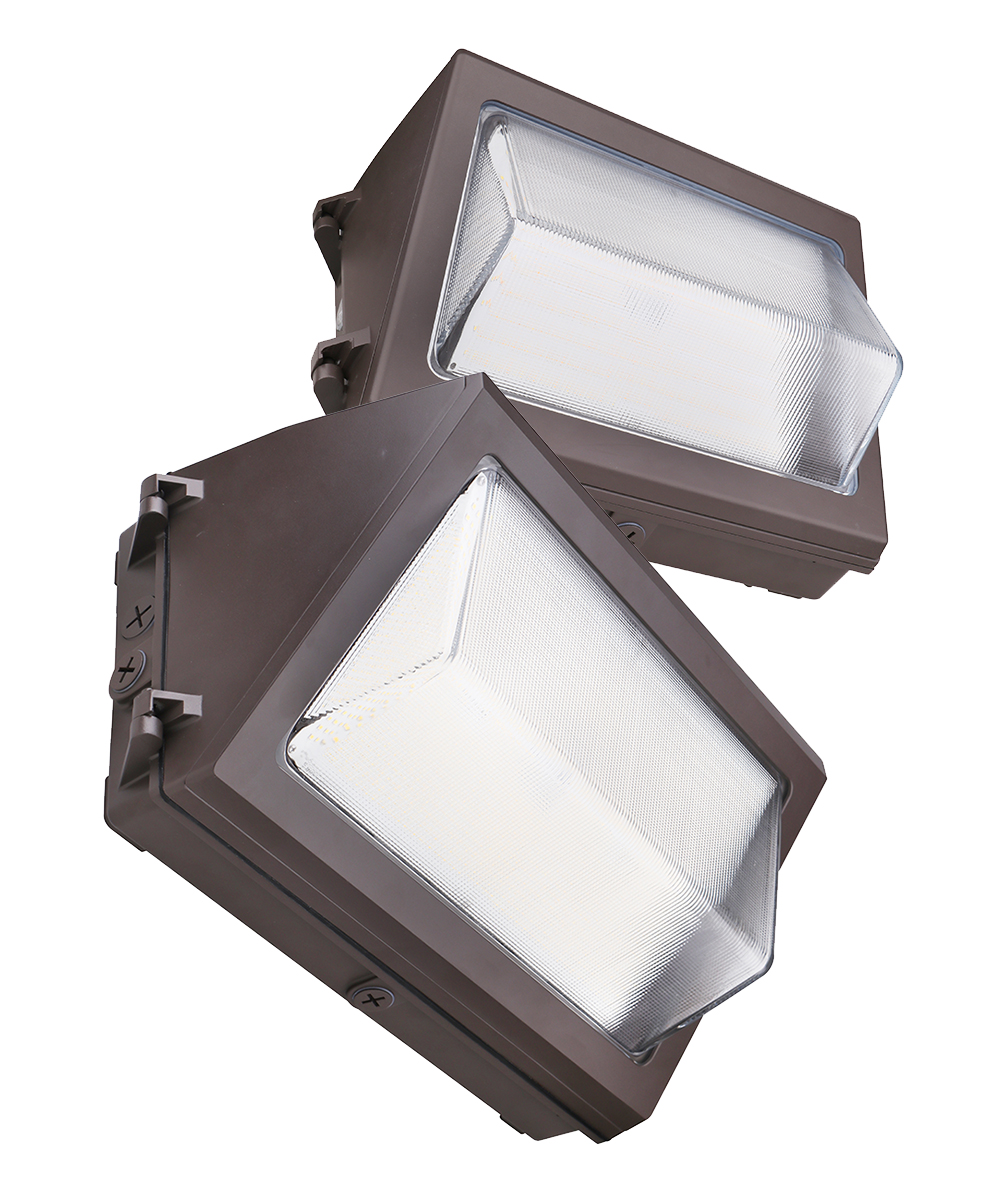

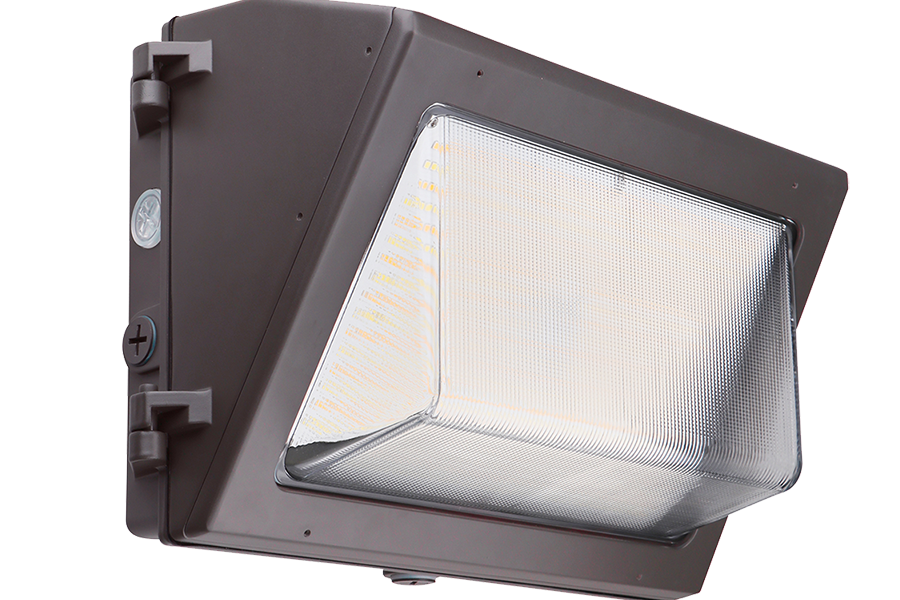

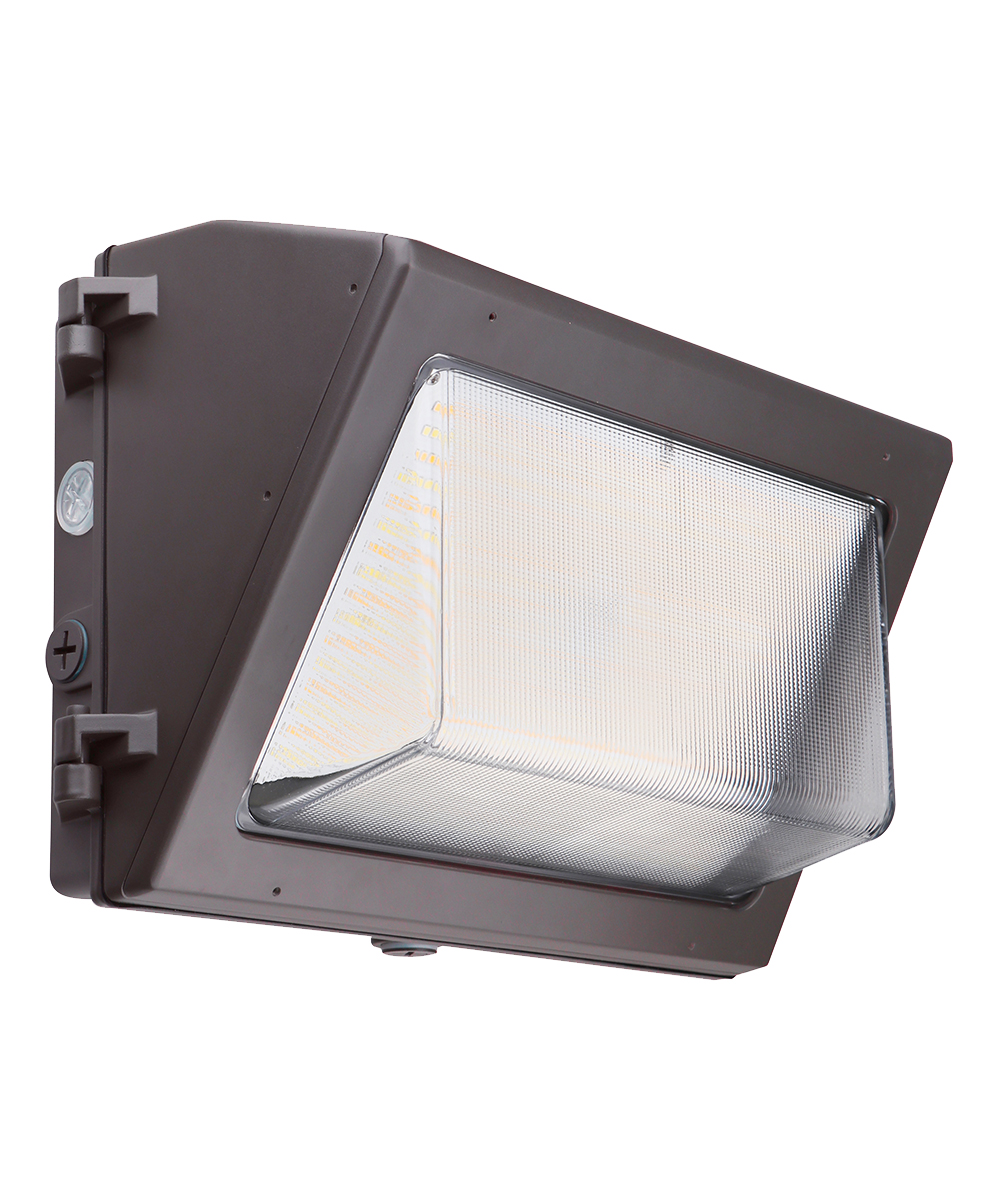

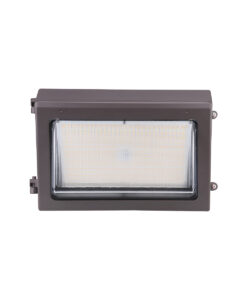

FWPT series LED Wallpacks

The FWPT series are IP65 rated LED wall light with glass refractor for all general wall mount applications. Now the 2nd generation (FWPT/2) offers color and lumen selectable models, also all models come standard with a built-in photo control, which offers more energy saving. 100w/120w/150w models have extended size option to replace an original fixture without repainting the wall. FWPT series wallpack is a combination of classic design and high efficacy.

– Limited Warranty: 5 years
– Efficacy: up to 150 LPW
– Lumen Output: 4,200 – 22,000 L
– Wattage: 29W – 150W
– Selected models 3000K/4000K/5000K field-selectable
– All models photo control included

UL Listed DLC QPL Premium

Price & Availability
Features SPECIFICATIONS Downloads
Find Rebate Free Layout

From 4,200 lm to 22,000 lm
SKU: FWPT/2 Categories: , Tag:

Features

DLC QPL v5.1 Listed

The DesignLights Consortium® (DLC) is a non-profit organization promotes high-quality, energy-efficient lighting products in collaboration with utilities and energy efficiency program members, manufacturers, lighting designers. DLC Listed high performing LED lighting products may qualify for rebates.

CCT Selectable

Selected models can choose color temperature before installation with an integrated dip switch.

Photo Control Included

All models include a photo control that is triggered to allow power supply when light levels fall below a specified value and then switch the supply off when the light level reaches another designated value.

IP 65 Rated

IP rated as “dust tight” and protected against water projected from a nozzle.



Specs & Variations

Model LED Wattage [email protected] [email protected] [email protected]
FWPT/2 - 029 29W 4,263 lm 4,234 lm 4,205 lm
FWPT/2 - 040 40W 5,840 lm 5,800 lm 5,760 lm
FWPT/2 - 060 60W 8,760 lm 8,700 lm 8,640 lm
FWPT/2 - 080 80W 12,000 lm 11,920 lm 11,840 lm
FWPT/2 - 100 100W 14,500 lm 14,400 lm 14,300 lm
FWPT/2 - 120 120W 17,760 lm 17,640 lm 17,520 lm
FWPT/2 - 150 150W 22,200 lm 22,050 lm 21,900 lm

Build Your Light

Family Model Color Temperature Options

FWPT/2
029 - 29w
30 - 3000K
SP - secondary surge protector
040 - 40w
40 - 4000K
MC - motion control (PIR)
060 - 60w
50 - 5000K
MW - motion control (microwave)
080 - 80w
3CCT - 3/4/5000K selectable
EM - emergency battery backup
100 - 100w
GS - glare shield
120 - 120w
WG - wireguard
100L - 100w extended size
120L - 120w extended size
150L - 150w extended size

* Ordering information is for reference only. Some product configurations are not available. Please consult spec sheets for specific product availability and for further details.

Case Studies



Documents & Downloads

Spec & Sales Sheets
spec sheet

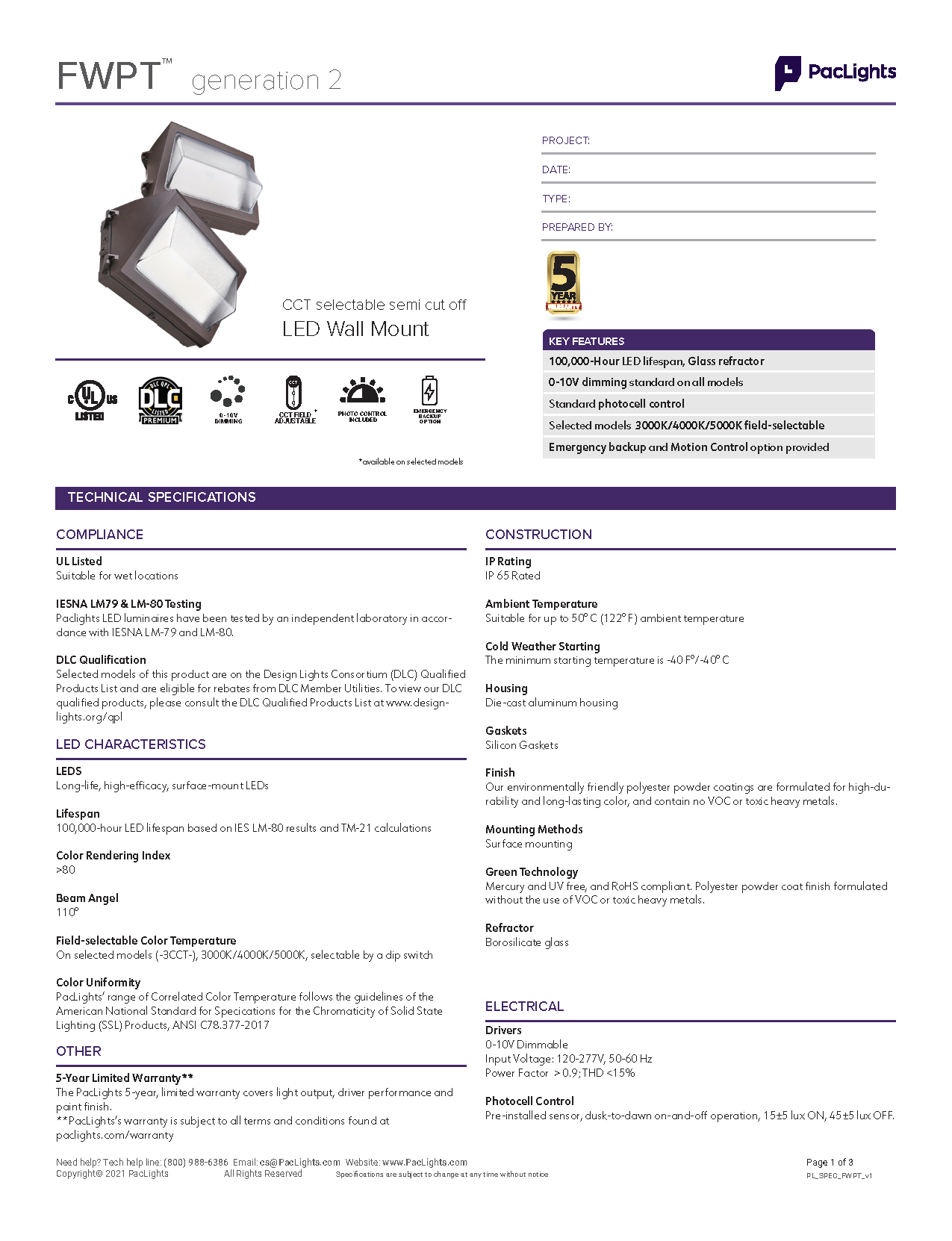

pdficonFWPT series (FWPT/2) Product Specification Sheet

Previous Generations:
pdficon(1st Generation) FWPT series Product Spec Sheet

* specifications are subject to change without notice.

Installation Guide

pdficonFWPT/2 series Installation Guide

Previous Generations:
pdficon(1st Generation) FWPT series Installation Guide
pdficon(1st Generation) FWPT series Installation Guide – Photocell Sensor

* installation instructions are subject to change without notice.

IES Files

Download IES Files:

FWPT/2-029 | FWPT/2-040 | FWPT/2-060 | FWPT/2-080 | FWPT/2-100 | FWPT/2-120 | FWPT/2-100L | FWPT/2-120L | FWPT/2-150L

Previous Generations:

(1st Generation) FWPT035 | FWPT055 | FWPT080 | FWPT100 | FWPT120

*IES files might not cover all wattage options

DLC QPL
wdt_IDQPL Model No.Product IDVersionClassificationPrimary Use
229FWPT/2-025-3CCT-FG-Z-[APC;APM;APR;DPC;DPR;DPR;MC;PR;Blank][SP;Blank][EM;Blank][DC;Blank]BPLLGZB3VGTZZ5.1PremiumOutdoor Non-Cutoff and Semi-Cutoff Wall-Mounted Area Luminaires
230FWPT/2-025-40-FG-Z-a[SP;Blank][EM;Blank][DC;Blank]BPLCLZ1MSUMTE5.1PremiumOutdoor Non-Cutoff and Semi-Cutoff Wall-Mounted Area Luminaires
231FWPT/2-029-3CCT-FG-Z-[APC;APM;APR;DPC;DPR;DPR;MC;PR;Blank][SP;Blank][EM;Blank][DC;Blank]BPLCM0CCVXLU05.1PremiumOutdoor Non-Cutoff and Semi-Cutoff Wall-Mounted Area Luminaires
232FWPT/2-040-3CCT-FG-Z-[APC;APM;APR;DPC;DPR;DPR;MC;PR;Blank][SP;Blank][EM;Blank][DC;Blank]BPL8JED035LDD5.1PremiumOutdoor Non-Cutoff and Semi-Cutoff Wall-Mounted Area Luminaires
233FWPT/2-040-40-FG-Z-a[SP;Blank][EM;Blank][DC;Blank]BPL84MBVTOMPS5.1PremiumOutdoor Non-Cutoff and Semi-Cutoff Wall-Mounted Area Luminaires
234FWPT/2-040-50-FG-Z-a[SP;Blank][EM;Blank][DC;Blank]BPL89QVYHXWGS5.1PremiumOutdoor Non-Cutoff and Semi-Cutoff Wall-Mounted Area Luminaires
235FWPT/2-060-3CCT-FG-Z-[APC;APM;APR;DPC;DPR;DPR;MC;PR;Blank][SP;Blank][EM;Blank][DC;Blank]BPLZCJSLHEFR35.1PremiumOutdoor Non-Cutoff and Semi-Cutoff Wall-Mounted Area Luminaires
236FWPT/2-060-40-FG-Z-a[SP;Blank][EM;Blank][DC;Blank]BPLIOCTLKJ2VB5.1PremiumOutdoor Non-Cutoff and Semi-Cutoff Wall-Mounted Area Luminaires
237FWPT/2-060-50-FG-Z-a[SP;Blank][EM;Blank][DC;Blank]BPL0A5RB0F9GI5.1PremiumOutdoor Non-Cutoff and Semi-Cutoff Wall-Mounted Area Luminaires
238FWPT/2-080-3CCT-FG-Z-[APC;APM;DPC;DPR;MC;PR;Blank][SP;Blank]BPLN58AVDUQWD5.1PremiumOutdoor Non-Cutoff and Semi-Cutoff Wall-Mounted Area Luminaires
QPL Model No.Product IDVersionClassificationPrimary Use
