Features
DLC QPL v5.1 Listed
The DesignLights Consortium® (DLC) is a non-profit organization promotes high-quality, energy-efficient lighting products in collaboration with utilities and energy efficiency program members, manufacturers, lighting designers. DLC Listed high performing LED lighting products may qualify for rebates.
Wattage/Color Selectable
Choose lumen/wattage output before, during, or after installation with a internal dip-switch. On selected models

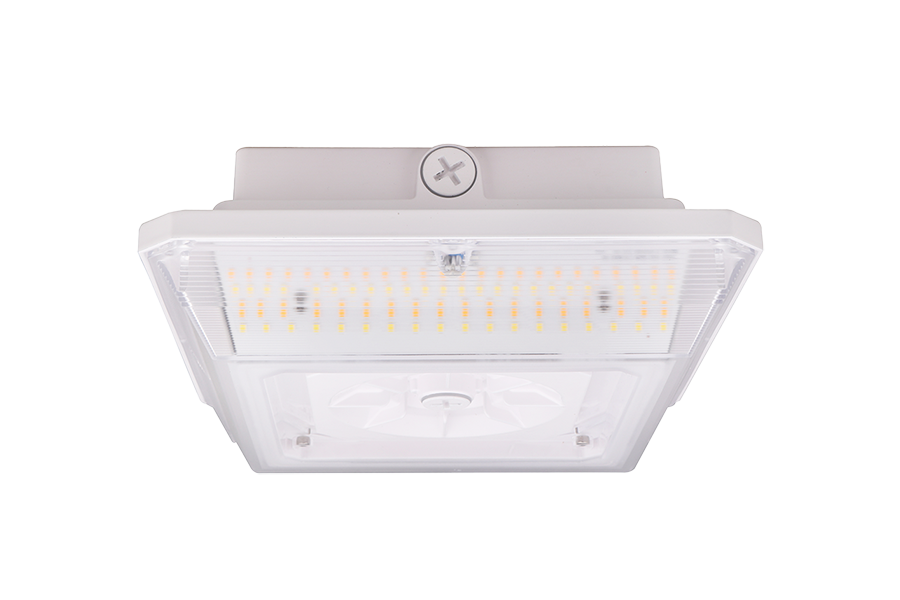

Eliminates Dark Ceiling
Precision engineered optics deliver 10% uplight, eliminating gloomy dark spots on the
ceiling and creating smooth and even light distribution throughout the space.
Controls Option
Bi-Level Dimming control maximizes energy savings and is simpler than ever by combining an occupancy sensor, a timer, customizable three-step dimming switches and a photo sensor to detect the amount of ambient light surrounding the fixture.
Specs & Variations
| MODEL | CCT | |||
| Selectable Wattage / Color | FCPG/3-60 | FCPG/3-45 | FCPG/3-30 | |
| FCPG/3-60/45/30 | 5000K | 8,400 lm | 6,210 lm | 4,140 lm |
| 4000K | 8,700 lm | 6,390 lm | 4,260 lm | |
| 3000K | 7,860 lm | 5,760 lm | 3,840 lm | |
| Selectable Wattage / Color | FCPG/3-90 | FCPG/3-75 | FCPG/3-60 | |
| FCPG/3-90/75/60 | 5000K | 12,060 lm | 10,050 lm | 8,400 lm |
| 4000K | 12,600 lm | 10,500 lm | 8,700 lm | |
| 3000K | 11,520 lm | 9,300 lm | 7,860 lm |
Build Your Light
| Family | Model | Color Temperature | Options |
FCPG/3 |  | | |
30 - 30w | 30 - 3000K | EM - Emergency battery backup | |
45 - 45w | 40 - 4000K | MCW - Bi-level Microwave motion and daylight on/off Dual Sensor control | |
60 - 60w | 50 - 5000K | MCP - Bi-level PIR motion and daylight on/off Dual Sensor control | |
75 - 75w | 30/40/50 - 3000/4000/5000K Selectable | MCD - Bi-level Microwave motion and Daylight Harvesting Dual Sensor control | |
90 - 90w | WBP - Wireless bluetooth networked control w/ PIR & daylight sensor (NLC) | ||
60/45/30 - 60/45/30w Selectable | WBM - Wireless bluetooth networked control w/ Microwave & daylight sensor (NLC) | ||
90/75/60 - 90/75/60w Selectable | WBN - Wireless bluetooth networked control (NLC) | ||
SP - Secondary Surge protector |
* Ordering information is for reference only. Some product configurations are not available. Please consult spec sheets for specific product availability and for further details.
Case Studies
Documents & Downloads
  FCPG series Gen.3 (FCPG/3) Product Specification Sheet |
Previous Generations:

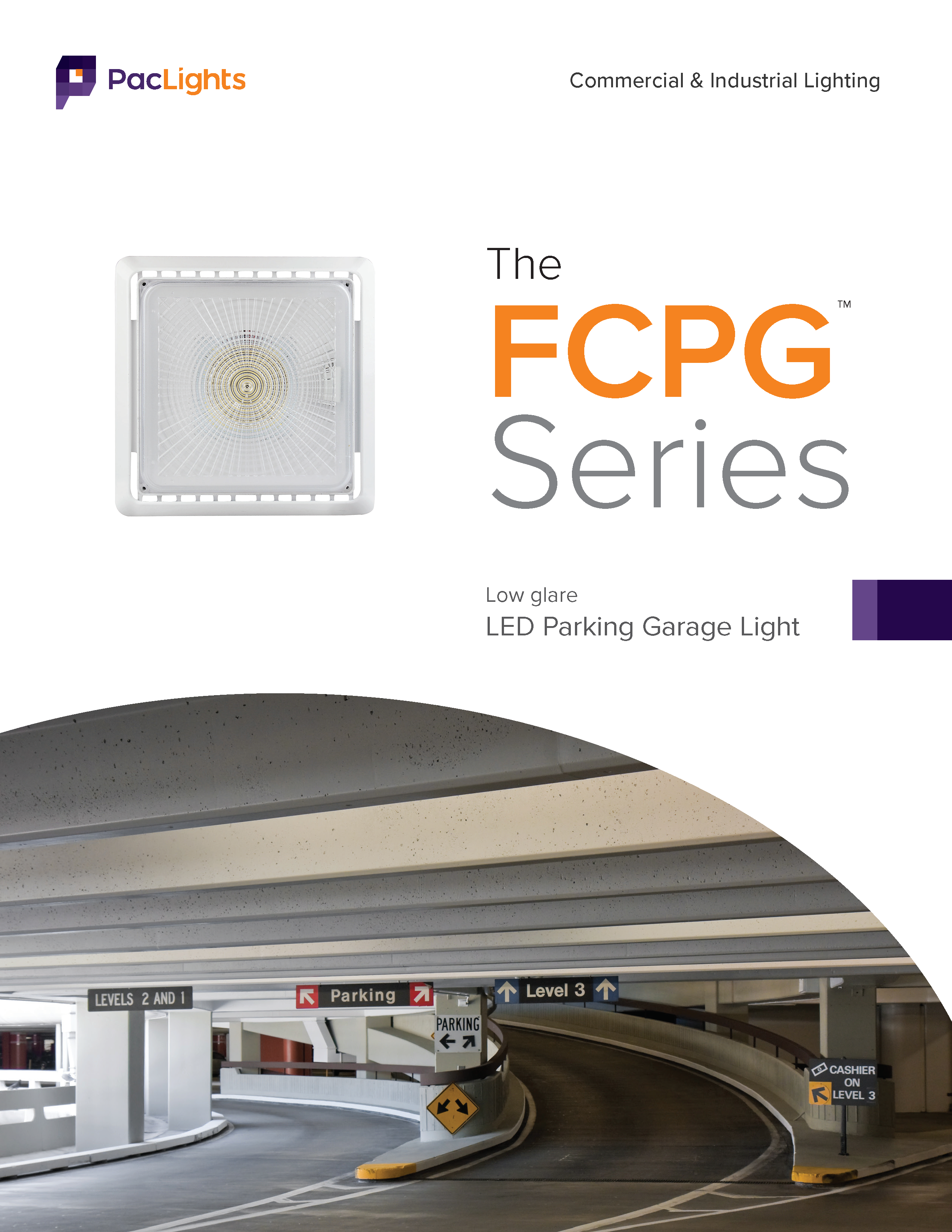

(2nd Generation) FCPG series Gen.2 (FCPG/2) Product Spec Sheet
(1st Generation) FCPG series Gen.1 (FCPG) Product Spec Sheet
* specifications are subject to change without notice.
FCPG series Gen.3 (FCPG/3) Installation Guide
Previous Generations:
(2nd Generation) FCPG series Gen.2 (FCPG/2) Installation Guide
(1st Generation) FCPG series Gen.1 (FCPG) Installation Guide
* installation instructions are subject to change without notice.
| wdt_ID | GENERATION | SKU | WATTAGE | CCT | IES File |
|---|---|---|---|---|---|
| 294 | 3rd (Latest) | FCPG/3-30-30 | 30 | 3000K | Download IES |
| 295 | 3rd (Latest) | FCPG/3-30-40 | 30 | 4000K | Download IES |
| 296 | 3rd (Latest) | FCPG/3-30-50 | 30 | 5000K | Download IES |
| 297 | 3rd (Latest) | FCPG/3-45-30 | 45 | 3000K | Download IES |
| 298 | 3rd (Latest) | FCPG/3-45-40 | 45 | 4000K | Download IES |
| 299 | 3rd (Latest) | FCPG/3-45-50 | 45 | 5000K | Download IES |
| 300 | 3rd (Latest) | FCPG/3-60-30 | 60 | 3000K | Download IES |
| 301 | 3rd (Latest) | FCPG/3-60-40 | 60 | 4000K | Download IES |
| 302 | 3rd (Latest) | FCPG/3-60-50 | 60 | 5000K | Download IES |
| 303 | 3rd (Latest) | FCPG/3-75-30 | 75 | 3000K | Download IES |
| GENERATION | SKU | WATTAGE | CCT | IES File |
*IES files might not cover all wattage options
| wdt_ID | QPL Model No. | Product ID | Version | Classification | Primary Use |
|---|---|---|---|---|---|
| 181 | FCPG/3-45-30/40/50 | S-40FR0P | 5.1 | Premium | Parking Garage Luminaires |
| 182 | FCPG/3-45-30/40/50-abcWBSP1D | S-4RC9VJ | 5.1 | Premium | Parking Garage Luminaires |
| 183 | FCPG/3-60-30/40/50-abcWBSP1D | S-XG4MLL | 5.1 | Premium | Parking Garage Luminaires |
| 184 | FCPG/3-75-30/40/50 | S-SBVCFR | 5.1 | Premium | Parking Garage Luminaires |
| 185 | FCPG/3-75-30/40/50-abcWBSP1D | S-F4D1RY | 5.1 | Premium | Parking Garage Luminaires |
| 186 | FCPG/3-90-30/40/50 | S-L4R5V4 | 5.1 | Premium | Parking Garage Luminaires |
| 187 | FCPG/3-90-30/40/50-abcWBSP1D | S-SS9TSY | 5.1 | Premium | Parking Garage Luminaires |
| 188 | FCPG/2-025-30-S-Z-[SP;Blank][MC;Blank]A | PLGFENDR4DQP | 5.1 | Premium | Parking Garage Luminaires |
| 189 | FCPG/2-025-40-S-Z-[SP;Blank][MC;Blank]A | PLEN2XF2ZKN3 | 5.1 | Premium | Parking Garage Luminaires |
| 190 | FCPG/2-025-50-S-Z-[SP;Blank][MC;Blank]A | PLT1GUYUSYLH | 5.1 | Premium | Parking Garage Luminaires |
