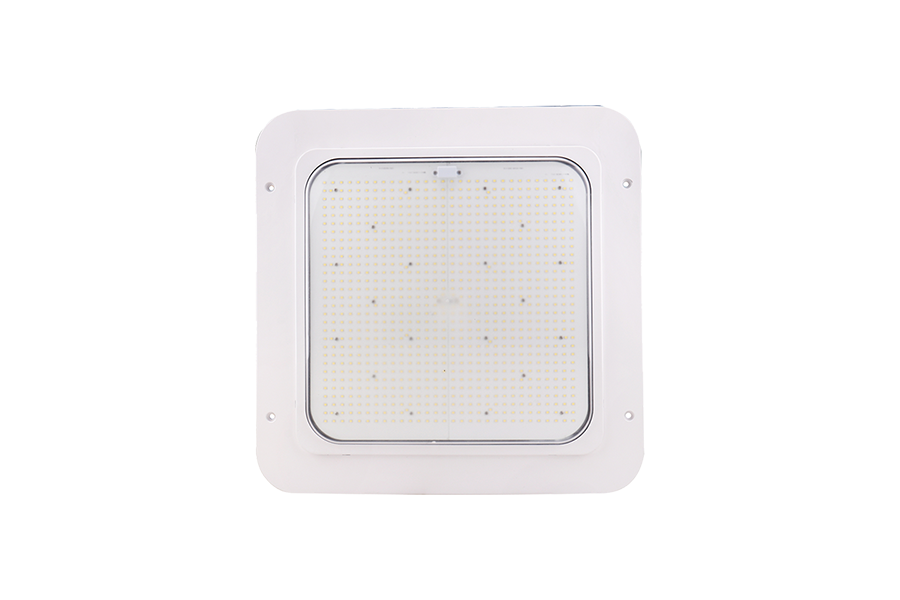

FCPA series LED Canopy Lights

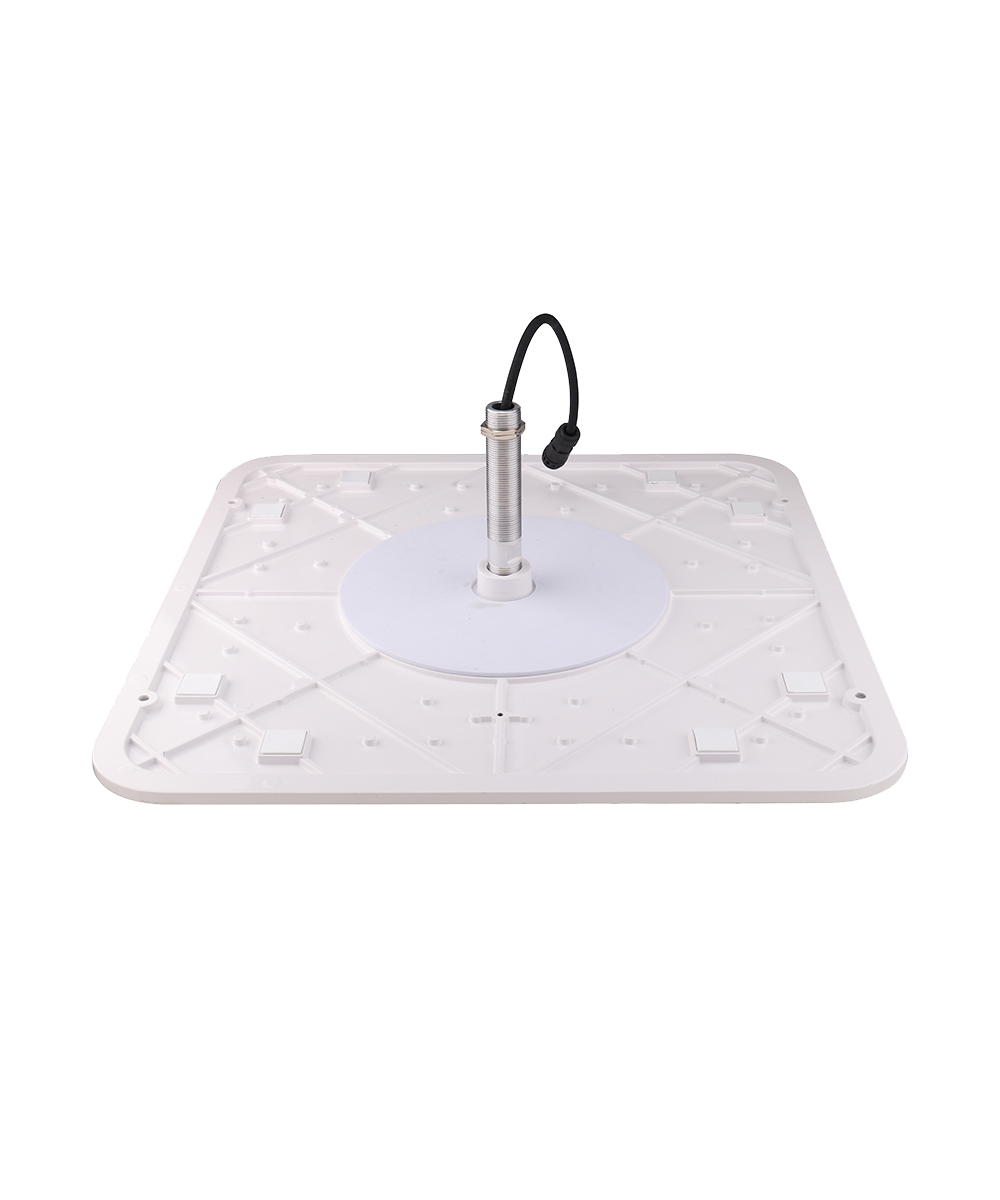

FCPA series LED Canopy Lights - Image 2

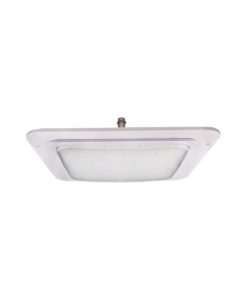

FCPA series LED Canopy Lights - Image 3

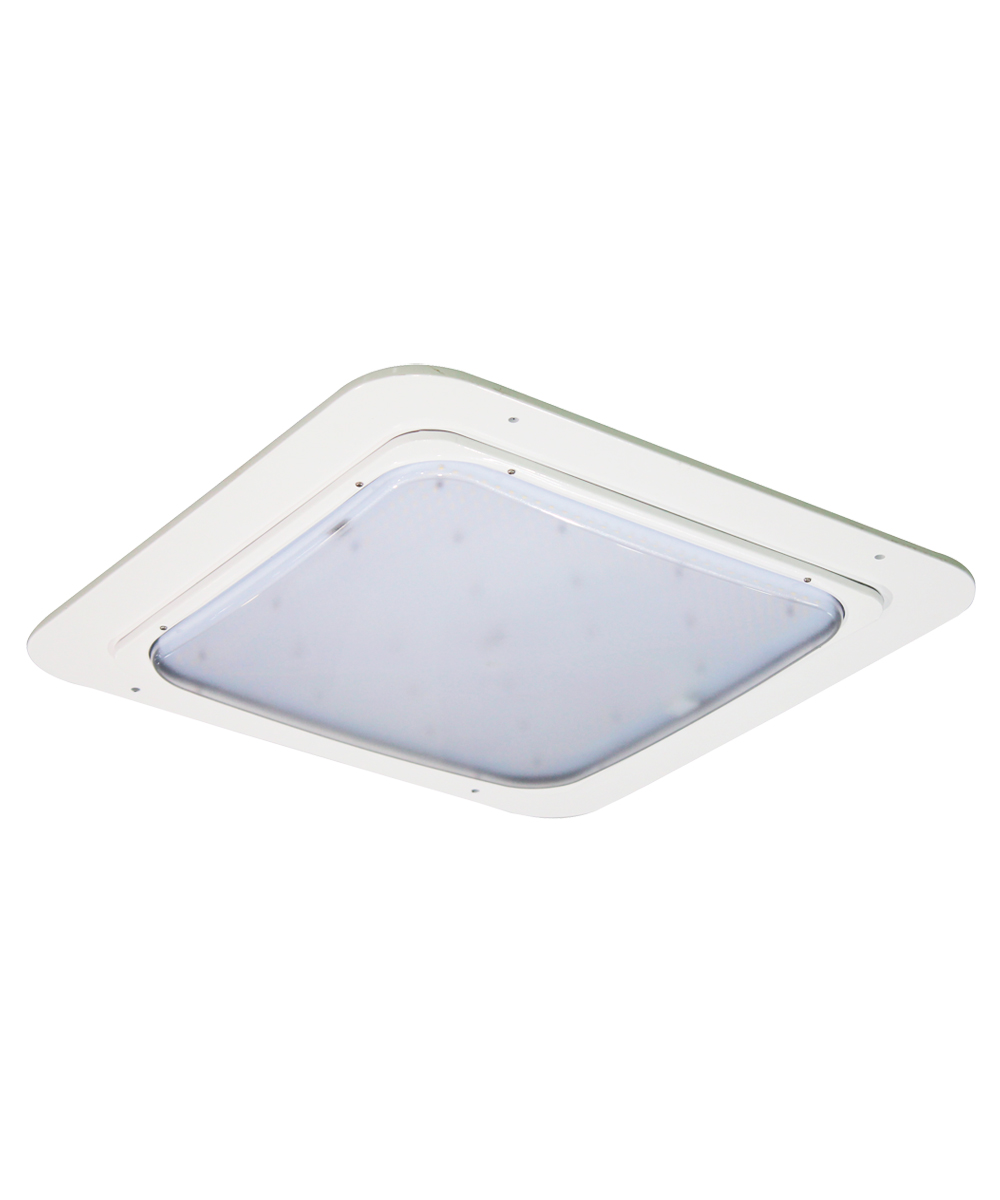

FCPA series LED Canopy Lights - Image 4

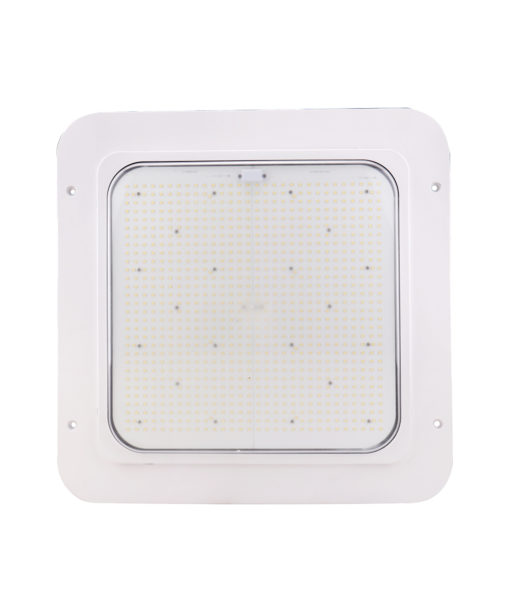

FCPA series LED Canopy Lights - Image 5

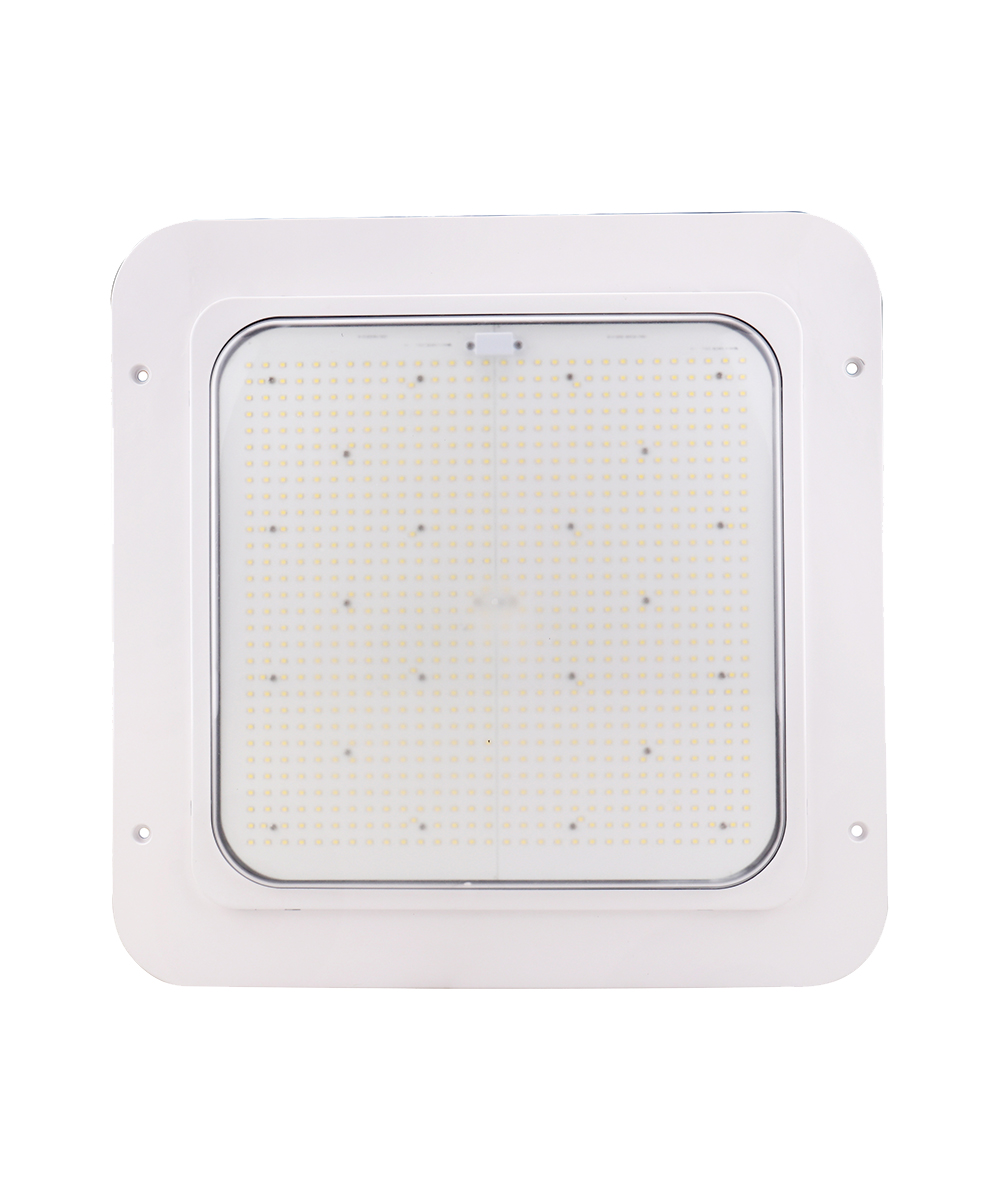

FCPA series LED Canopy Lights - Image 6

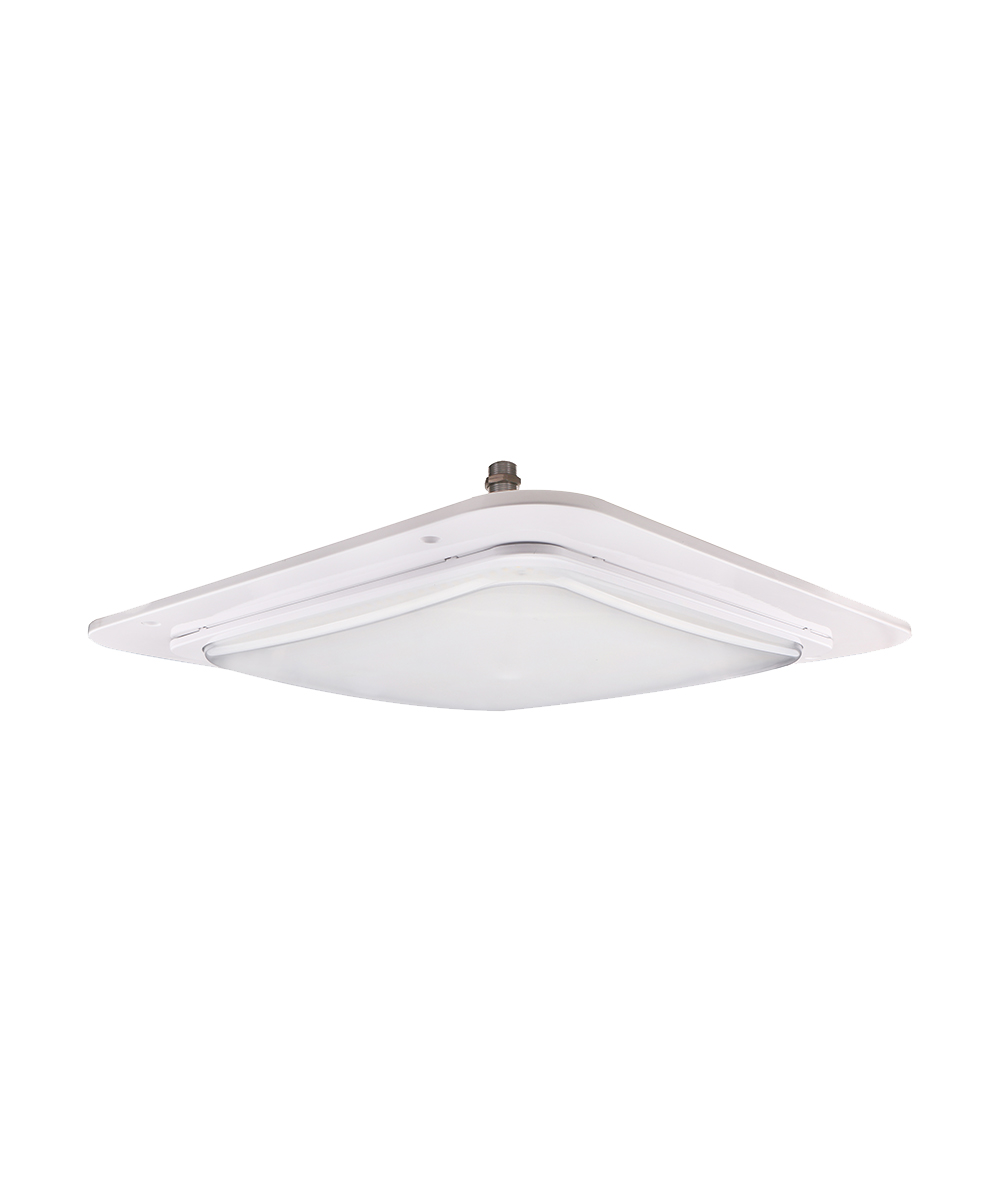

FCPA series LED Canopy Lights - Image 7

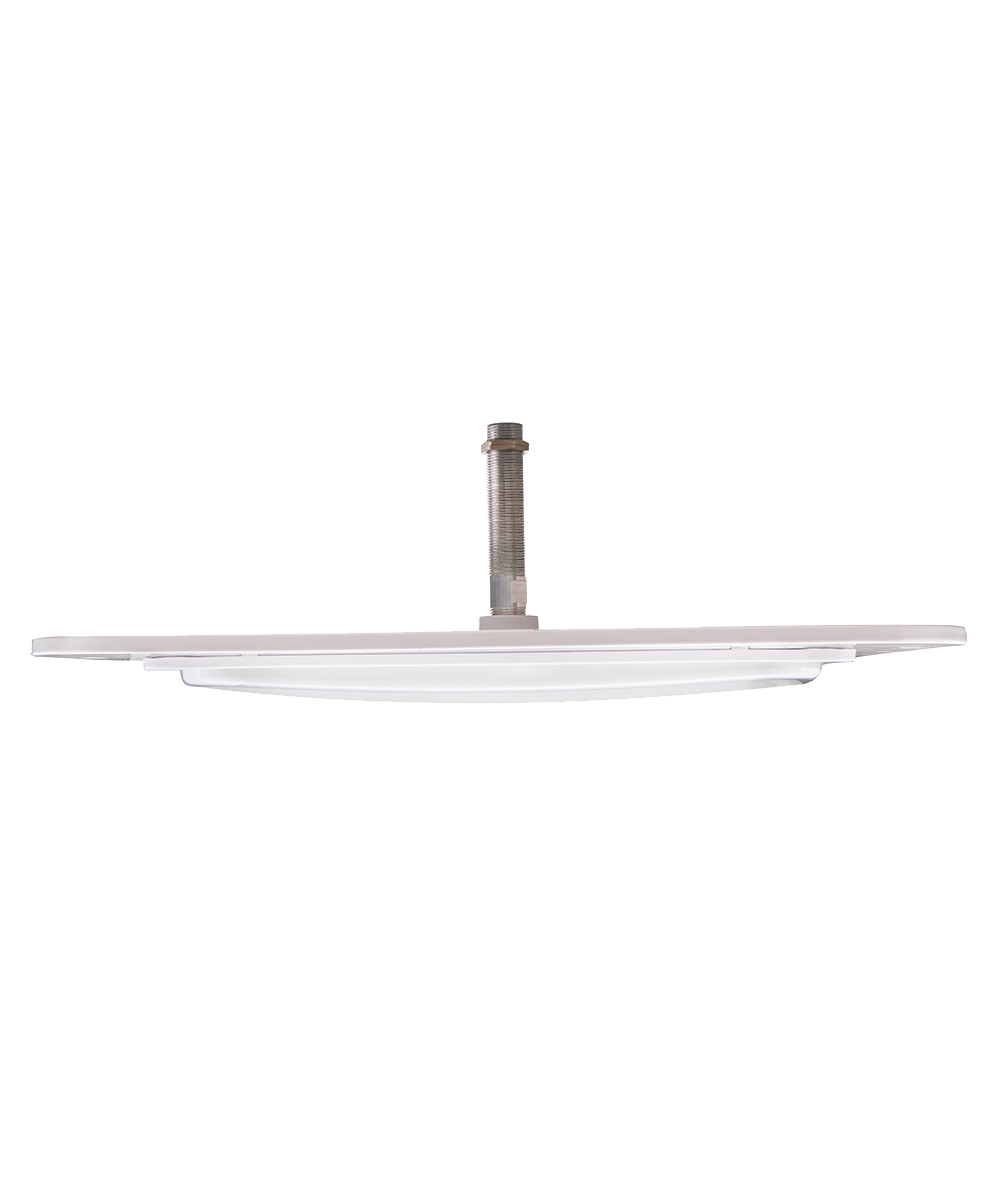

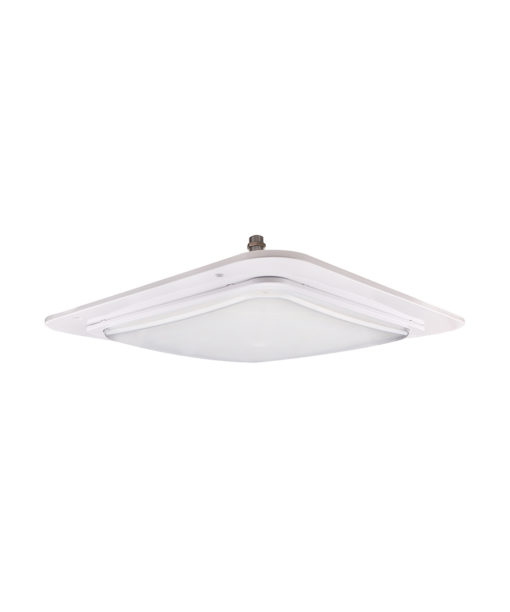

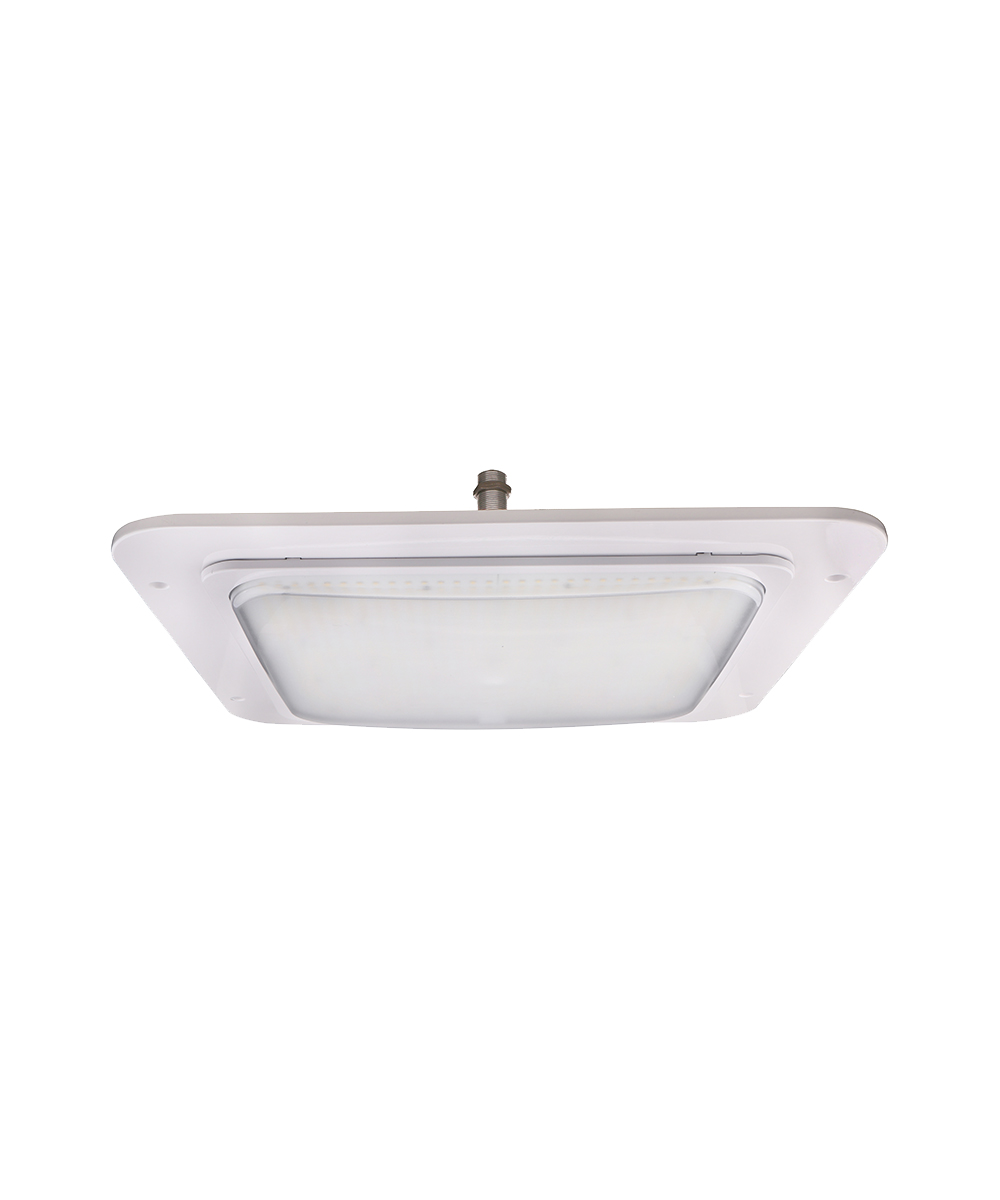

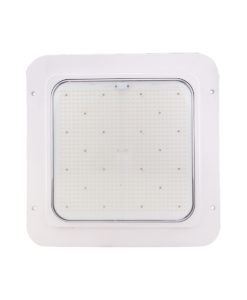

FCPA series LED Canopy Lights

FCPA fixture family is designed for illuminating gas canopies, with mounting heights of 10’ or greater. FCPA is one of the lowest profile gas canopy luminaire on the market(less than 1-1/2″). The driver housing is located above the gas canopy. This attractive fixture is available in multiple lumen packages to meet most requirements. With its high performance LED optics, the FCPA fixture family delivers outstanding performance in new or retrofit applications.

– Limited Warranty: 5 years
– Efficacy: up to 145 LPW
– Lumen Output: 21,000 – 35,000 L
– Wattage: 150, 180, 240 W

UL Listed DLC QPL Premium

Features SPECIFICATIONS Downloads
Request a Quote Free Lighting Layout

From 21,000 lm to 35,000 lm
SKU: FCPA Categories: , Tag:

Features

DLC QPL v5.1 Listed

The DesignLights Consortium® (DLC) is a non-profit organization promotes high-quality, energy-efficient lighting products in collaboration with utilities and energy efficiency program members, manufacturers, lighting designers. DLC Listed high performing LED lighting products may qualify for rebates.

New install or Retrofit

The FCPA fixture family comes with extended size housing, delivers outstanding performance in new or retrofit applications

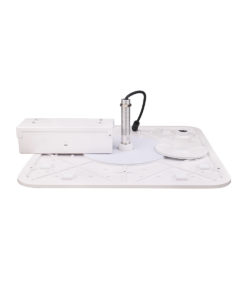

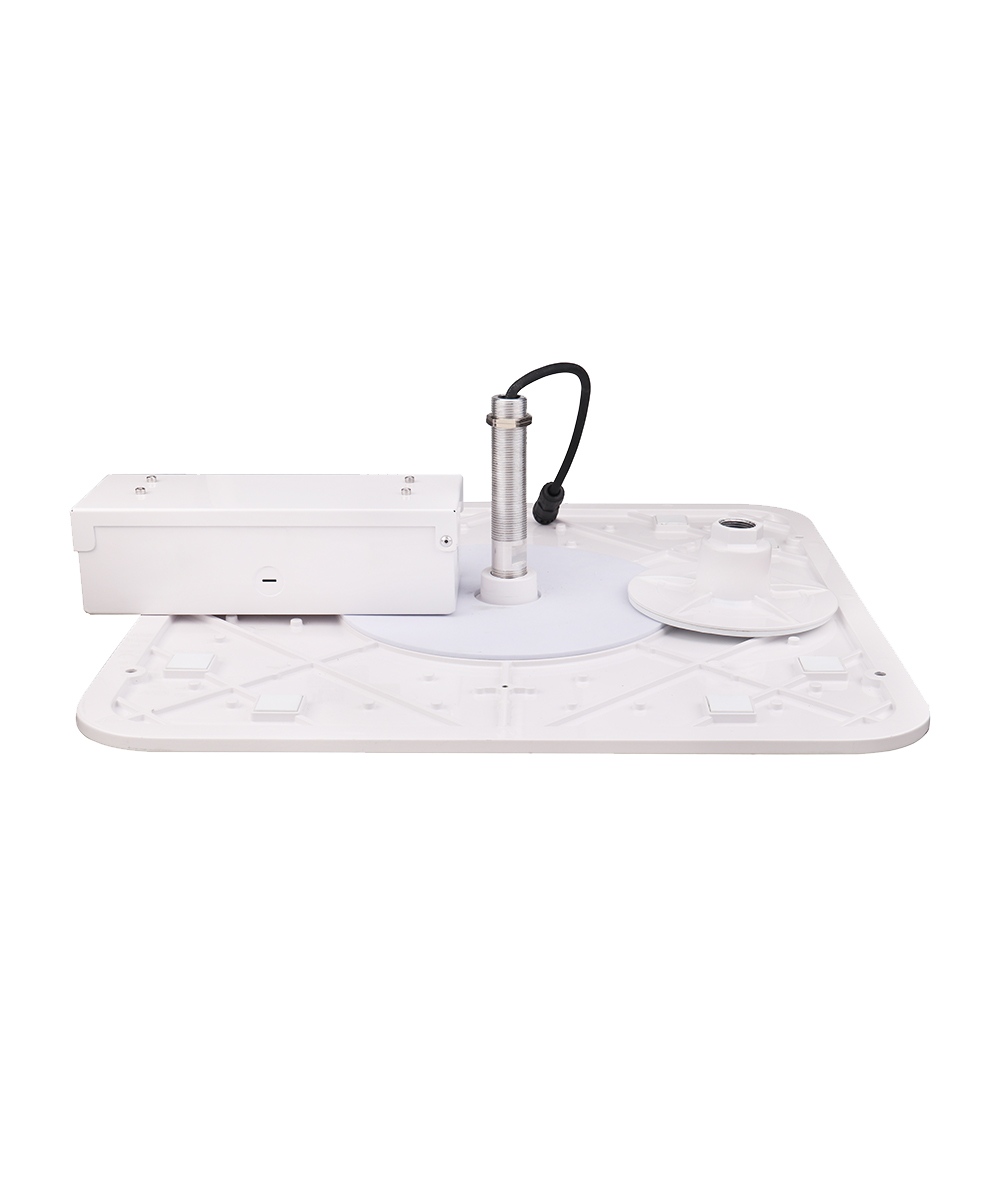

External Driver Box

The driver housing is located above the gas canopy, makes FCPA as one of the lowest profile gas canopy luminaire on the market(less than 1-1/2″)

IP 65 Rated

IP rated as “dust tight” and protected against water jet.



Specs & Variations

Model LED Wattage Lumen@5000K Lumen@4000K
FCPA/2 - 150 150W 21,057 lm 21,043 lm
FCPA/2 - 180 180W 25,420 lm 25,403 lm
FCPA/2 - 240 240W 34,776 lm 34,448 lm

* Lumen at 5000K.

Build Your Light

Family Model Color Temperature

FCPA/2
150 - 150w
40 - 4000K
180 - 180w
50 - 5000K
240 - 240w
57 - 5700K 1

* Ordering information is for reference only. Some product configurations are not available. Please consult spec sheets for specific product availability and for further details.
1) available for special order



Documents & Downloads

Spec & Sales Sheets
spec sheet

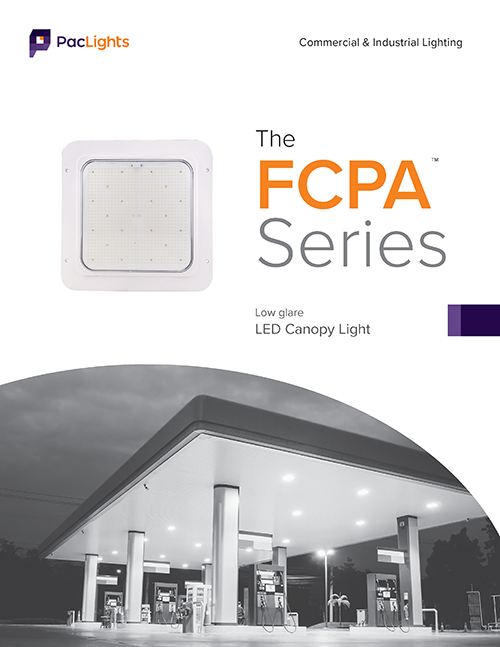

pdficonFCPA series (FCPA/2) Product Specification Sheet

Previous Generations:

pdficon(1st Generation) FCPA series Product Spec Sheet

* specifications are subject to change without notice.

Download IES Files:

FCPA/2-150 | FCPA/2-180 | FCPA/2-240

Previous Generations:

FCPA150 | FCPA180 | FCPA240

wdt_ID QPL Model No. Product ID Version Classification Primary Use
161FCPA/2-150-40-A-Z-SAPLE6NFOXSREV5.1PremiumFuel Pump Canopy Luminaires
162FCPA/2-150-50-A-Z-SAPLN6W2KGS8KA5.1PremiumFuel Pump Canopy Luminaires
163FCPA/2-150-57-A-Z-SAPLKTFWVYA5E25.1PremiumFuel Pump Canopy Luminaires
164FCPA/2-180-40-A-Z-SAPLZ2ZYNA1HWY5.1PremiumFuel Pump Canopy Luminaires
165FCPA/2-180-50-A-Z-SAPLVMEVSZ54XU5.1PremiumFuel Pump Canopy Luminaires
166FCPA/2-180-57-A-Z-SAPL2S80U98CRN5.1PremiumFuel Pump Canopy Luminaires
167FCPA/2-240-40-A-Z-SAPLB7ILVVZQHO5.1PremiumFuel Pump Canopy Luminaires
168FCPA/2-240-50-A-Z-SAPL9XT9KHSHTO5.1PremiumFuel Pump Canopy Luminaires
169FCPA/2-240-57-A-Z-SAPLKUSGLUFUB85.1PremiumFuel Pump Canopy Luminaires
