Gen.2

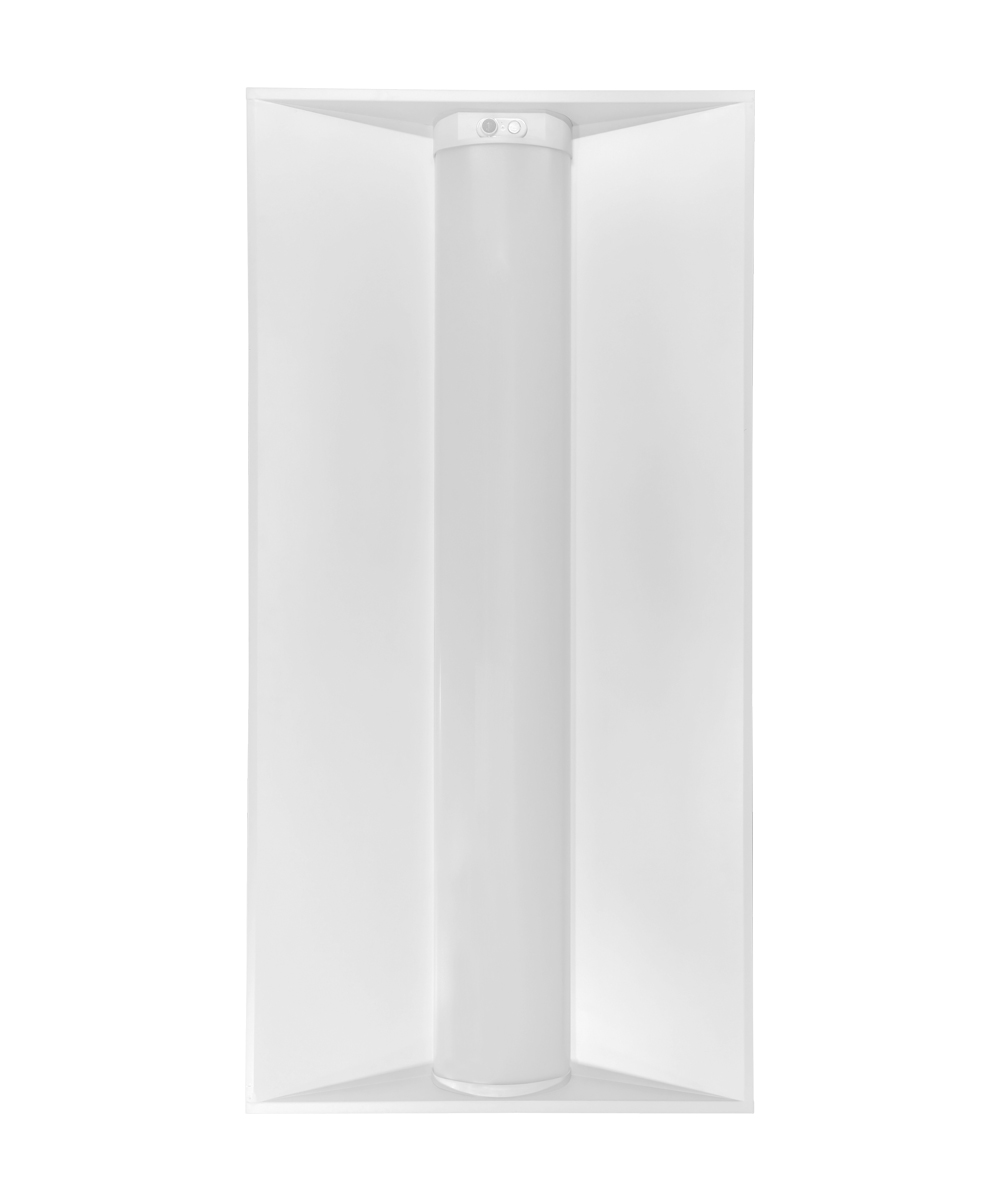

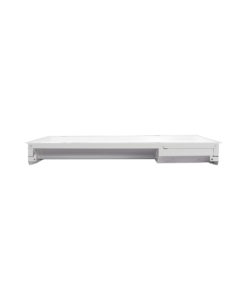

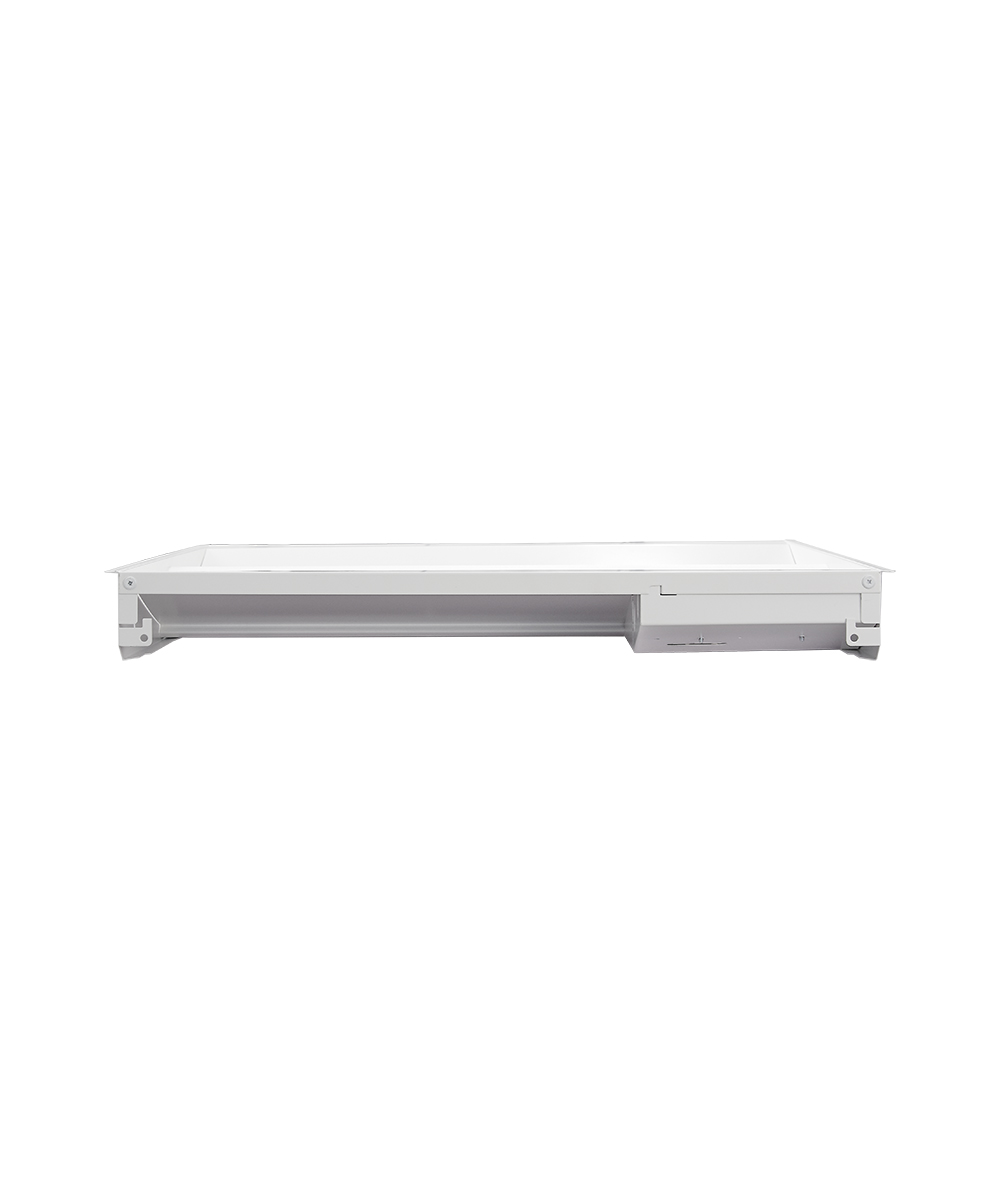

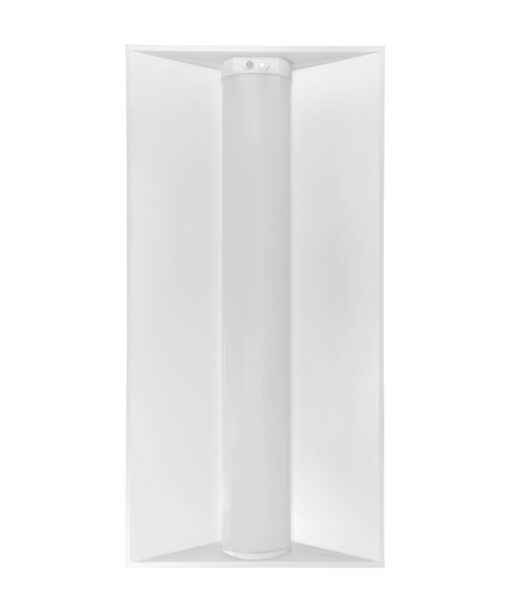

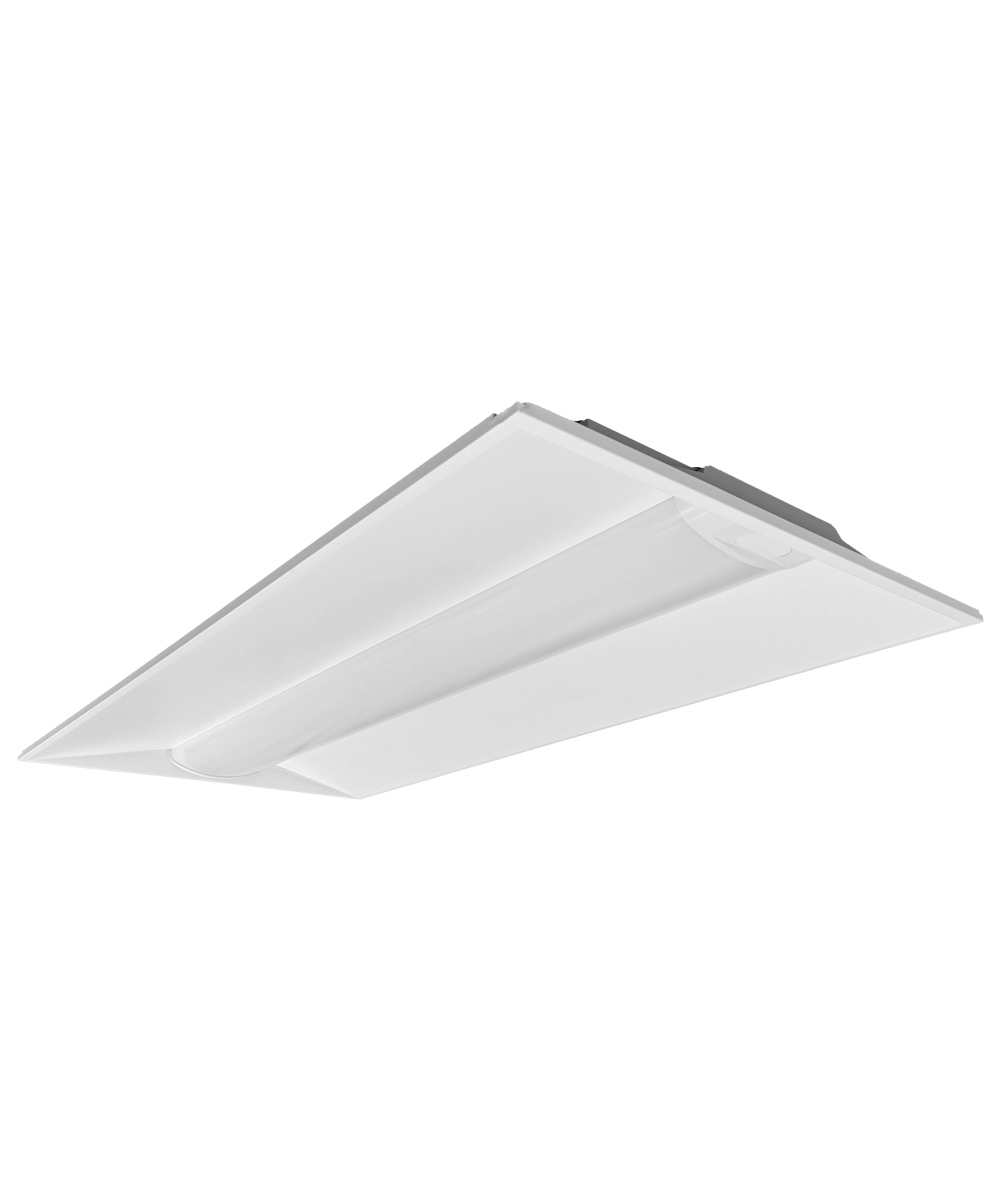

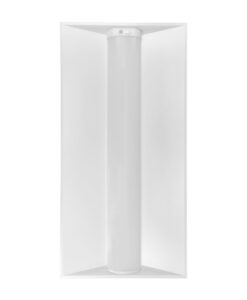

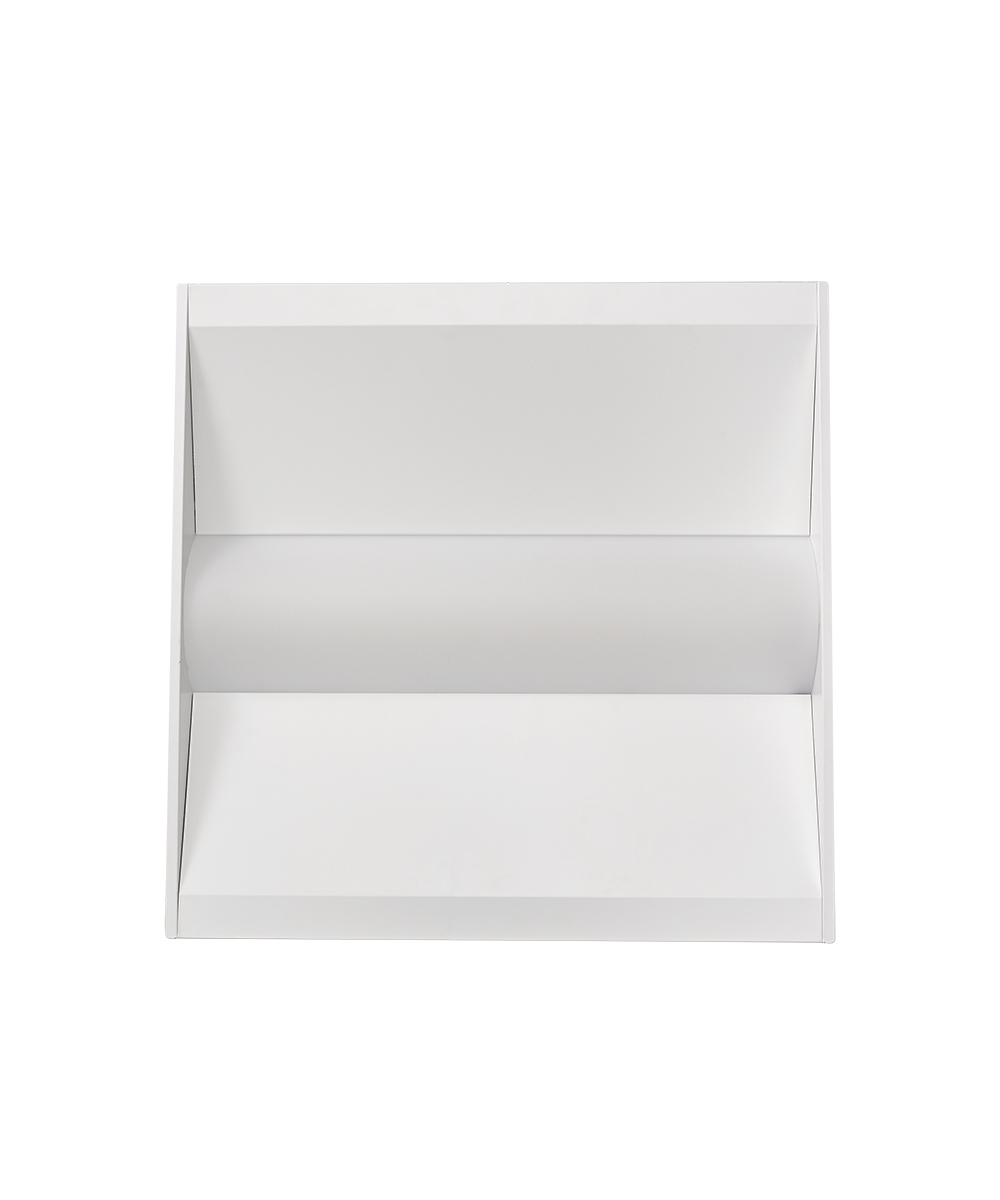

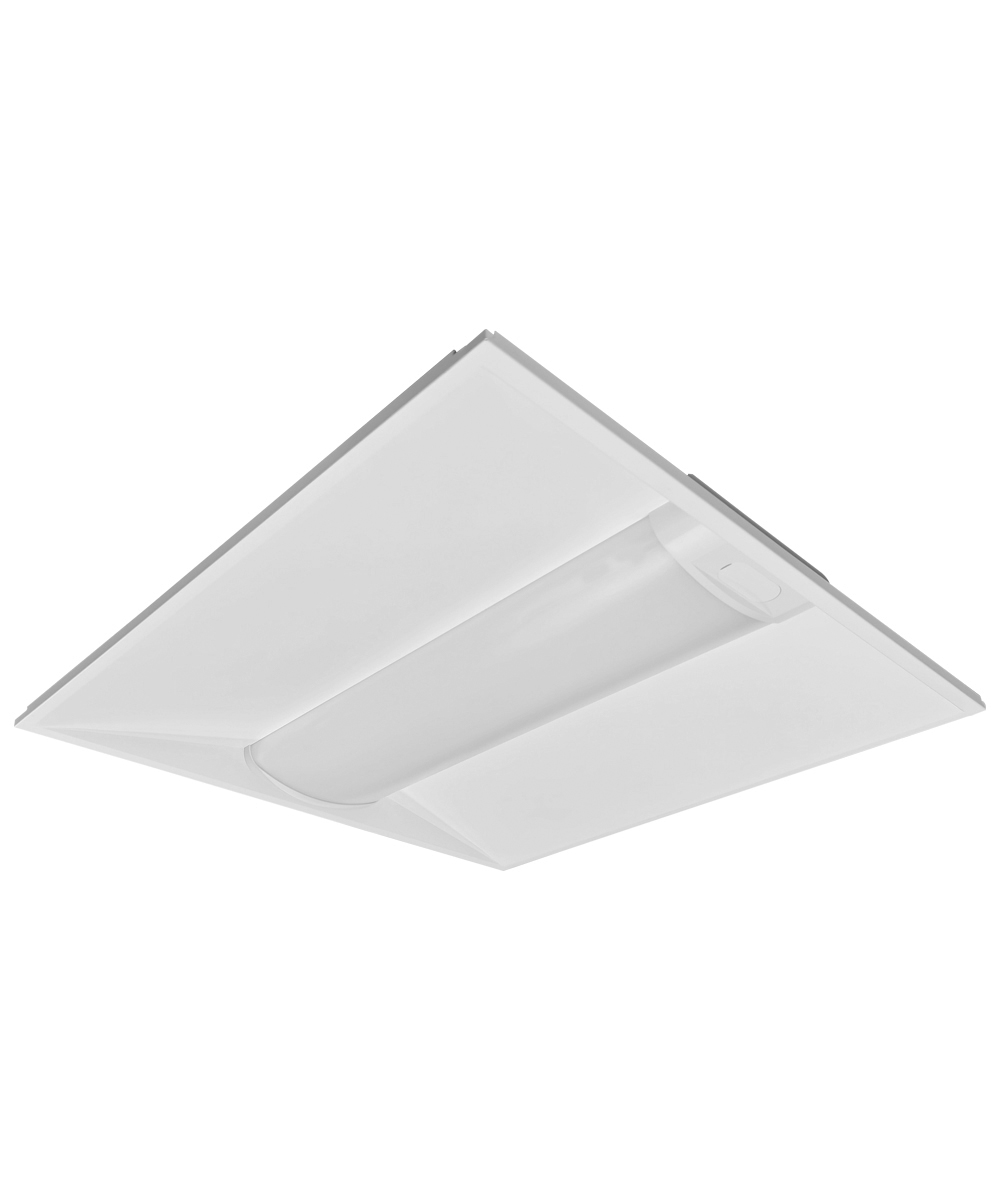

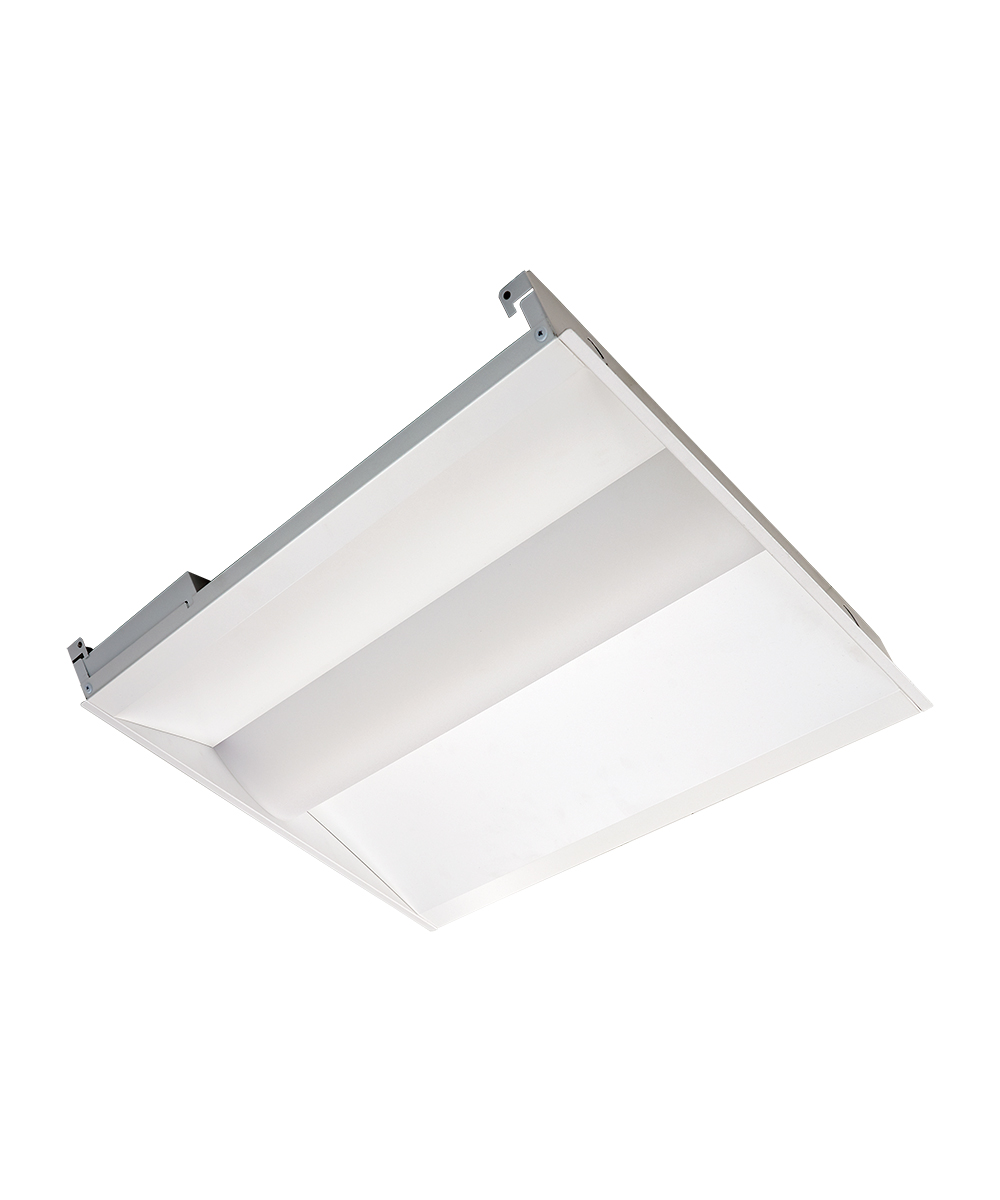

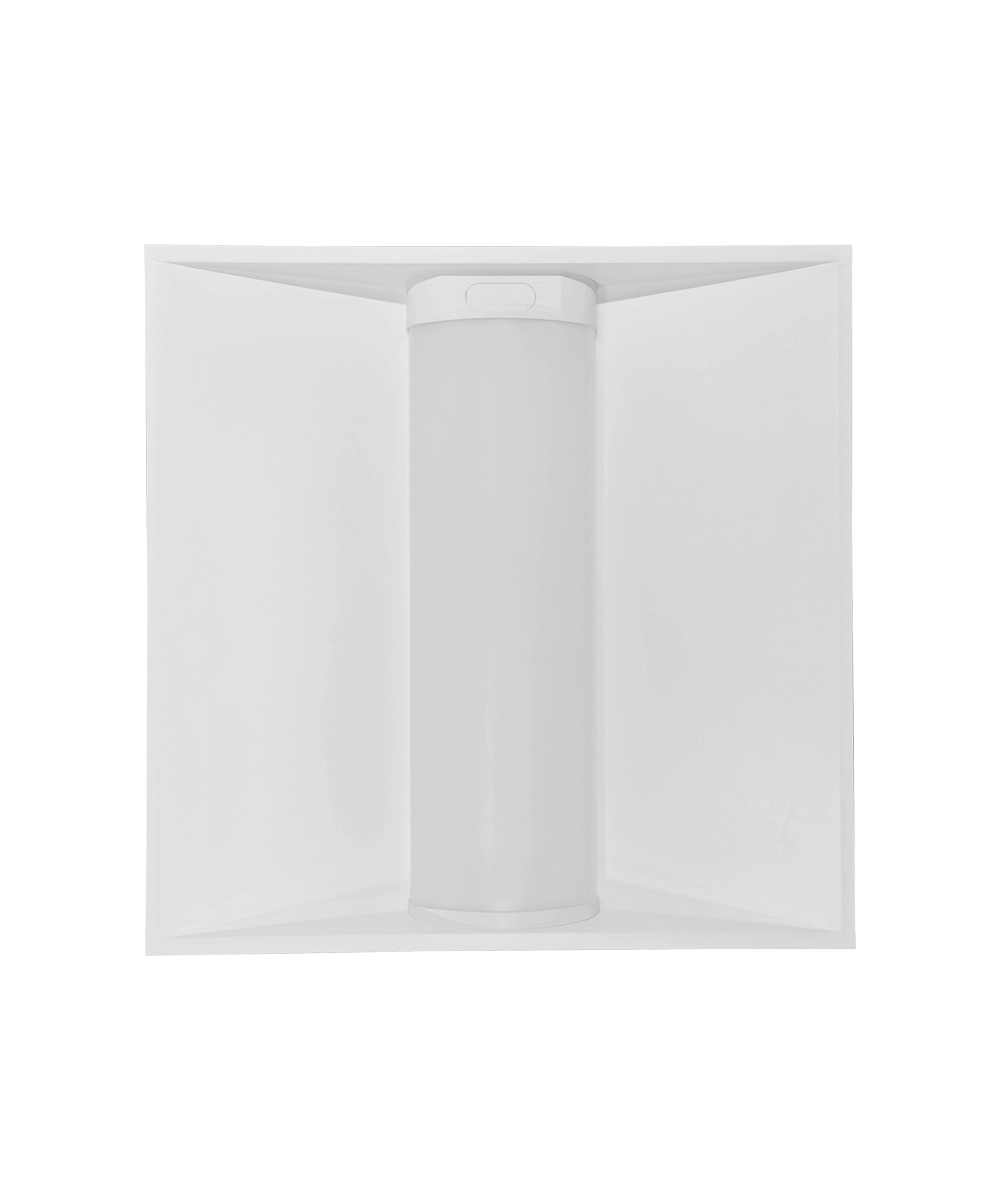

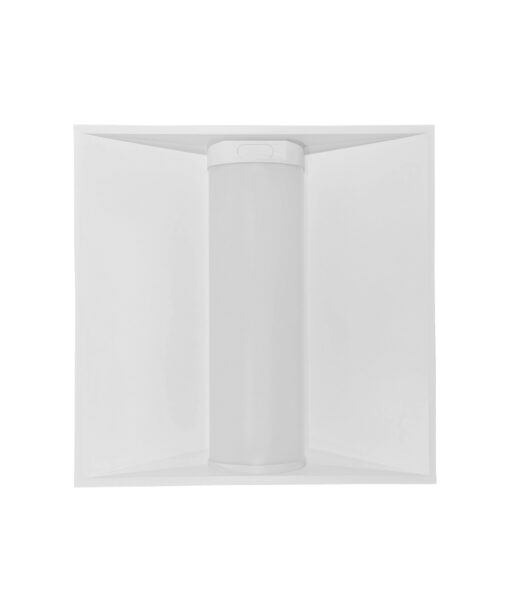

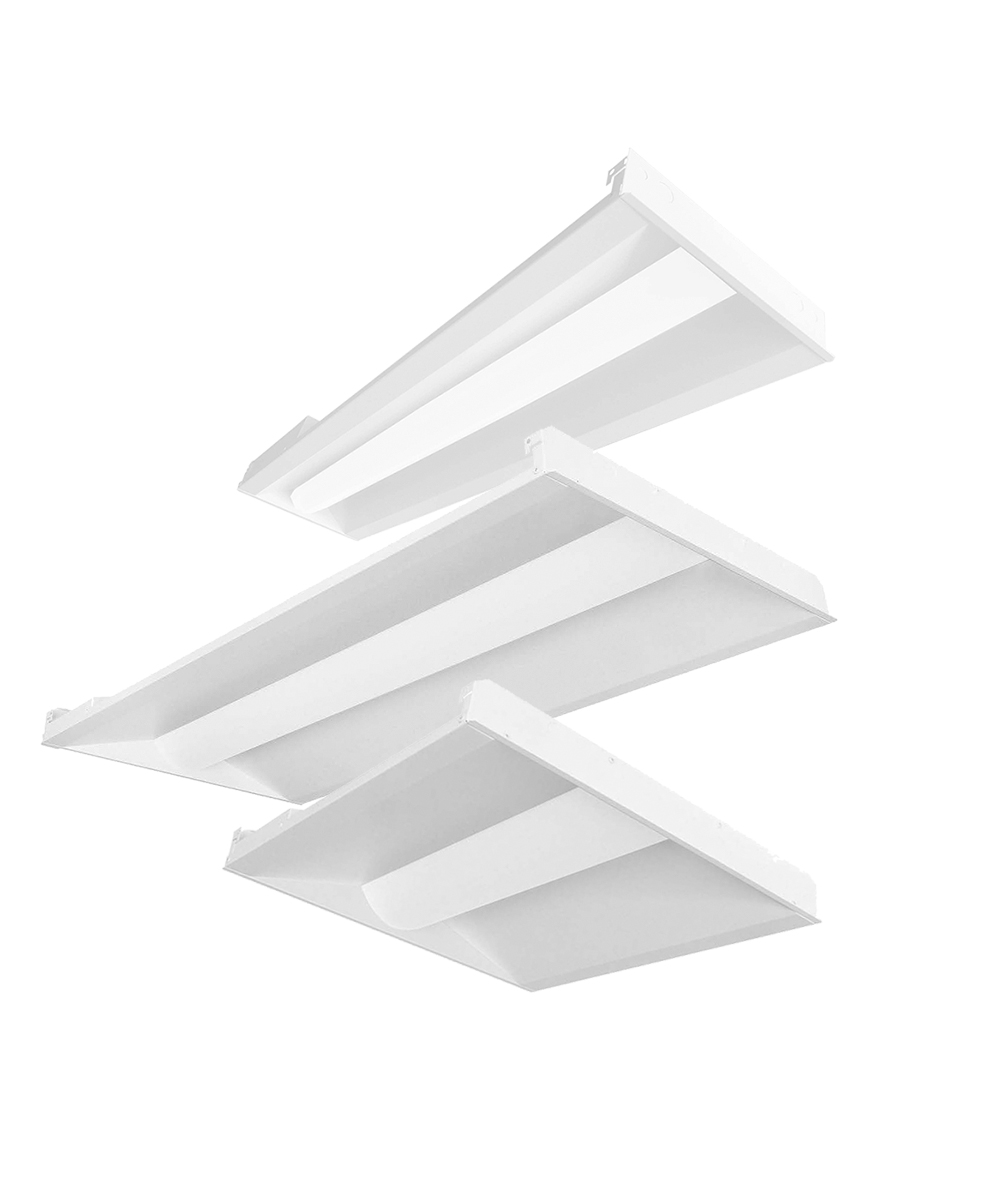

FTFS series Field-Adjustable LED Center Basket Troffer

The 2nd Generation of FTFS series is a Field-Adjustable LED center basket troffer light designed to be used in various indoor applications. Each form factor of FTFS troffer can be field-adjusted to 9 different configurations of lumen outputs and color temperatures.

– Limited Warranty: 5 years
– Efficacy: up to 140 LPW
– Lumen Output: 2,660 – 5,895 L
– Wattage: 20 – 45 W

UL Listed  DLC QPL

Price & Availability
Features SPECIFICATIONS Downloads
Find Rebate Free Layout
From 2,660 to 5,895 lm
SKU: FTFS Categories: , Tag:

Features

DLC QPL v5.1 Listed

The DesignLights Consortium® (DLC) is a non-profit organization promotes high-quality, energy-efficient lighting products in collaboration with utilities and energy efficiency program members, manufacturers, lighting designers. DLC Listed high performing LED lighting products may qualify for rebates.

CCT and Lumen Selectable

Choose lumen output and color temperature before installation with integrated switch

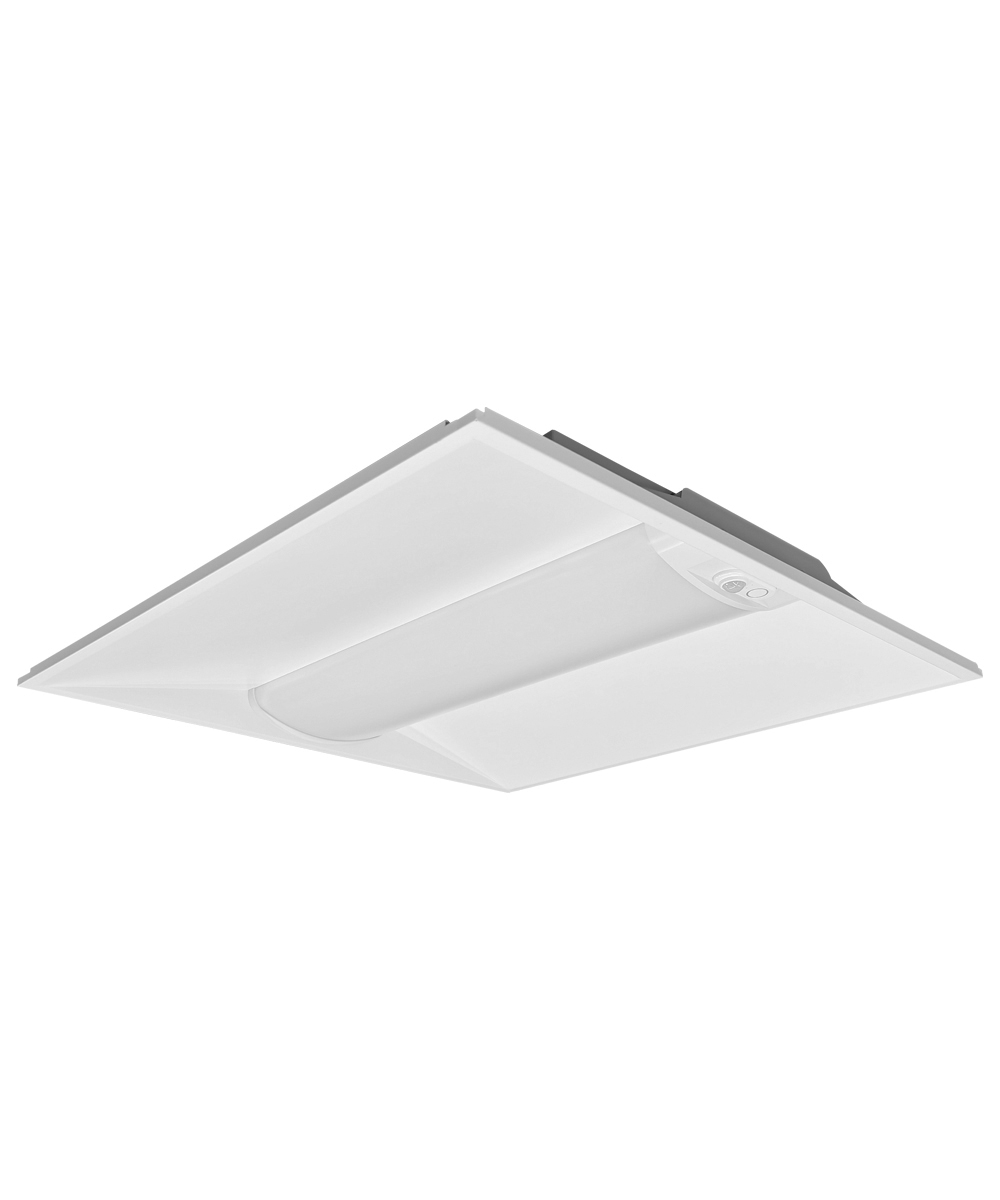

Optional Bi-level Control

Bi-Level Dimming control maximizes energy savings and is simpler than ever by combining an occupancy sensor, a timer, customizable three-step dimming switches and a photo sensor to detect the amount of ambient light surrounding the fixture.

Emergency Backup Available

When there is a power outage, the emergency backup driver and battery will power the
light for at least 90 mins.



Specs & Variations

Model
wattage adjustable 30W 25W 20W
CCT adjustable 3500K 4000K 5000K 3500K 4000K 5000K 3500K 4000K 5000K
FTFS/2 - 14 3,870 lm 3,900 lm 3,930 lm 3,375 lm 3,400 lm 3,425 lm 2,760 lm 2,780 lm 2,800 lm
wattage adjustable 30W 25W 20W
CCT adjustable 3500K 4000K 5000K 3500K 4000K 5000K 3500K 4000K 5000K
FTFS/2 - 22 3,780 lm 3,810 lm 3,840 lm 3,250 lm 3,275 lm 3,300 lm 2,660 lm 2,680 lm 2,700 lm
wattage adjustable 45W 38W 34W
CCT adjustable 3500K 4000K 5000K 3500K 4000K 5000K 3500K 4000K 5000K
FTFS/2 - 24 5,805 lm 5,850 lm 5,895 lm 5,016 lm 5,054 lm 5,092 lm 4,590 lm 4,624 lm 4,658 lm

* all models are power and 3500k/4000k/5000k CCT field-adjustable.



Build Your Light

Family Model Optional Function Optional Mount

FTFS/2

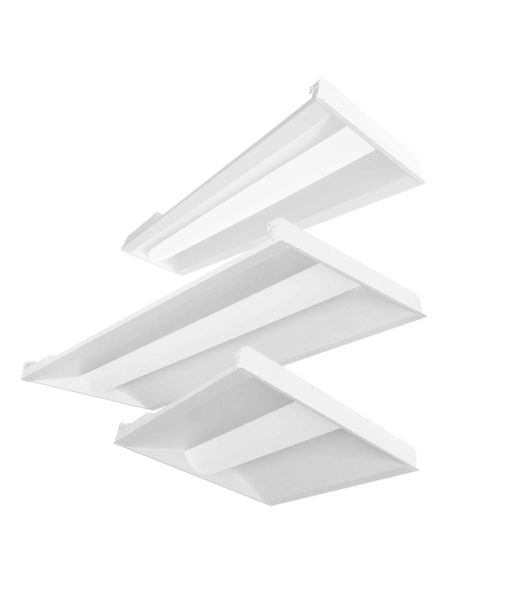

14 - 1ft x 4ft, 30w/25w/20w Power & 3500/4000/5000k CCT adjustable
EM - Emergency backup
SM - Surface mount

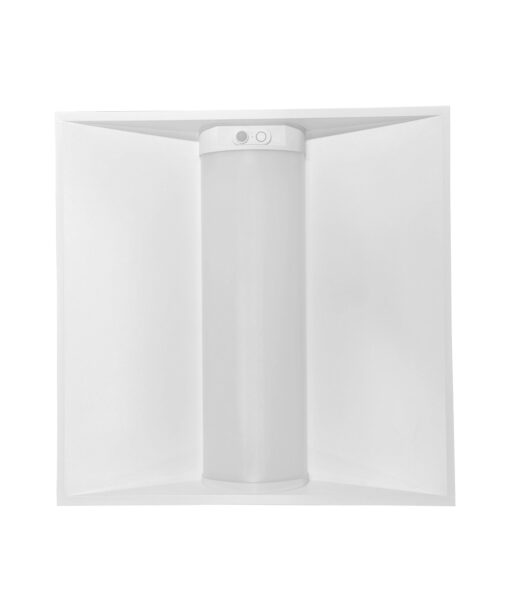

22 - 2ft x 2ft, 30w/25w/20w Power & 3500/4000/5000k CCT adjustable
MC - Bi-level occupancy control 1
DG - Drywall flange

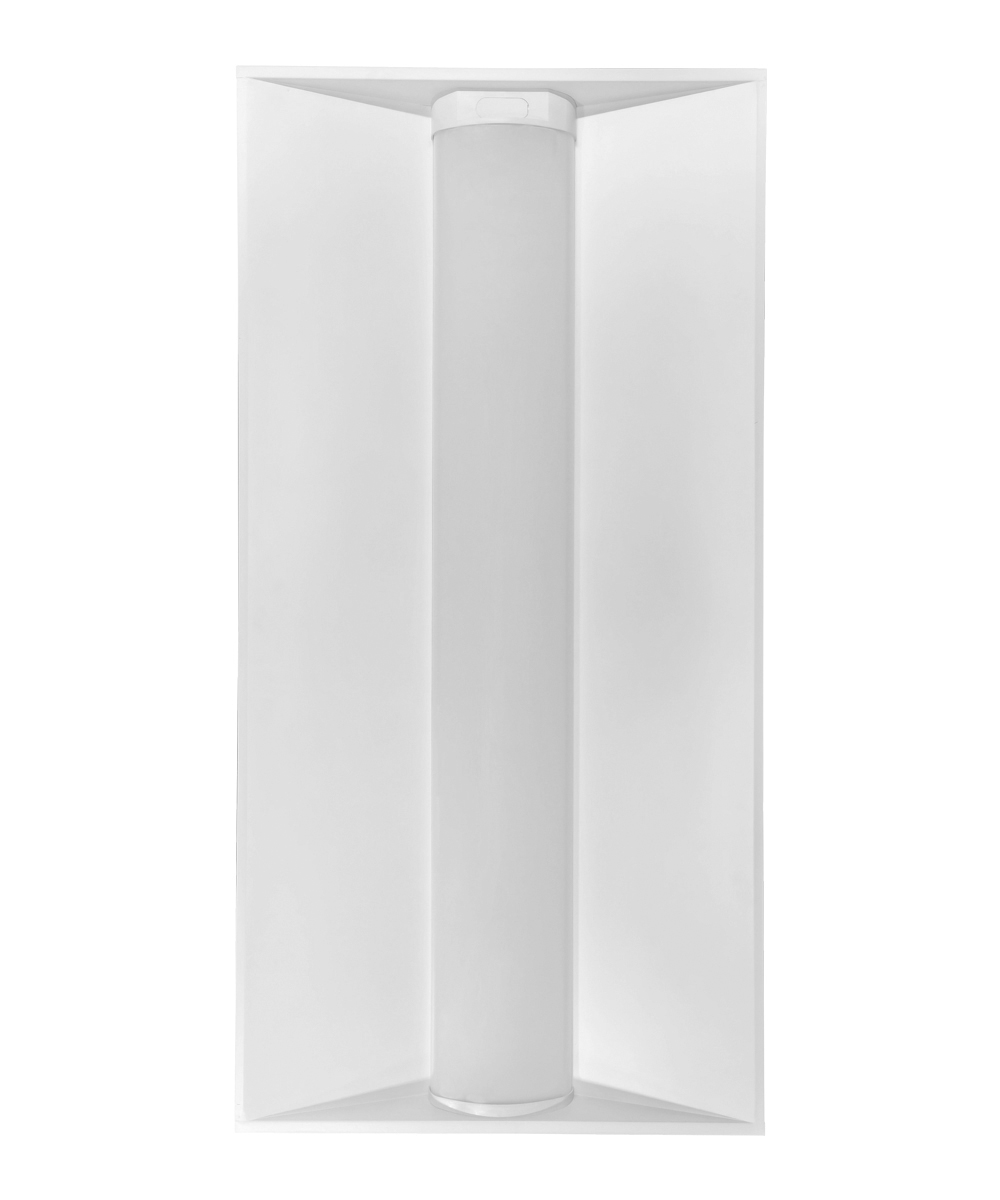

24 - 2ft x 4ft, 45w/38w/24w Power & 3500/4000/5000k CCT adjustable

* Ordering information is for reference only. Some product configurations are not available. Please consult spec sheets for specific product availability and for further details.
Note. 1) available on 2×2 (22D) or 2×4 (24D) models



Documents & Downloads

Specification & Sales Sheets
spec sheet

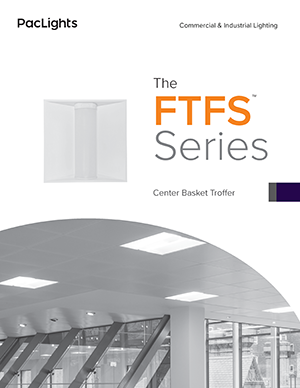

pdficonFTFS series (FTFS/2) Product Specification Sheet

Previous Generations:
(1st Generation)
pdficonFTFS series (1st Gen) Product Specification Sheet
pdficonFTFS series (1st Gen) Product Specification & Sales Sheet

* specifications are subject to change without notice.

Installation Guide

pdficonFTFS/2 series Installation Guide

Previous Generations:
pdficon(1st Generation) FTFS series Installation Guide

* installation instructions are subject to change without notice.

IES Files

Download IES Files:

FTFS/2-22D (field-adjustable to 20w/25w/30w, 3500K/4000K/5000K CCT)
FTFS/2-22D 20W 3500K | FTFS/2-22D 20W 4000K | FTFS/2-22D 20W 5000K
FTFS/2-22D 25W 3500K | FTFS/2-22D 25W 4000K | FTFS/2-22D 25W 5000K
FTFS/2-22D 30W 3500K | FTFS/2-22D 30W 4000K | FTFS/2-22D 30W 5000K

FTFS/2-24D (field-adjustable to 34w/38w/45w, 3500K/4000K/5000K CCT)
FTFS/2-24D 34W 3500K | FTFS/2-24D 34W 4000K | FTFS/2-24D 34W 5000K
FTFS/2-24D 38W 3500K | FTFS/2-24D 38W 4000K | FTFS/2-24D 38W 5000K
FTFS/2-24D 45W 3500K | FTFS/2-24D 45W 4000K | FTFS/2-24D 45W 5000K

FTFS/2-14D (field-adjustable to 20w/25w/30w, 3500K/4000K/5000K CCT)
FTFS/2-14D 20W 3500K | FTFS/2-14D 20W 4000K | FTFS/2-14D 20W 5000K
FTFS/2-14D 25W 3500K | FTFS/2-14D 25W 4000K | FTFS/2-14D 25W 5000K
FTFS/2-14D 30W 3500K | FTFS/2-14D 30W 4000K | FTFS/2-14D 30W 5000K

Previous Generations:
(1st Generation)
FTFS22 | FTFS24

DLC QPL
wdt_IDQPL Model No.Product IDVersionClassificationPrimary Use
208FTFS/2-14D-30/25/20-835/840/850-(MC or EM or Blank)-(A3B+B3)PTAIFKSQ5.1Standard1x4 Luminaires for Ambient Lighting of Interior Commercial Spaces
209FTFS/2-22D-30/25/20-835/840/850-(MC or EM or Blank)-(A3B+B3)PP3HS7AI5.1Standard2x2 Luminaires for Ambient Lighting of Interior Commercial Spaces
210FTFS/2-24D-45/38/34-835/840/850-(MC or EM or Blank)-(A3B+B3)P4TC084K5.1Standard2x4 Luminaires for Ambient Lighting of Interior Commercial Spaces
QPL Model No.Product IDVersionClassificationPrimary Use
