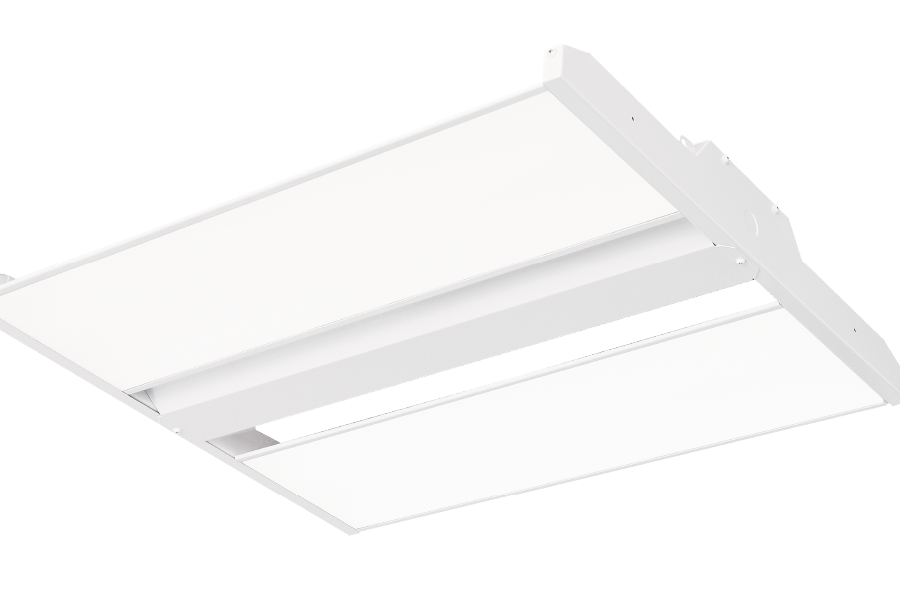

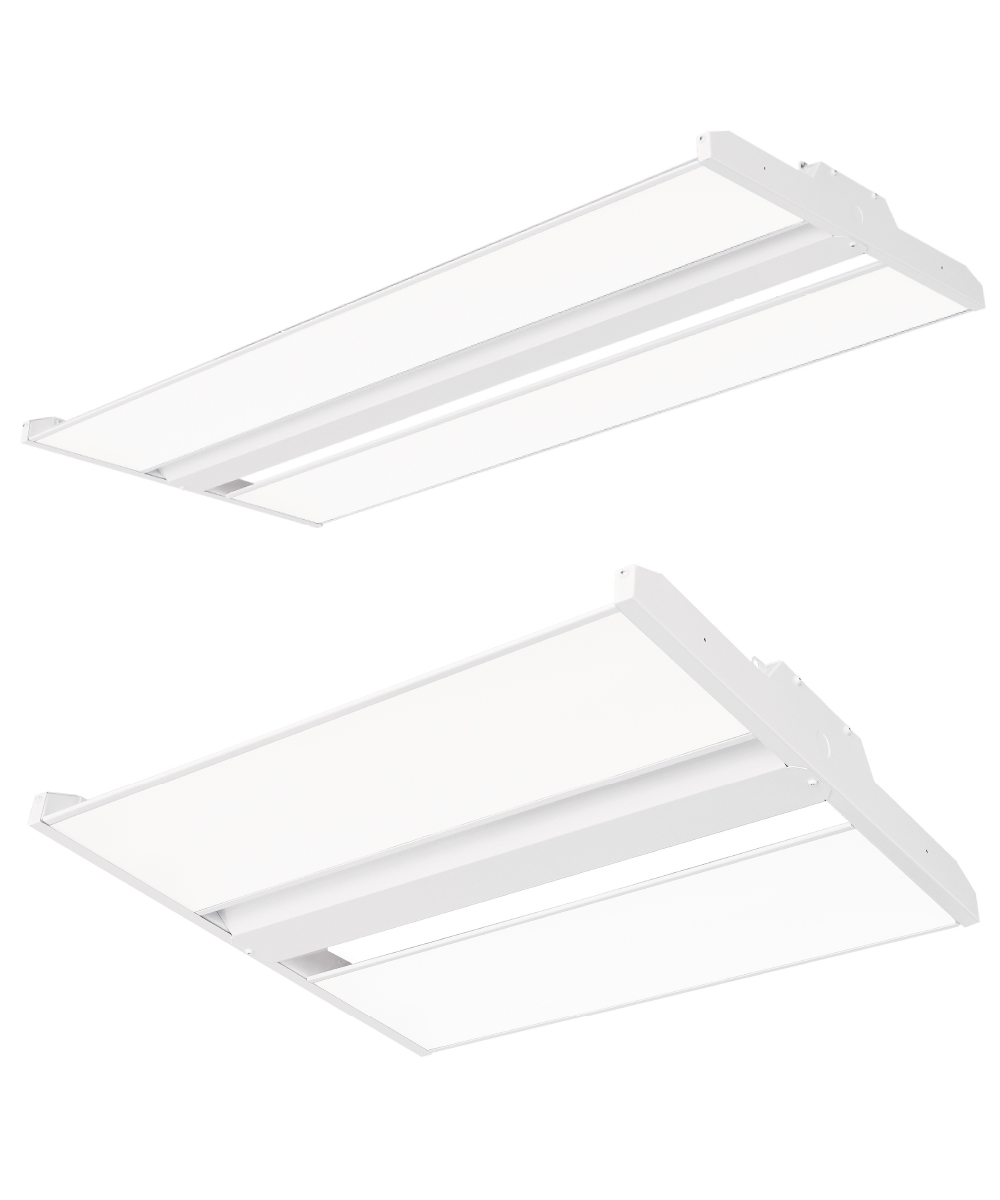

FLHC series LED Linear High Bays

The FLHC series LED Linear High Bay are high performance LED luminaires comes with maximized versatility of 10 lumen packages. FLHC series are controls ready, optional AUX-port microwave bi-level occupancy bi-level or daylight harvesting control can be installed on field within a few seconds, and be configured with an optional wireless commissioning device.

– Limited Warranty: 7 years
– Efficacy: up to 136 LPW
– Lumen Output: 8,500 – 54,000 L
– Wattage: 65 – 400 W
– Input: 120 – 277 V (Optional 480V)

UL Listed DLC QPL Premium

Price & Availability
Features SPECIFICATIONS Downloads
Find Rebate Free Layout

From 8,500 lm to 54,000 lm
SKU: FLHC Categories: , Tag:

Features

DLC QPL v5.1 Listed

The DesignLights Consortium® (DLC) is a non-profit organization promotes high-quality, energy-efficient lighting products in collaboration with utilities and energy efficiency program members, manufacturers, lighting designers. DLC Listed high performing LED lighting products may qualify for rebates.

Bi-level Control Option

Bi-Level Dimming control maximizes energy savings and is simpler than ever by combining an occupancy sensor, a timer, customizable three-step dimming switches and a photo sensor to detect the amount of ambient light surrounding the fixture.

Daylight Harvesting Option

Daylight Harvesting Sensor is a control device that reduces electric light in building interiors when daylight is available, in
order to reduce energy consumption. Daylight harvesting takes advantage of naturally available light, is a key energy-saving strategy for commercial spaces.

Emergency Backup Available

When there is a power outage, the emergency backup driver and battery will power the
light for at least 90 mins.



Specs & Variations

Model Length LED Wattage [email protected] [email protected] [email protected] [email protected]
FLHC 2D 065 2 ft 65w 8,450 lm 130 lm/w 8,515 lm 131 lm/w
FLHC 2D 085 2 ft 85w 11,475 lm 135 lm/w 11,560 lm 136 lm/w
FLHC 2D 105 2 ft 105w 14,175 lm 135 lm/w 14,280 lm 136 lm/w
FLHC 2D 130 2 ft 130w 17,550 lm 135 lm/w 17,680 lm 136 lm/w
FLHC 2D 155 2 ft 155w 20,925 lm 135 lm/w 21,080 lm 136 lm/w
FLHC 2D 170 2 ft 170w 22,950 lm 135 lm/w 23,120 lm 136 lm/w
FLHC 2D 210 2 ft 210w 28,350 lm 135 lm/w 28,560 lm 136 lm/w
FLHC 4D 255 4 ft 255w 34,425 lm 135 lm/w 34,680 lm 136 lm/w
FLHC 4D 300 4 ft 300w 40,500 lm 135 lm/w 40,800 lm 136 lm/w
FLHC 4D 400 4 ft 400w 54,000 lm 135 lm/w 54,400 lm 136 lm/w



Build Your Light

Family Model Color Temperature Input Voltage Optional Adds-on

FLHC
2D 065 - 2 ft, 65w
4D 255 - 4 ft, 255w
4000 - 4000K
UV - 120-277v
EM - Emergency backup
2D 085 - 2 ft, 85w
4D 300 - 4 ft, 300w
5000 - 5000K
HV - 347-480v
WG - Wireguard
2D 105 - 2 ft, 105w
4D 400 - 4 ft, 400w
MCW - Bi-level occupancy control
2D 130 - 2 ft, 130w
DLH - Daylight harvesting control
2D 155 - 2 ft, 155w
CB - Aircraft cable mount
2D 170 - 2 ft, 170w
PM - Conduit Pendant mount
2D 210 - 2 ft, 210w
SM - Surface mount

* Ordering information is for reference only. Some product configurations are not available. Please consult spec sheets for specific product availability and for further details.



Documents & Downloads

Specification & Sales Sheets

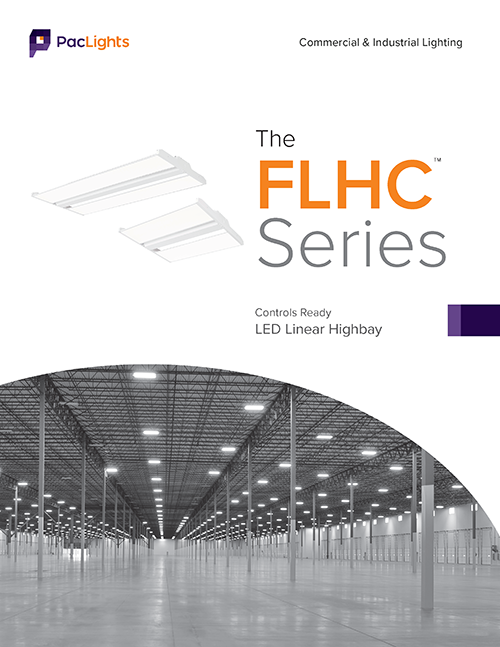

spec sheet
pdficonFLHC series Product Specification Sheet

* specifications are subject to change without notice.

Installation Guide

pdficonFLHC series Installation Guide

pdficonEMC Emergency Backup Installation Guide

* installation instructions are subject to change without notice.

IES Files

Download IES Files:

FLHC 2D:
FLHC2D065 4000K | FLHC2D065 5000K ;
FLHC2D085 4000K | FLHC2D085 5000K ;
FLHC2D105 4000K | FLHC2D105 5000K ;
FLHC2D130 4000K | FLHC2D130 5000K ;
FLHC2D155 4000K | FLHC2D155 5000K ;
FLHC2D170 4000K | FLHC2D170 5000K ;
FLHC2D210 4000K | FLHC2D210 5000K

FLHC 4D:
FLHC4D255 4000K | FLHC4D255 5000K ;
FLHC4D300 4000K | FLHC4D300 5000K ;
FLHC4D400 4000K | FLHC4D400 5000K

*IES files might not cover all options

DLC QPL
wdt_IDQPL Model No.Product IDVersionClassificationPrimary Use
196FLHC2D065-4000UV-FL-8AxF1A3B3SxEMxPLOCE2UV4M1X5.1PremiumLow-Bay Luminaires for Commercial and Industrial Buildings
197FLHC2D065-5000UV-FL-8AxF1A3B3SxEMxPL2HOPU7QFCW5.1PremiumLow-Bay Luminaires for Commercial and Industrial Buildings
198FLHC2D085-4000UV-FL-8[AN;AU]F1A3B3SNEMNPLUT2DYU9IQL5.1PremiumHigh-Bay Luminaires for Commercial and Industrial Buildings
199FLHC2D085-5000UV-FL-8[AN;AU]F1A3B3SNEMNPLT5XX4DWQ0G5.1PremiumHigh-Bay Luminaires for Commercial and Industrial Buildings
200FLHC2D105-4000UV-FL-8AxF1A3B3SxEMxPLCATY8K68155.1PremiumHigh-Bay Luminaires for Commercial and Industrial Buildings
201FLHC2D105-5000UV-FL-8AxF1A3B3SxEMxPL11AEPAYK7R5.1PremiumHigh-Bay Luminaires for Commercial and Industrial Buildings
202FLHC2D130-4000UV-FL-8AxF1A3B3SxEMxPL6Q9P5P5LL05.1PremiumHigh-Bay Luminaires for Commercial and Industrial Buildings
203FLHC2D130-5000UV-FL-8AxF1A3B3SxEMxPLXL8L4XUIWH5.1PremiumHigh-Bay Luminaires for Commercial and Industrial Buildings
204FLHC2D155-4000UV-FL-8AxF1A3B3SxEMxPL3JCZEI0UNA5.1PremiumHigh-Bay Luminaires for Commercial and Industrial Buildings
205FLHC2D155-5000UV-FL-8AxF1A3B3SxEMxPL92P70NKEJJ5.1PremiumHigh-Bay Luminaires for Commercial and Industrial Buildings
QPL Model No.Product IDVersionClassificationPrimary Use
