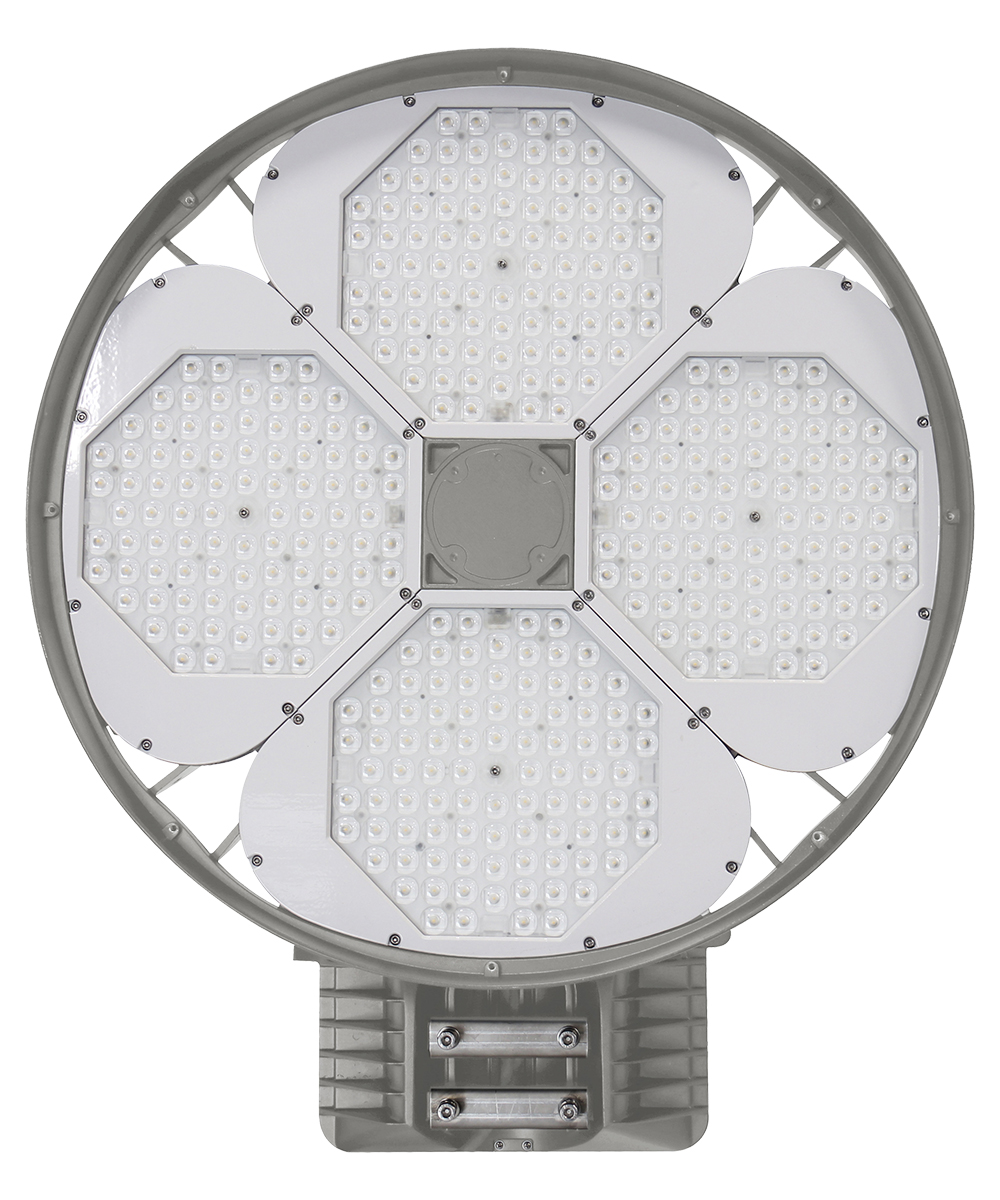

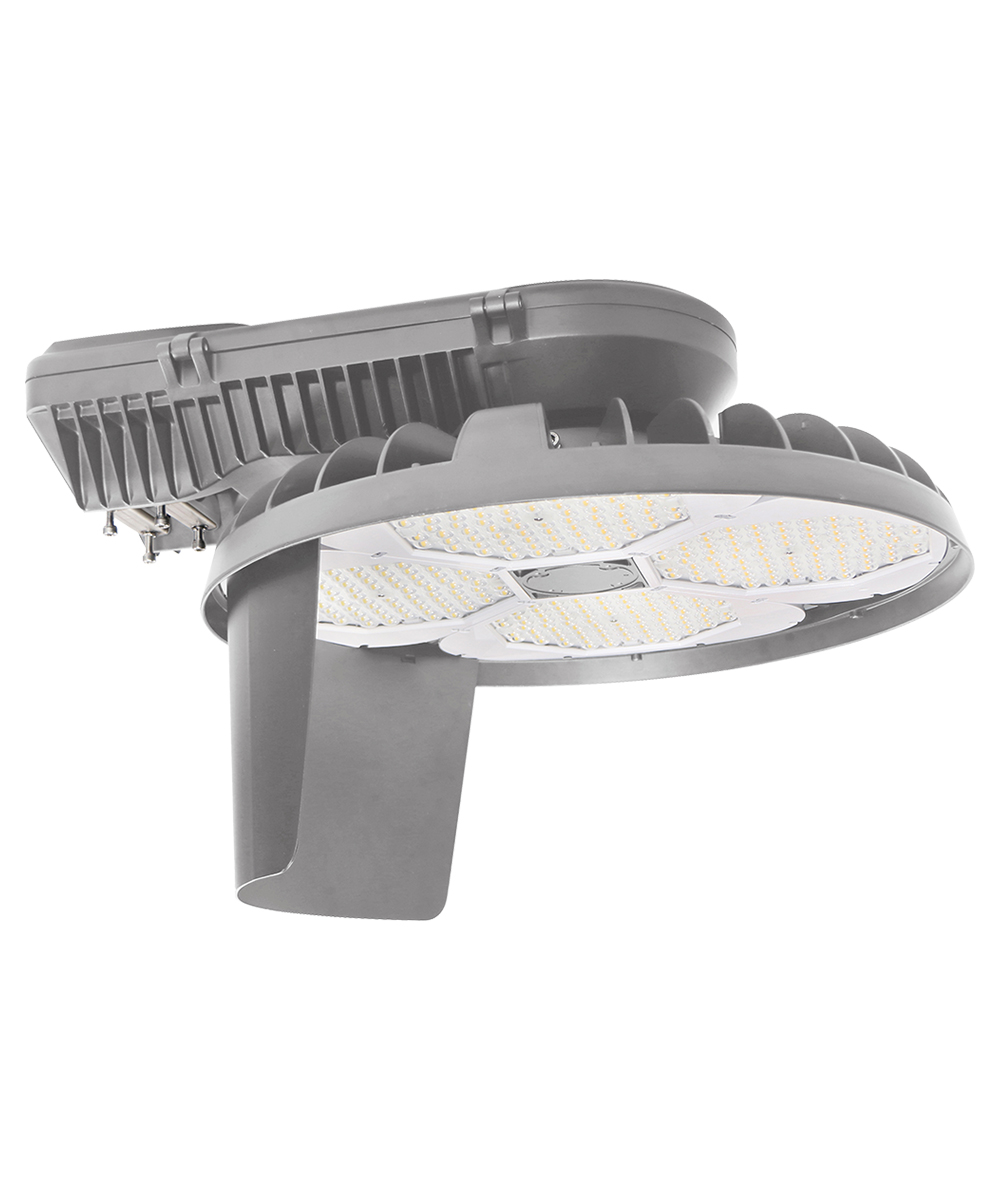

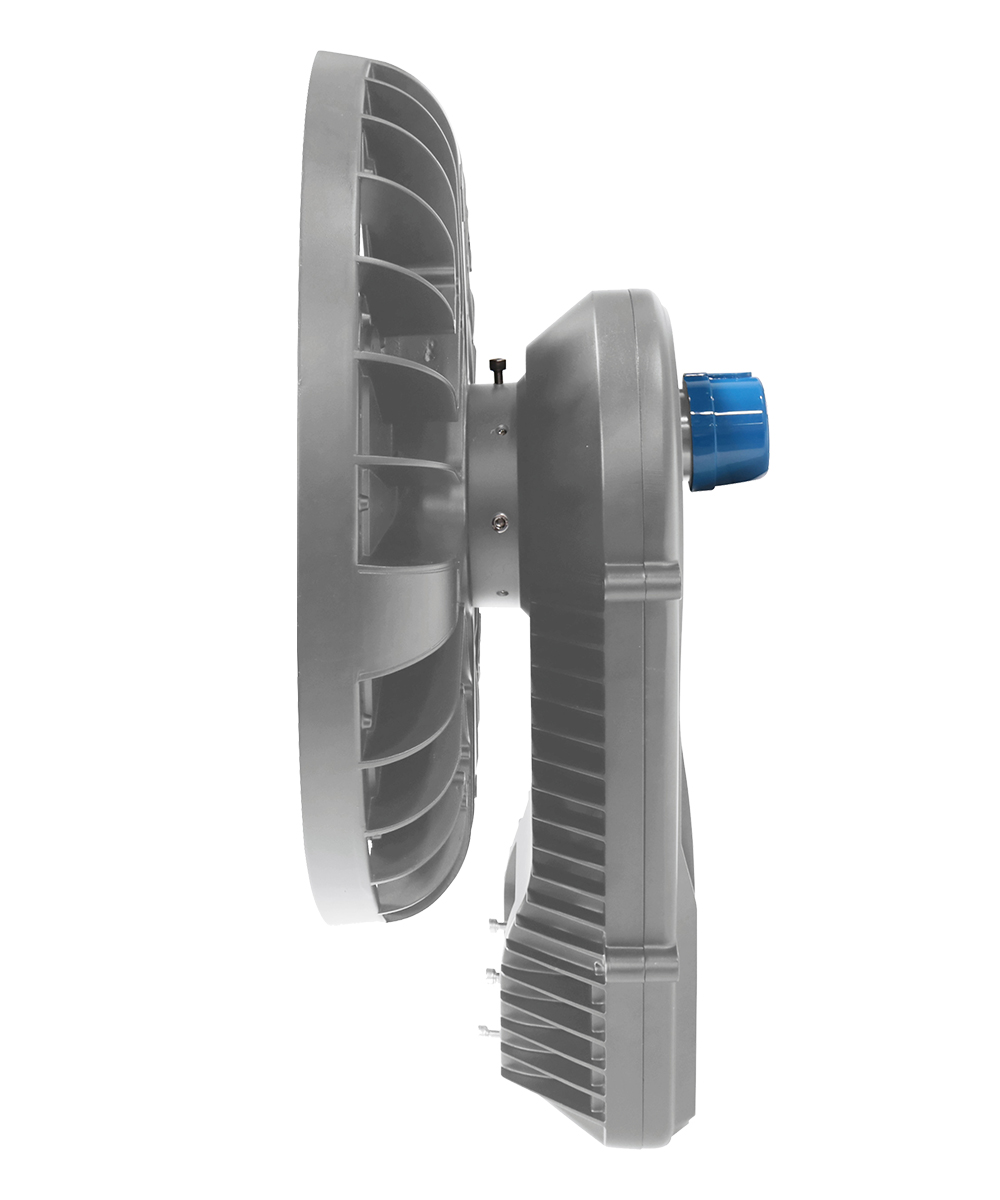

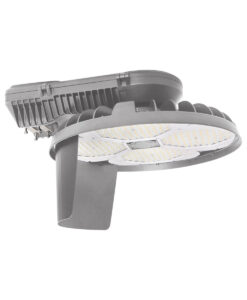

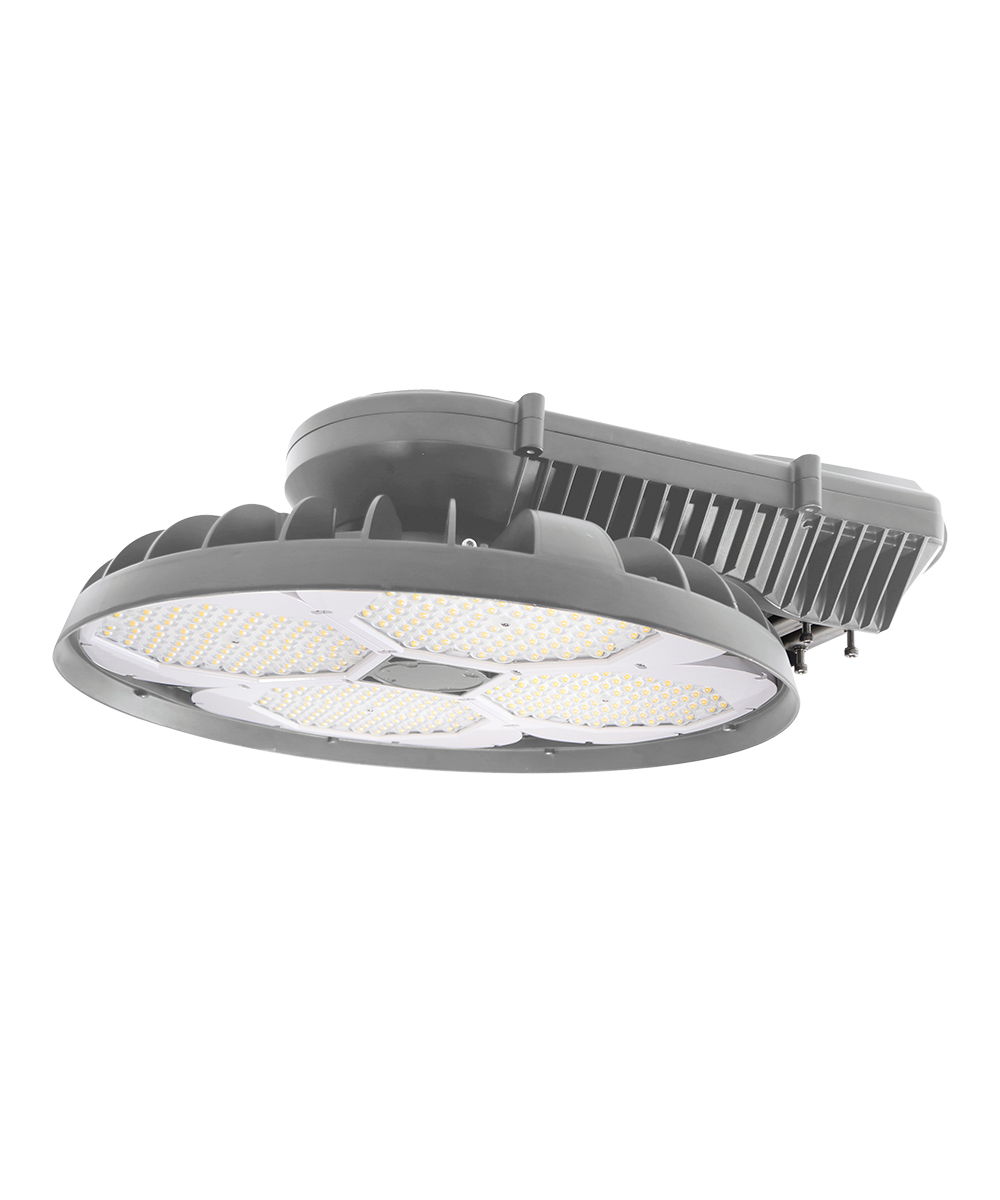

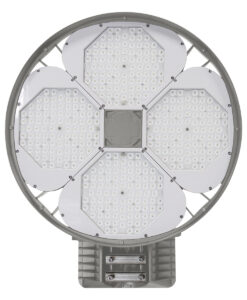

FHMA series LED High Mast Lights

The FHMA series LED high-mast fixture provides long system life and up to 65% energy reduction over traditional HID products. FHMA series offers the flexibility of multiple lumen packages, control options, both roadway and area optical distributions, all providing the customer choices on light levels and energy savings when replacing 400-1000+ watt HID products. This LED high-mast fixture is designed to excel for both retrofit and new construction. Available with a wide variety of controls options as well as secondary surge protection feature to enhance power quality protection of operation. LED High-Mast lighting for highways, interchanges, ports, rail yards, container yards, correctional facilities, truck stops, water treatment plants, large area Industrial, airports, security lighting, toll plazas and sports lighting.

– Limited Warranty: 5 years
– Efficacy: up to 144 LPW
– Lumen Output: 28,000 – 106,000 L
– Wattage: 200 – 750 W

UL Listed DLC QPL Premium

Price & Availability Need Help?
Features SPECIFICATIONS Downloads
Find Rebate Free Layout

From 28,000 lm to 106,000 lm
SKU: FHMA Categories: , Tag:

Features

DLC QPL v5.1 Listed

The DesignLights Consortium® (DLC) is a non-profit organization promotes high-quality, energy-efficient lighting products in collaboration with utilities and energy efficiency program members, manufacturers, lighting designers. DLC Listed high performing LED lighting products may qualify for rebates.

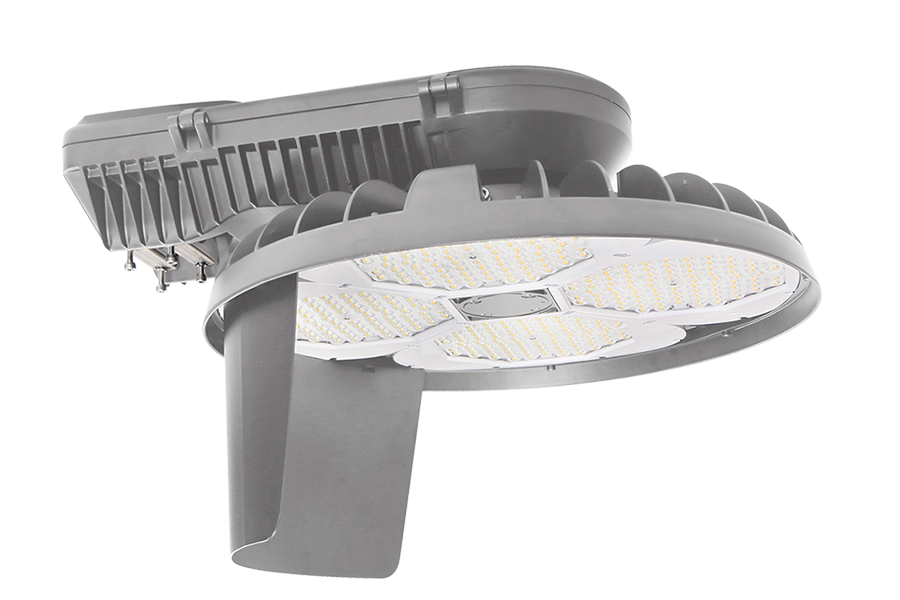

Angle Adjustable

Fixture can be tilted at the angles of up to 5°. The optical assembly can be rotated at the angles of ±165°. Glare shield is optional to control light distribution.

Control Options

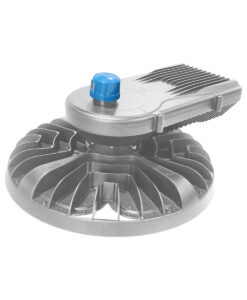

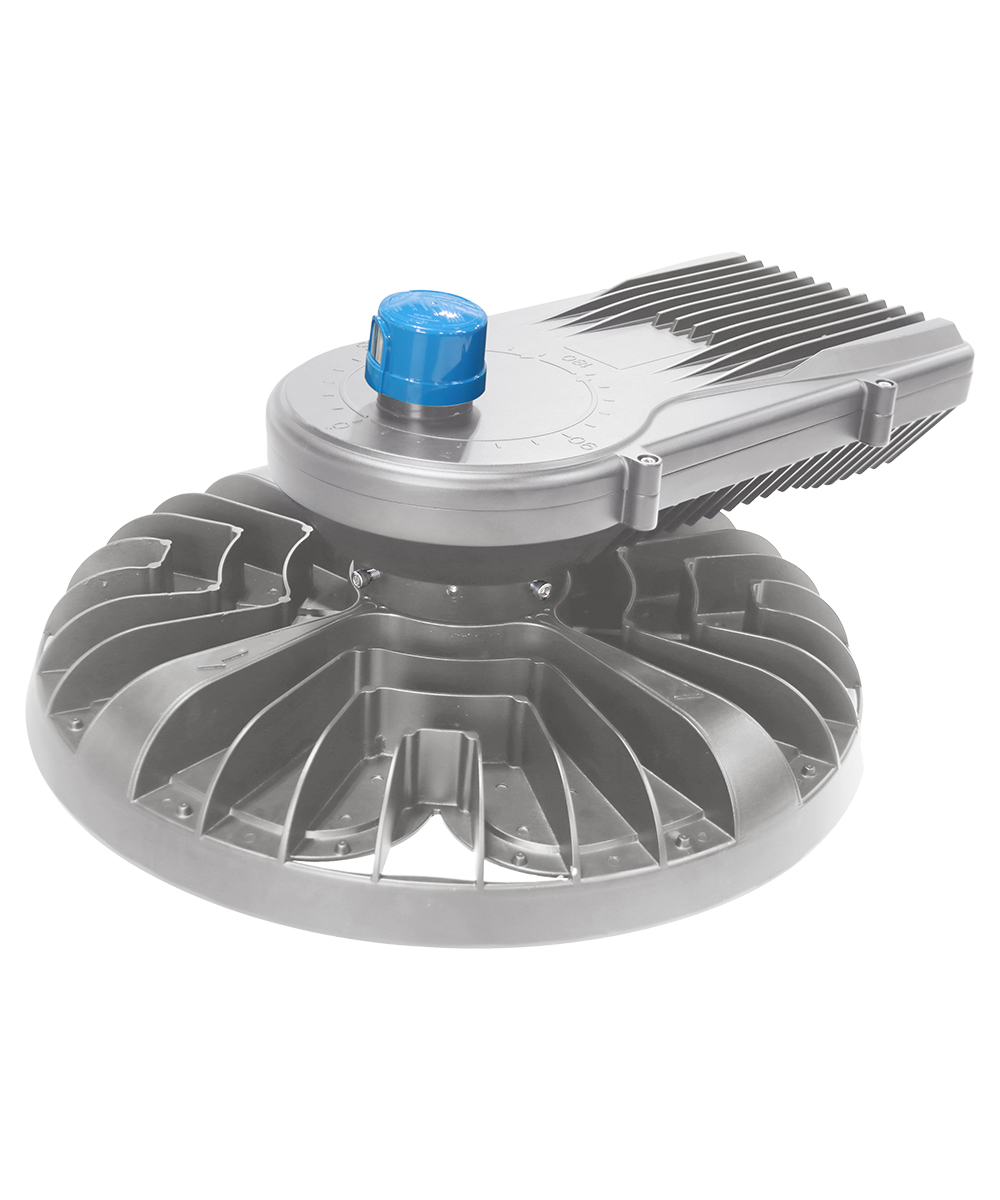

FHMA comes with ANSI C136.41 (7 pin NEMA) receptacle, and compatible with 3, 5 or 7 pin twist lock controls.

IP 66 Rated

IP rated as “dust tight” and protected against powerful water jet from any direction.



Specs & Variations

Model LED Wattage Lumen@5700K Lumen@5000K Lumen@4000K
FHMA-200 200W 28,800 lm 28,600 lm 28,400 lm
FHMA-300 300W 43,200 lm 42,900 lm 42,600 lm
FHMA-450 450W 64,800 lm 64,350 lm 63,900 lm
FHMA-500 500W 74,597 lm 74,438 lm 74,279 lm
FHMA-600 600W 83,760 lm 83,580 lm 83,400 lm
FHMA-750 750W 106,545 lm 106,458 lm 106,369 lm



Build Your Light

Family Model Input Voltage Color Temperature Options

FHMA
200 - 200w
UV   - 120-277v
2700  1 - 2700K
GS - glare shield
300 - 300w
HV   - 277-480v
3000  1 - 3000K
TLP - photocell control
450 - 450w
4000   - 4000K
DLH - photocell + daylight harvesting control
500 - 500w
5000   - 5000K
DLM - photocell + daylight harvesting + midnight control
600 - 600w
5700  1 - 5700K
750 - 750w

* Ordering information is for reference only. Some product configurations are not available. Please consult spec sheets for specific product availability and for further details.
Note 1) available for special order



Documents & Downloads

Specification & Sales Sheets
spec sheet

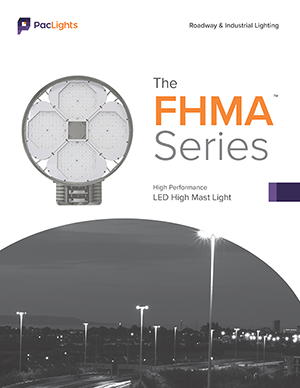

pdficonFHMA series Product Specification Sheet

* specifications are subject to change without notice.

pdficonFHMA series Installation Guide

* installation instructions are subject to change without notice.

Download IES Files:

FHMA-500 | FHMA-750

*IES files might not cover all options

wdt_IDQPL Model No.Product IDVersionClassificationPrimary Use
196FHMA-500-UV-4000-DT5-Z-[3NP;3RP;3NT;3RT;5NP;5RP;5NT;5RT;7NP;7RP;7NT;7RT;blank][SP10;SP20;blank]-CPCCUAUDC5.1PremiumOutdoor Pole/Arm-Mounted Area and Roadway Luminaires
197FHMA-500-UV-5000-DT5-Z-[3NP;3RP;3NT;3RT;5NP;5RP;5NT;5RT;7NP;7RP;7NT;7RT;blank][SP10;SP20;blank]-CPDOHGRK55.1PremiumOutdoor Pole/Arm-Mounted Area and Roadway Luminaires
198FHMA-500-UV-5700-DT5-Z-[3NP;3RP;3NT;3RT;5NP;5RP;5NT;5RT;7NP;7RP;7NT;7RT;blank][SP10;SP20;blank]-CP1VAXD9E5.1PremiumOutdoor Pole/Arm-Mounted Area and Roadway Luminaires
199FHMA-750-UV-4000-DT5-Z-[3NP;3RP;3NT;3RT;5NP;5RP;5NT;5RT;7NP;7RP;7NT;7RT;blank][SP10;SP20;blank]W-CPNAZDB5M5.1PremiumOutdoor Pole/Arm-Mounted Area and Roadway Luminaires
200FHMA-750-UV-5000-DT5-Z-[3NP;3RP;3NT;3RT;5NP;5RP;5NT;5RT;7NP;7RP;7NT;7RT;blank][SP10;SP20;blank]W-CPT48YNIG5.1PremiumOutdoor Pole/Arm-Mounted Area and Roadway Luminaires
201FHMA-750-UV-5700-DT5-Z-[3NP;3RP;3NT;3RT;5NP;5RP;5NT;5RT;7NP;7RP;7NT;7RT;blank][SP10;SP20;blank]W-CPYONKFPQ5.1PremiumOutdoor Pole/Arm-Mounted Area and Roadway Luminaires
QPL Model No.Product IDVersionClassificationPrimary Use
