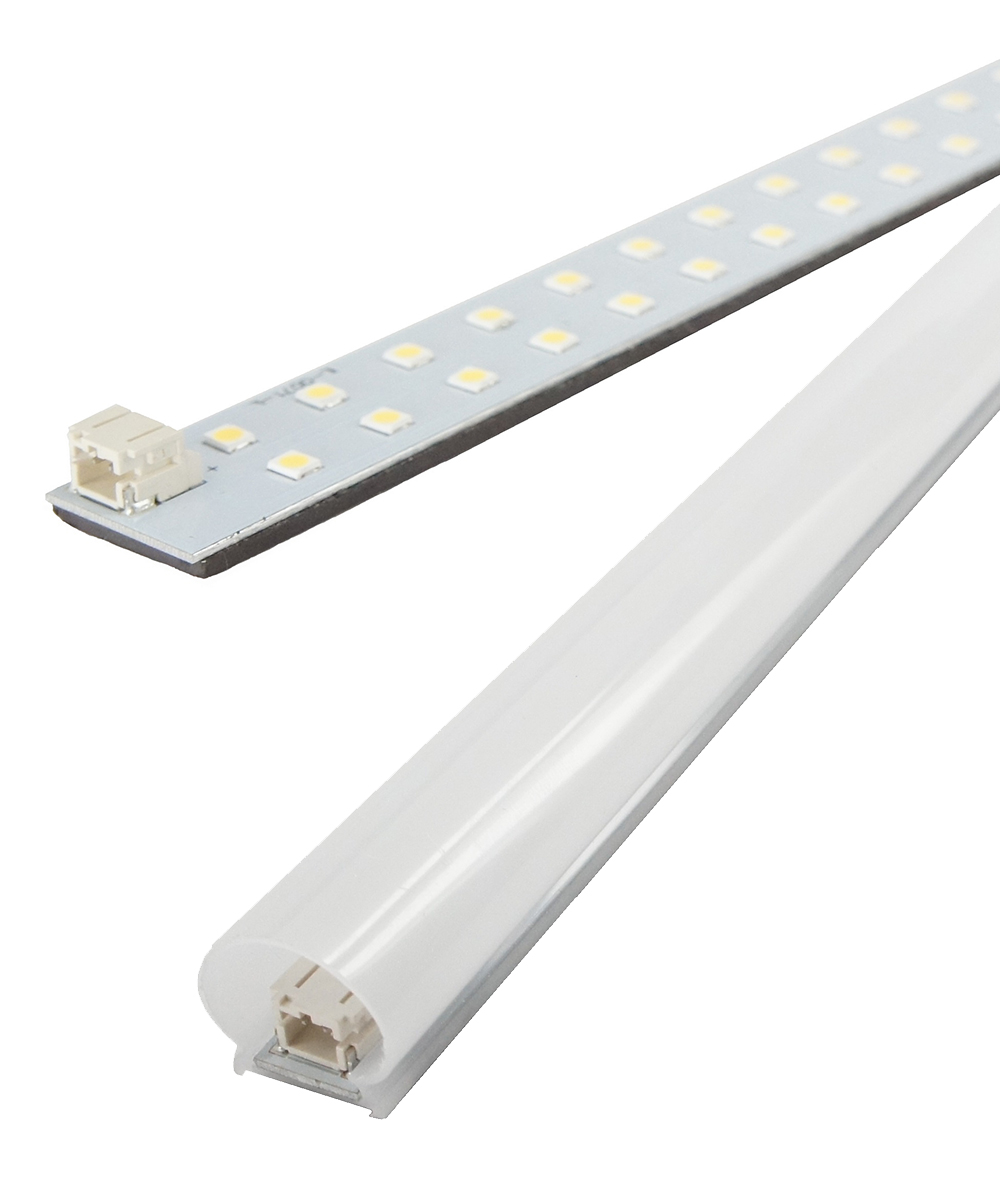

RKLN series LED Linear Retrofit Kits

The RKLN Series is a LED Linear Retrofit Kit designed to retrofit existing 1′ x 4′, 2′ x 2′, or 2′ x 4′ troffers or other linear lighting fixtures. These LED strips and drivers come with a magnetic backing for easy installation. The RKLN Series is available in various combination of wattage, number and length of the LED strips.

– Limited Warranty: 5 years
– Efficacy: up to 140 LPW
– Lumen Output: 2,250- 7,050 L
– Wattage: 20 – 50 W
– Input: 100-277 V

Spec Sheets Downloads
Find Rebate Free Layout
Where to Buy

From 2,250 lm to 7,050 lm

Specs & Variations

Please find below major variations of this product.

2 X 2' Strips

RKLN22N20

20W

without Lens

2,450 L

Retrofitting total 50w+ Fluorescent

2 X 2' Strips

RKLN22F25

25W

Frosted Lens

2,950 L

Retrofitting total 50w+ Fluorescent

2 X 4' Strips

RKLN24N32

32W

without Lens

4,500 L

Retrofitting total 70w+ Fluorescent

2 X 4' Strips

RKLN24F36

36W

Frosted Lens

4,150 L

Retrofitting total 70w+ Fluorescent

2 X 4' Strips

RKLN24N50

50W

without Lens

7,050 L

Retrofitting total 120w+ Fluorescent

3 X 4' Strips

RKLN34F40

40W

Frosted Lens

5,200 L

Retrofitting total 80w+ Fluorescent

4 X 4' Strips

RKLN44F50

50W

Frosted Lens

6,450 L

Retrofitting total 100w+ Fluorescent

4 X 4' Strips

RKLN44N50

50W

without Lens

6,500 L

Retrofitting total 120w+ Fluorescent

* Ordering information is for reference only. Some product configurations are not available. Please consult spec sheets for specific product availability and for further details.
