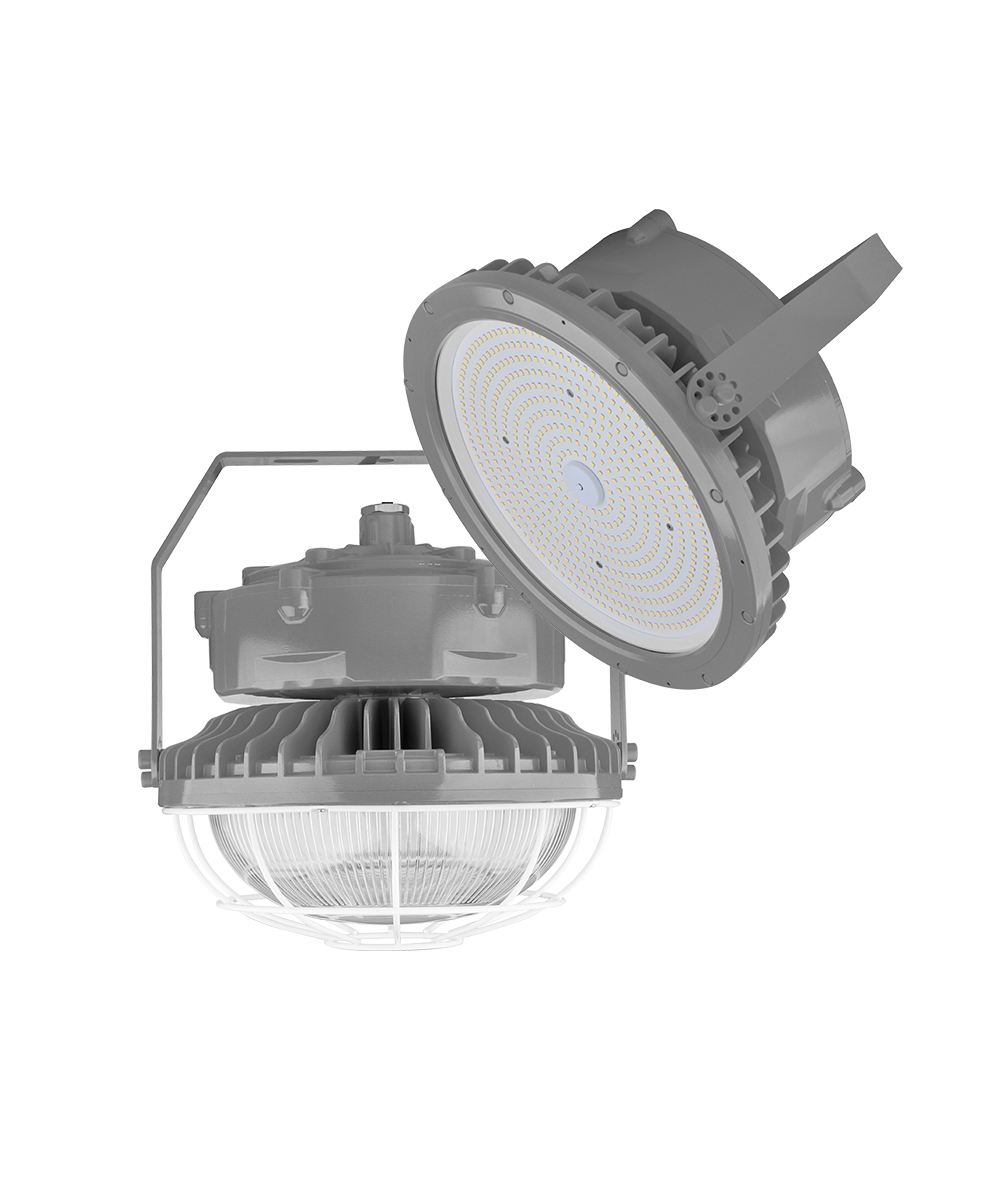

FHZR series LED Hazardous Location Lights

The FHZR series is UL Listed Class I, Division 2, Group A, B, C, D hazardous location lights for industrial applications, and comes with IP66, UL 1598, UL 8750 and UL 844 ratings. Rugged construction ensures its long-life and safe operation. It runs much cooler than equivalent incandescent and metal halide fixtures, can be used in hazardous area that has a lower ignition temperature threshold.

– Limited Warranty: 5 years
– Efficacy: up to 155 LPW
– Lumen Output: 7,200 – 23,250 L
– Wattage: 60W, 100W, 150W

Price & Availability Need Help?

Features SPECIFICATIONS Downloads

Find Rebate Free Layout

From 7,200 lm to 23,250 lm

Specs & Variations

Model	Wattage	Lumen
		with flat lens	with flat lens & wire guard	with globe	with globe & wireguard
FHZR 060	60w	8,400 lm	8,100 lm	7,800 lm	7,200 lm
FHZR 100	100w	15,000 lm	14,500 lm	14,500 lm	13,500 lm
FHZR 150	150w	23,250 lm	22,500 lm	21,750 lm	21,000 lm

* Lumen at 5000k CCT

Build Your Light

Family	Model	Color Temperature	Input Voltage	Lens Type	Housing Color	Optional Adds-on
FHZR
	060 - 60w	30 - 3000K ¹	UV - 120-277v	CG - Clear flat	GR - Gray	WG - Wireguard
	100 - 100w	40 - 4000K ¹	HV - 277-480v ²	SG - Frosted globe	XX - Other ¹
	150 - 150w	50 - 5000K
		57 - 5700K ¹
		65 - 6500K ¹

* Ordering information is for reference only. Some product configurations are not available. Please consult spec sheets for specific product availability and for further details.
1) available for special order; 2) 150w models only
