Features
DLC QPL v5.1 Listed
The DesignLights Consortium® (DLC) is a non-profit organization promotes high-quality, energy-efficient lighting products in collaboration with utilities and energy efficiency program members, manufacturers, lighting designers. DLC Listed high performing LED lighting products may qualify for rebates.

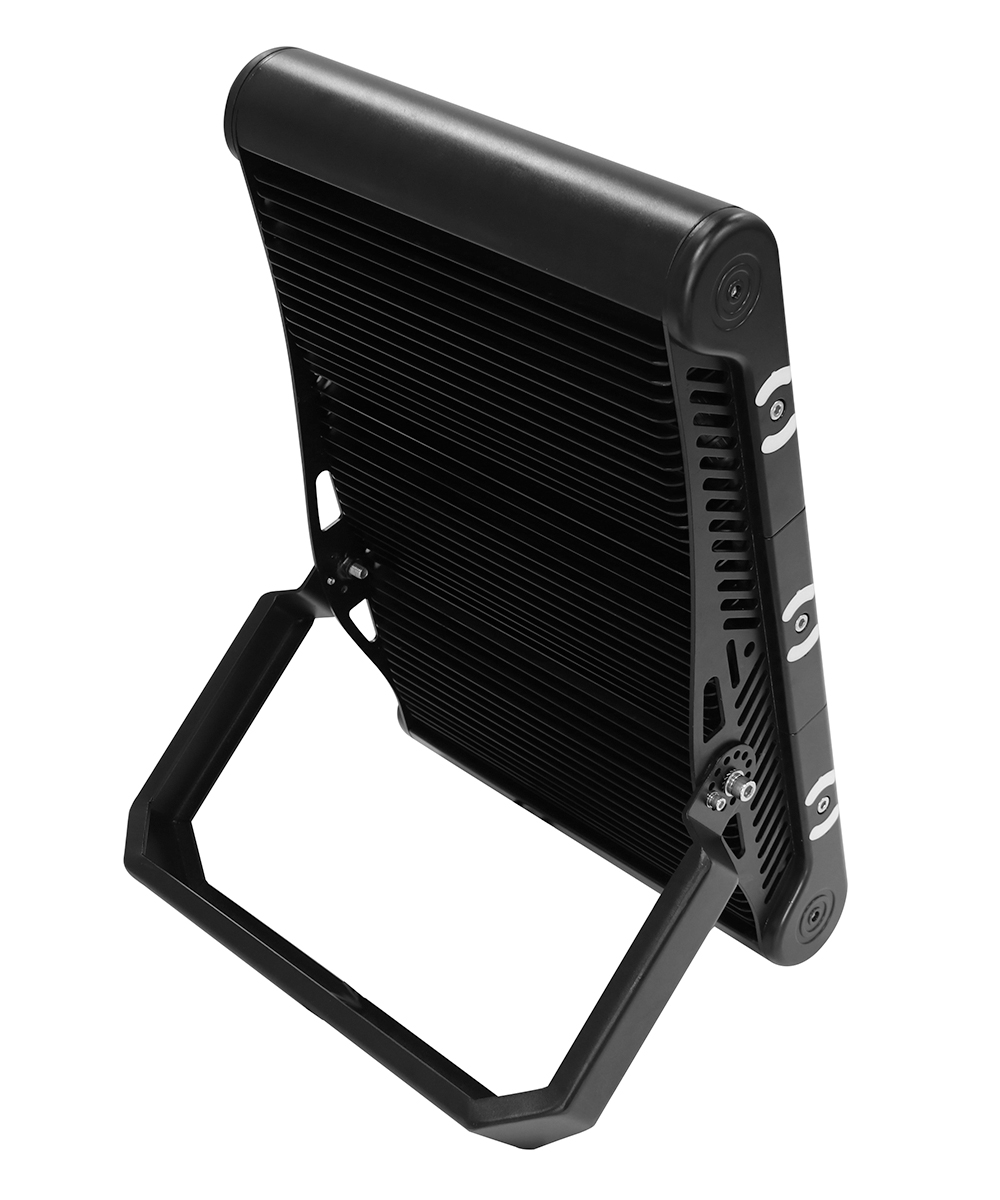

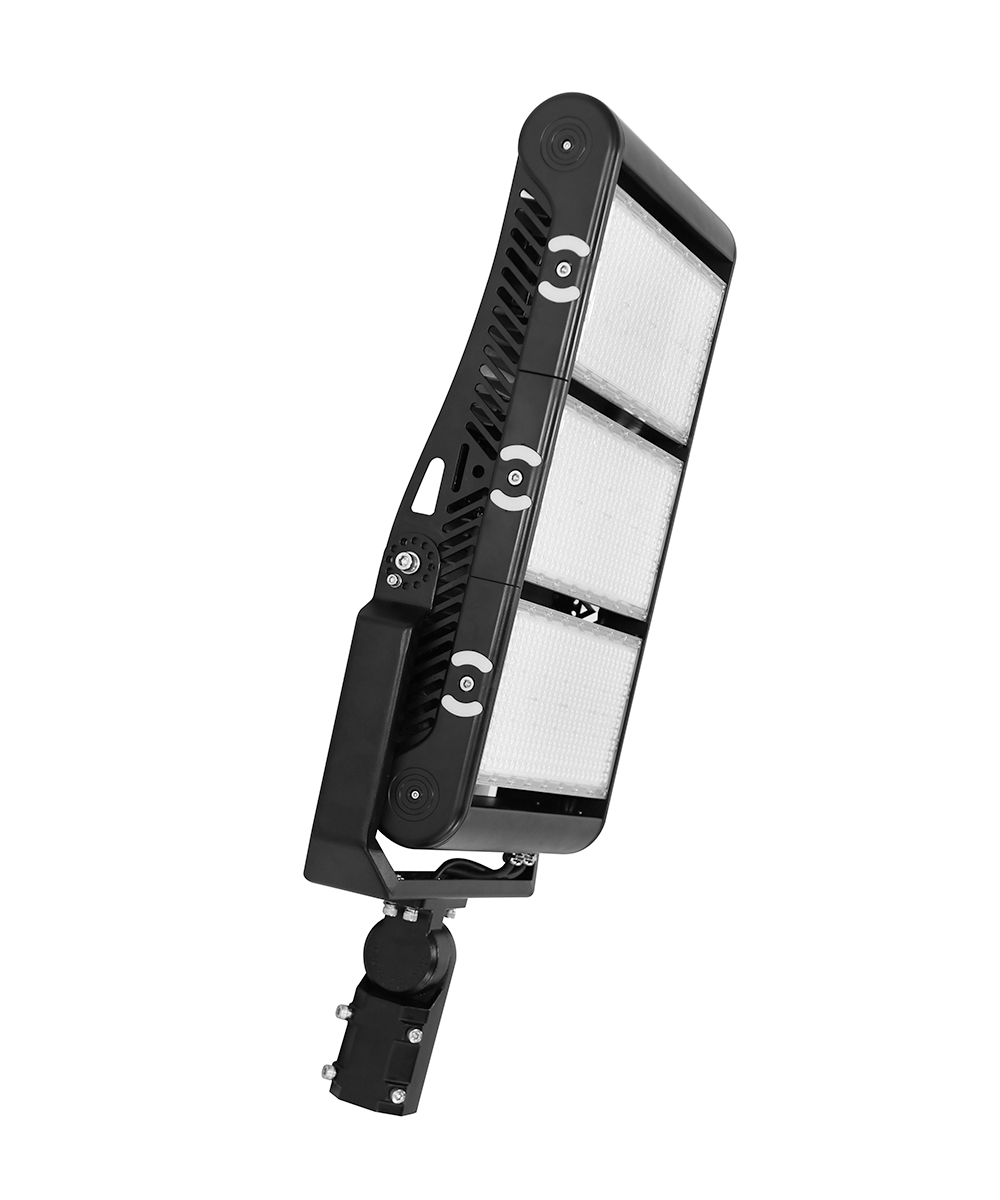

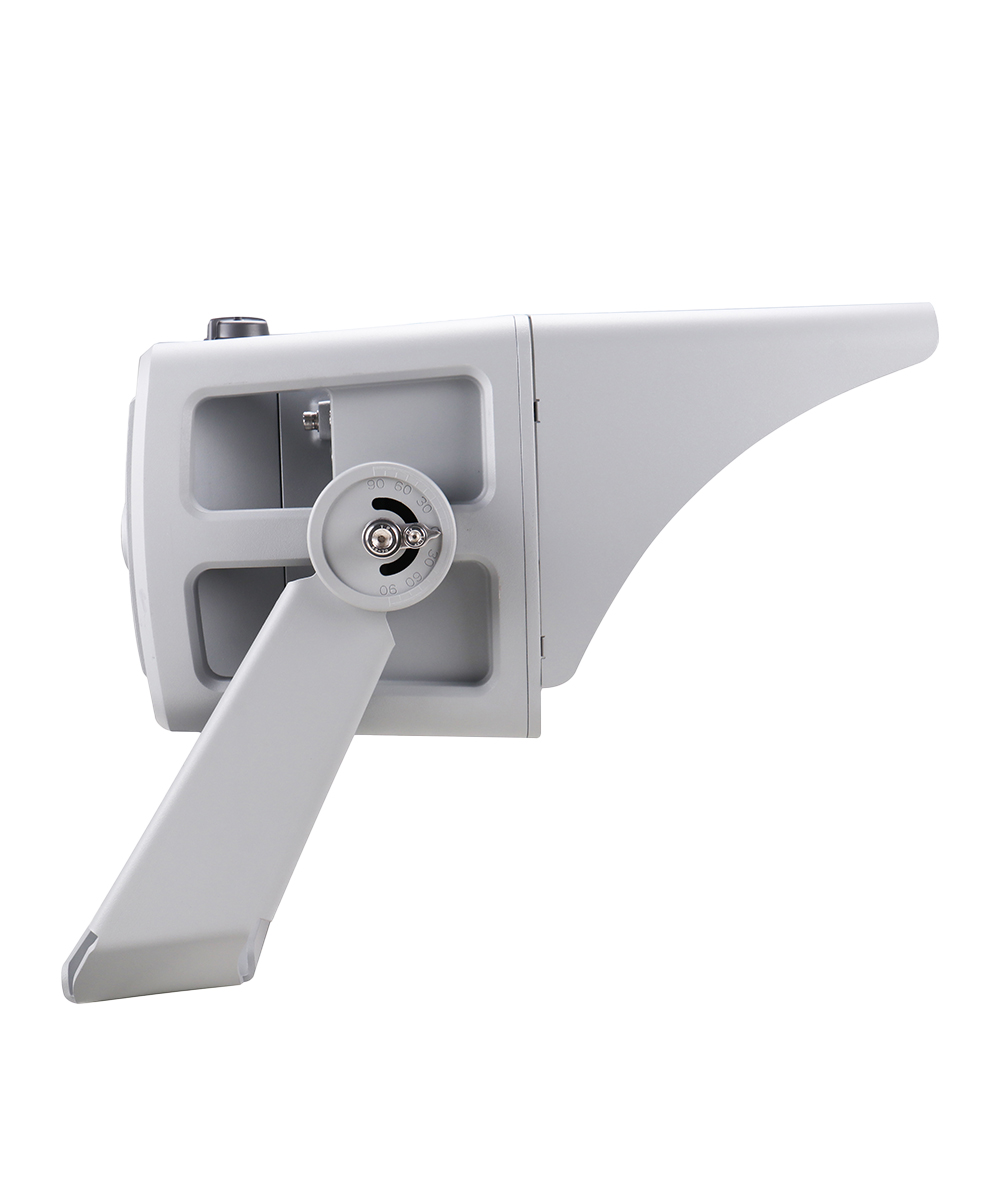

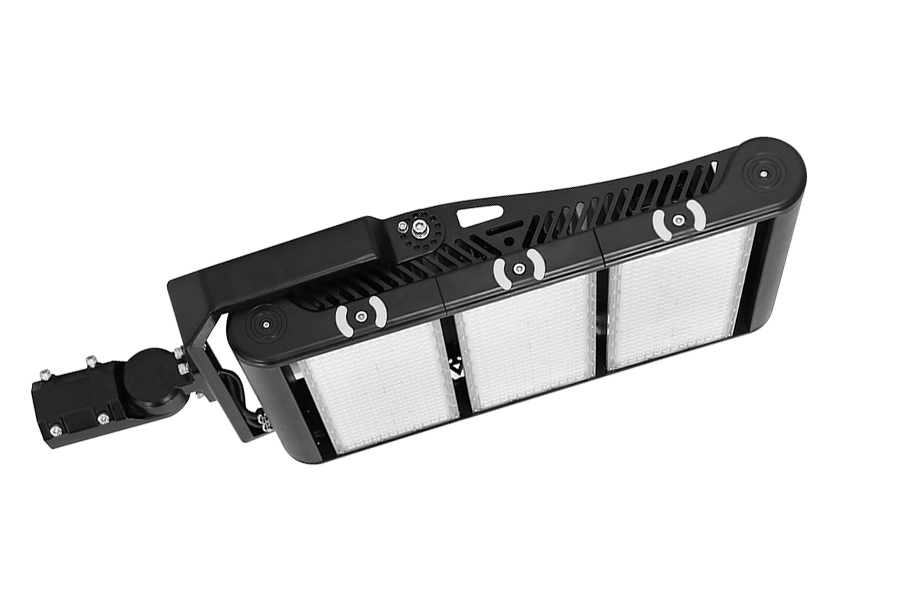

Angle Adjustable Modules
Light modules can be adjusted to designated angle for different specification needs.
Optional Photocontrol
Optional photocell control that is triggered to allow power supply when light levels fall below a specified value and then switch the supply off when the light level reaches another designated value.
IP 65 Rated
IP rated as “dust tight” and protected against water jet.
Specs & Variations
| Model | LED Wattage | Lumen@5000K | Efficacy@5000K | Lumen@3000K | Efficacy@3000K |
|---|---|---|---|---|---|
| FFHL-500 | 500w | 68,826 lm | 138 lm/w | 67,546 lm | 135 lm/w |
| FFHL-750 | 750w | 104,386 lm | 138 lm/w | 102,569 lm | 135 lm/w |
| FFHL-1000 | 1000w | 139,061 lm | 139 lm/w | 135,986 lm | 135 lm/w |
Build Your Light
| Family | Model | Input Voltage | Color Temperature | Light Distribution | Options |
FFHL |  | | | | |
500 - 500w | UV - 120-277v | 30 - 3000K 1 | D40 - 40° | SF - slipfitter mount | |
750 - 750w | HV - 277-480v | 40 - 4000K 1 | D60 - 60° 2 | AM - arm mount | |
1000 - 1000w | 50 - 5000K | D90 - 90° 2 | JB - IP65 junction box | ||
57 - 5700K 1 | SP - secondary surge protector 3 | ||||
PC - photocell control 3 | |||||
* Ordering information is for reference only. Some product configurations are not available. Please consult spec sheets for specific product availability and for further details.
1) available for special order; 2) extra cost may apply; 3) requires JB option
Documents & Downloads

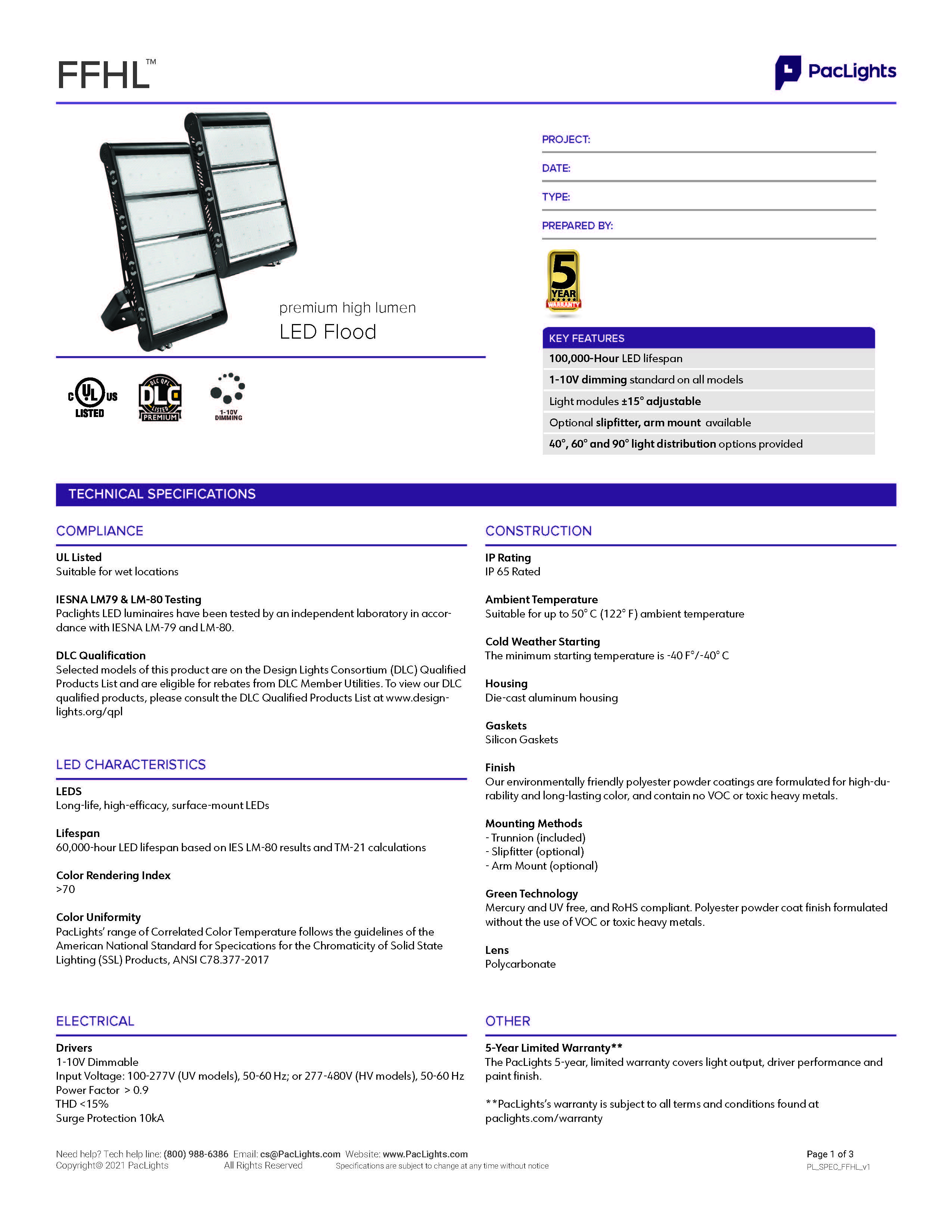

  FFHL series Product Specification Sheet |
* specifications are subject to change without notice.
FFHL series Installation Guide
* installation instructions are subject to change without notice.
Download IES Files:
40° Beam (standard)
FFHL-500-D40 | FFHL-750-D40 | FFHL-1000-D40
60° Beam
FFHL-500-D60 | FFHL-750-D60 | FFHL-1000-D60
90° Beam
FFHL-500-D90 | FFHL-750-D90 | FFHL-1000-D90
*IES files might not cover all options
| wdt_ID | QPL Model No. | Product ID | Version | Classification | Primary Use |
|---|---|---|---|---|---|
| 196 | FFHL-1000-HV-30-D40-Z-[SF;AM;3M;FM][WG;blank][SP10;SP20;blank]C | PL79WRORBDK4 | 5.1 | Premium | Outdoor Pole/Arm-Mounted Area and Roadway Luminaires |
| 197 | FFHL-1000-HV-30-D40-Z-[SF;AM;3M;FM][WG;blank][SP10;SP20;blank]C | PLHBRVTI72MY | 5.1 | Premium | Architectural Flood and Spot Luminaires |
| 198 | FFHL-1000-HV-40-D40-Z-[SF;AM;3M;FM][WG;blank][SP10;SP20;blank]C | PLFB9RCXPH5V | 5.1 | Premium | Outdoor Pole/Arm-Mounted Area and Roadway Luminaires |
| 199 | FFHL-1000-HV-40-D40-Z-[SF;AM;3M;FM][WG;blank][SP10;SP20;blank]C | PLK5HZBYX1DD | 5.1 | Premium | Architectural Flood and Spot Luminaires |
| 200 | FFHL-1000-HV-50-D40-Z-[SF;AM;3M;FM][WG;blank][SP10;SP20;blank]C | PL75WGP5BD18 | 5.1 | Premium | Outdoor Pole/Arm-Mounted Area and Roadway Luminaires |
| 201 | FFHL-1000-HV-50-D40-Z-[SF;AM;3M;FM][WG;blank][SP10;SP20;blank]C | PLSISBYRDCB5 | 5.1 | Premium | Architectural Flood and Spot Luminaires |
| 202 | FFHL-1000-HV-57-D40-Z-[SF;AM;3M;FM][WG;blank][SP10;SP20;blank]C | PL91ZQYQZ248 | 5.1 | Premium | Architectural Flood and Spot Luminaires |
| 203 | FFHL-1000-HV-57-D40-Z-[SF;AM;3M;FM][WG;blank][SP10;SP20;blank]C | PLY1B9OEAIJ1 | 5.1 | Premium | Outdoor Pole/Arm-Mounted Area and Roadway Luminaires |
| 204 | FFHL-1000-UV-30-D40-Z-[SF;AM;3M;FM][WG;blank][SP10;SP20;blank]C | PL4UJ3Z7YQVK | 5.1 | Premium | Architectural Flood and Spot Luminaires |
| 205 | FFHL-1000-UV-30-D40-Z-[SF;AM;3M;FM][WG;blank][SP10;SP20;blank]C | PLA8O1MY524D | 5.1 | Premium | Outdoor Pole/Arm-Mounted Area and Roadway Luminaires |
