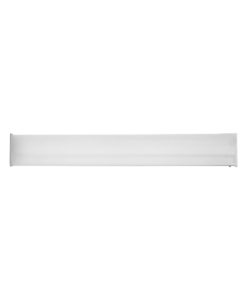

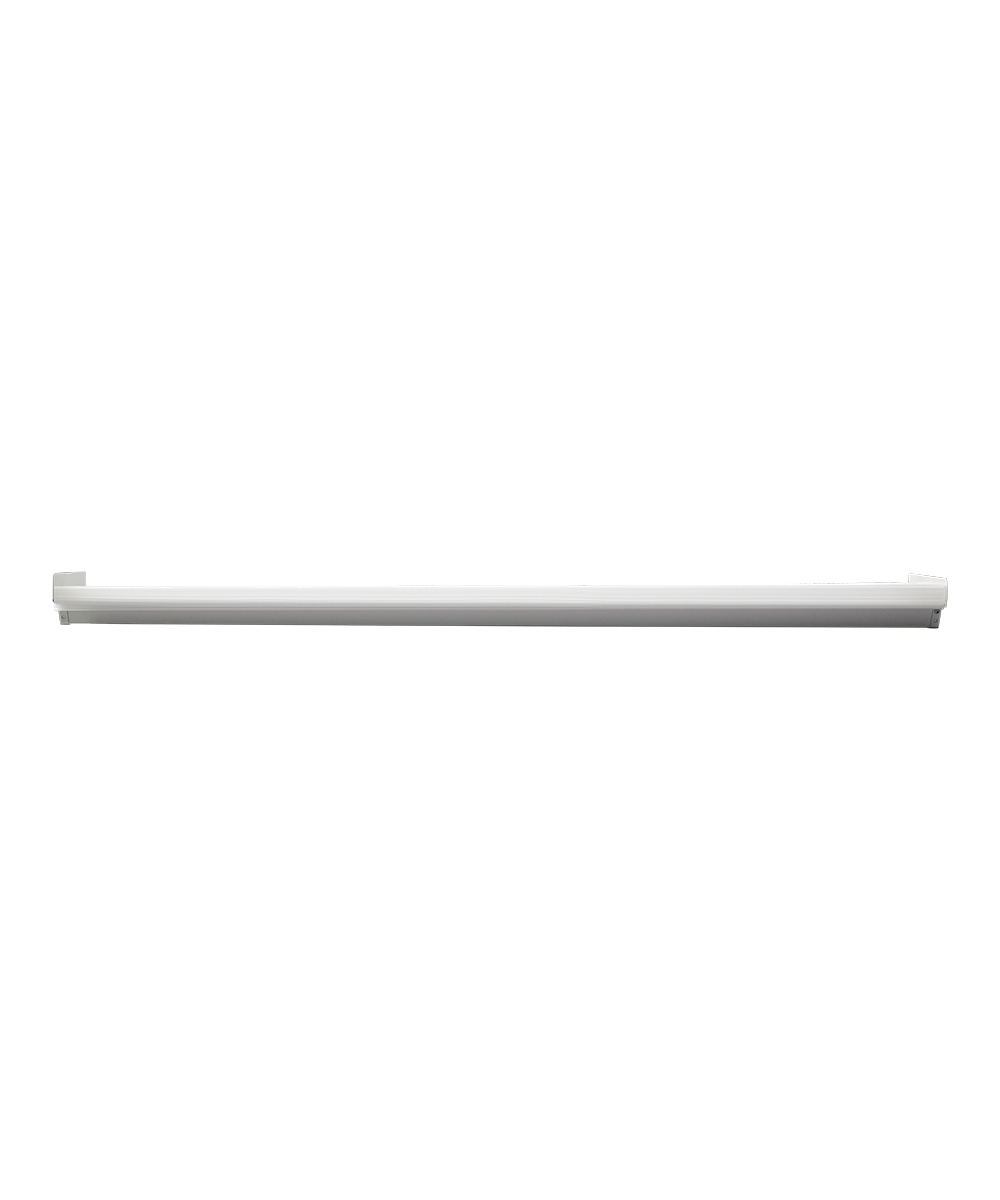

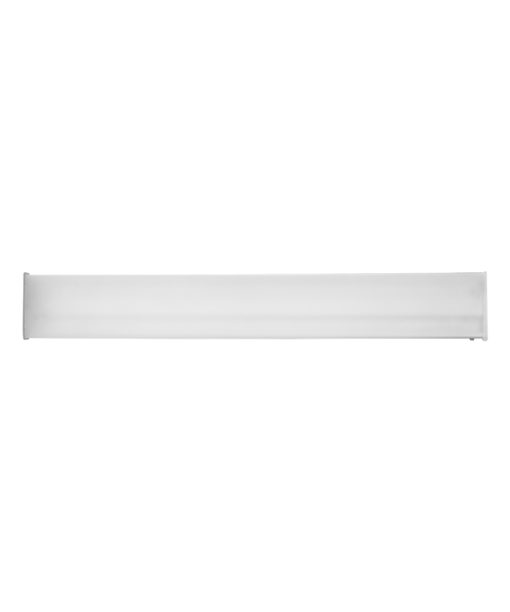

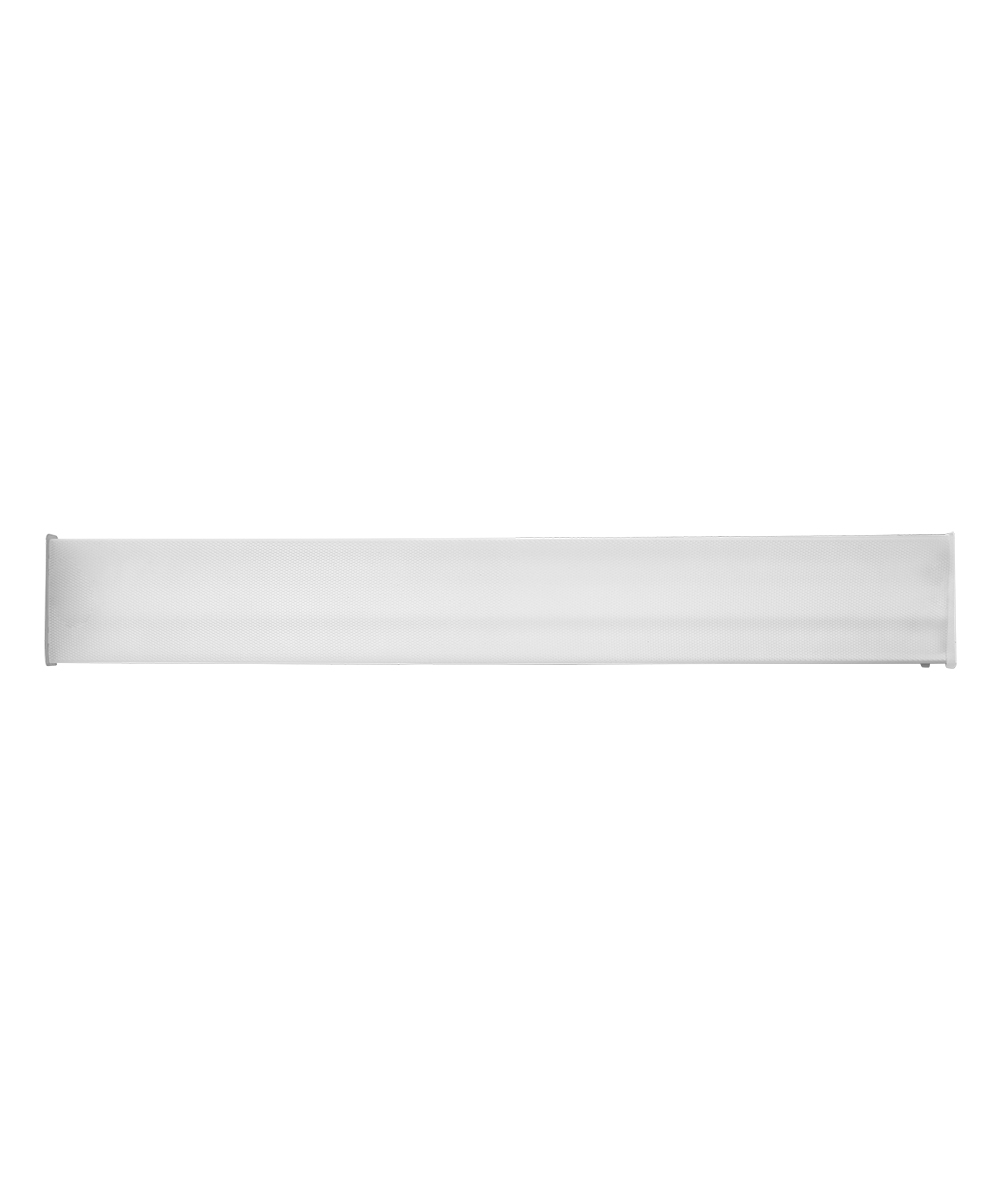

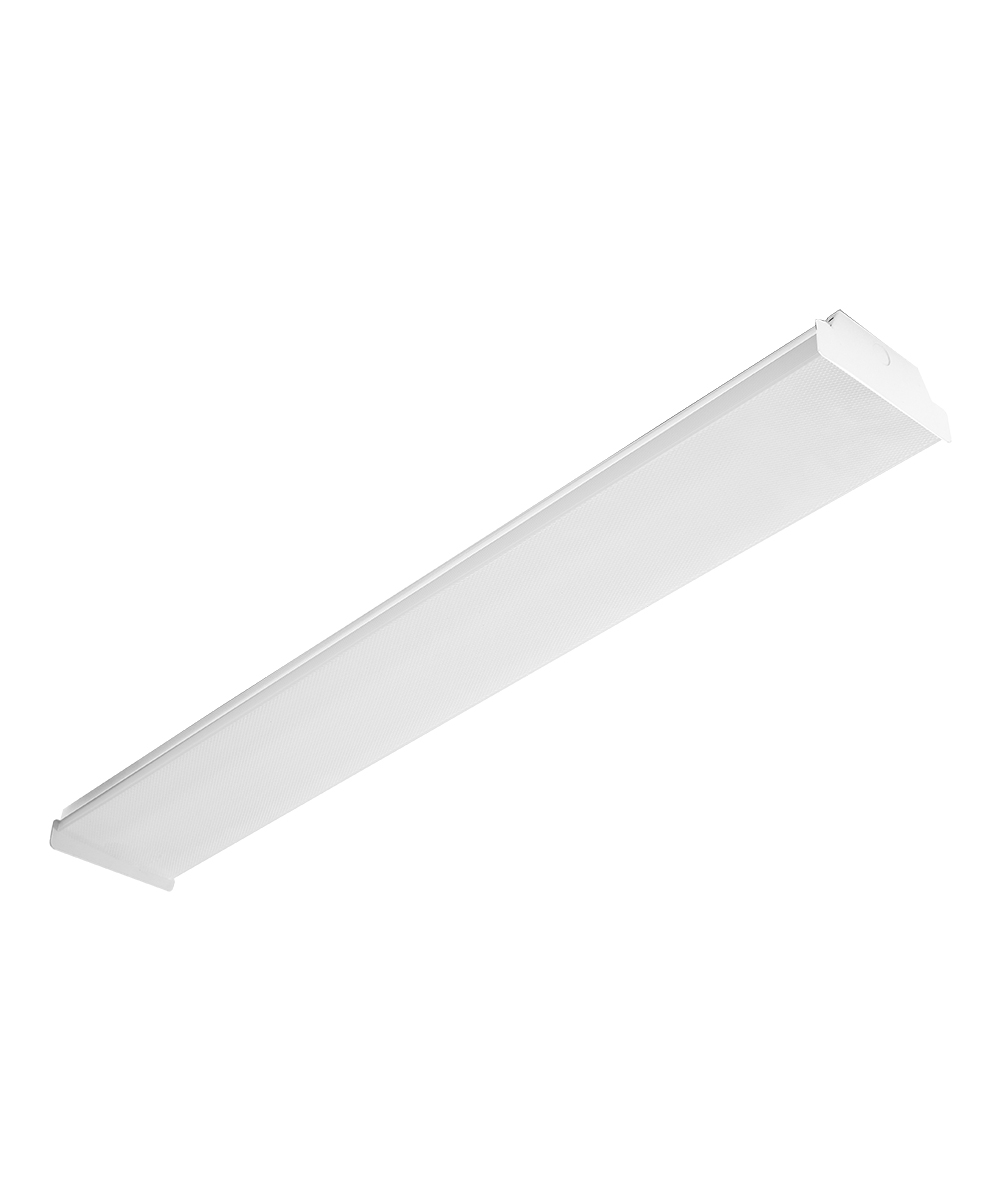

FSWA series LED Wraparound Lights

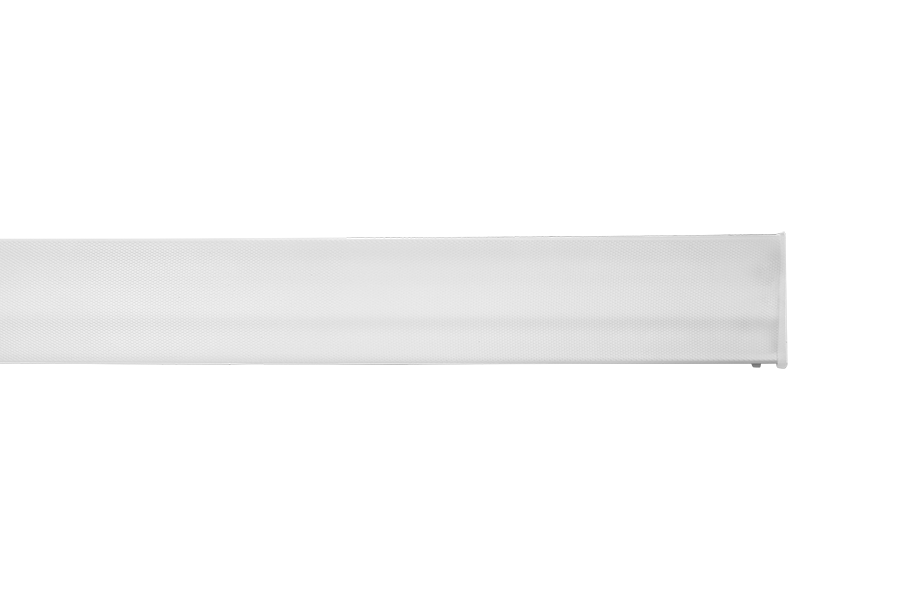

FSWA series is designed to deliver general ambient lighting for surface-mount ceiling/wall or pendant mount applications. The diffused lens delivers glare-free visual performance and a refined look. 3500K/4000K/5000K tunable, and 30w/35w/40w output/lumen field-adjustable, all on one 4′ fixture.

– Color (CCT) and Lumen Tunable
– Limited Warranty: 5 Years
– Efficacy: up to 138 LPW
– Lumen Output: 4,000 – 5,300 LM
– Wattage: 30 / 35 / 40 W Field-adjustable

Price & Availability Need Help?

Features SPECIFICATIONS Downloads

Find Rebate Free Layout

From 4,000 lm to 5,300 lm

Features

DLC QPL v5.1 Listed

The DesignLights Consortium® (DLC) is a non-profit organization promotes high-quality, energy-efficient lighting products in collaboration with utilities and energy efficiency program members, manufacturers, lighting designers. DLC Listed high performing LED lighting products may qualify for rebates.

CCT and Lumen Selectable

Choose lumen output and color temperature before installation with integrated switch

Optional Bi-level Control

Bi-Level Dimming control maximizes energy savings and is simpler than ever by combining an occupancy sensor, a timer, customizable three-step dimming switches and a photo sensor to detect the amount of ambient light surrounding the fixture.

Emergency Backup Available

When there is a power outage, the emergency backup driver and battery will power the
light for at least 90 mins.

Specs & Variations

FSWA-4D
wattage adjusted to	40W			35W			30W
CCT adjusted to	3500K	4000K	5000K	3500K	4000K	5000K	3500K	4000K	5000K
Lumen	5,200 lm	5,240 lm	5,280 lm	4,655 lm	4,690 lm	4,725 lm	4,080 lm	4,110 lm	4,140 lm

* all models are 3500k/4000k/5000k CCT field-adjustable.

Build Your Light

Family	Model	Optional Function	Optional Addons
FSWA
	4D - 4ft, 40w/35w/30w Power & 3500/4000/5000k CCT adjustable	EM - Emergency backup	VH - V-hooks for chains
		MCW - Bi-level dimming occupancy control
		PIR - Occupancy control

* Ordering information is for reference only. Some product configurations are not available. Please consult spec sheets for specific product availability and for further details.
