Gen.2

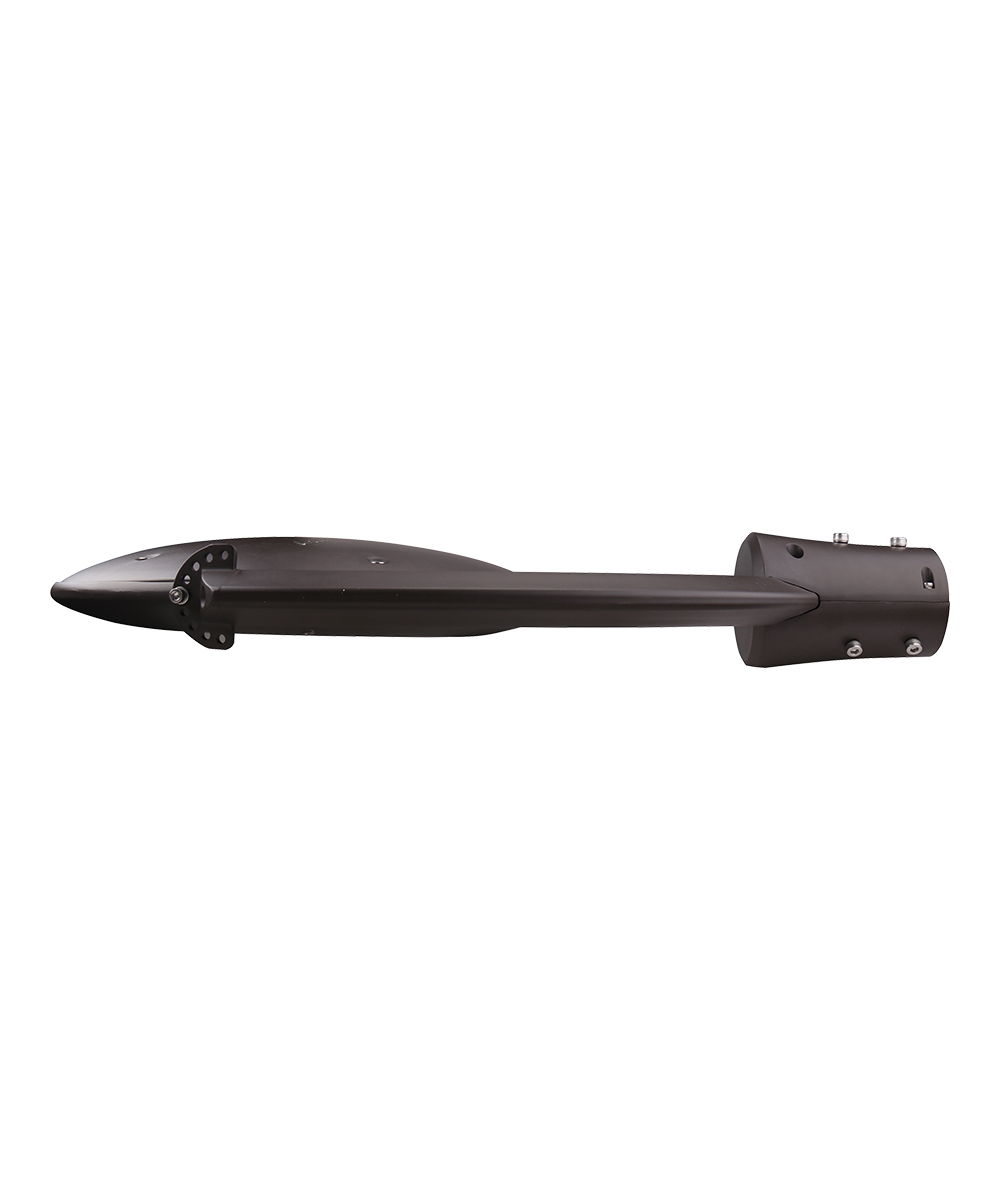

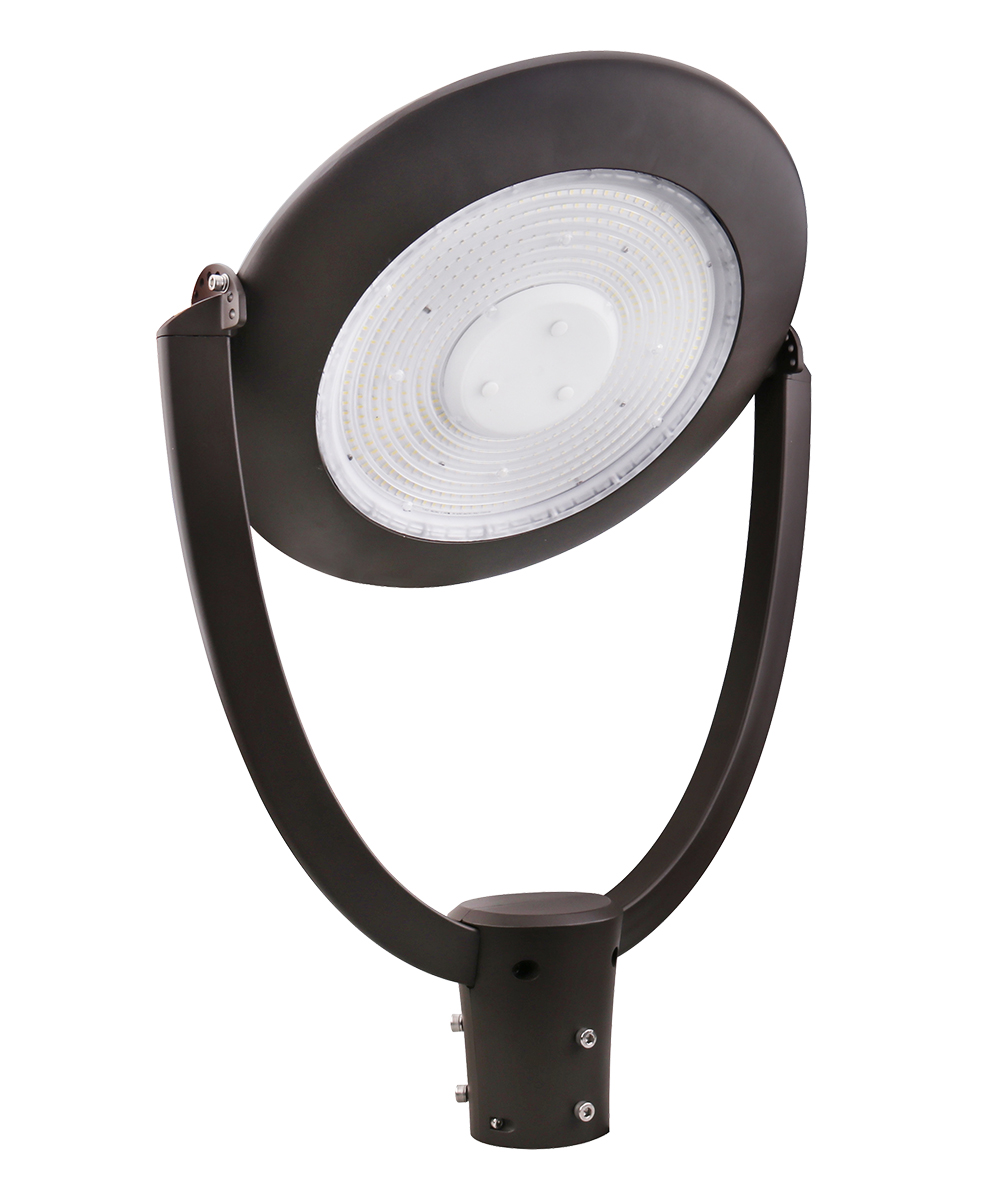

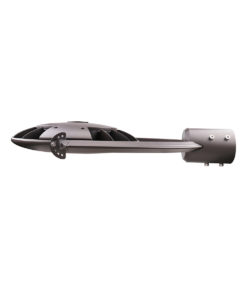

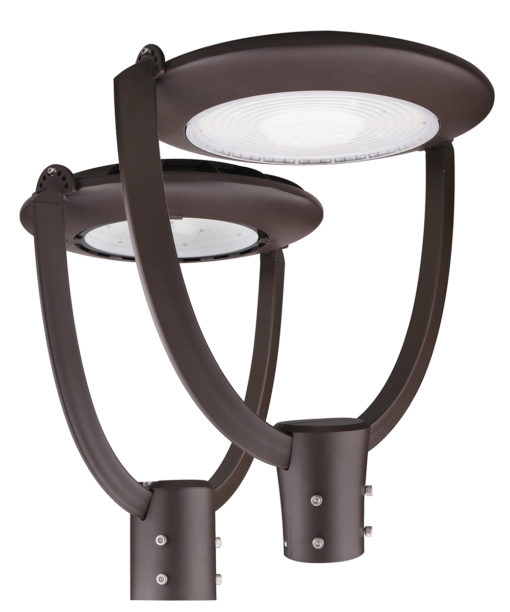

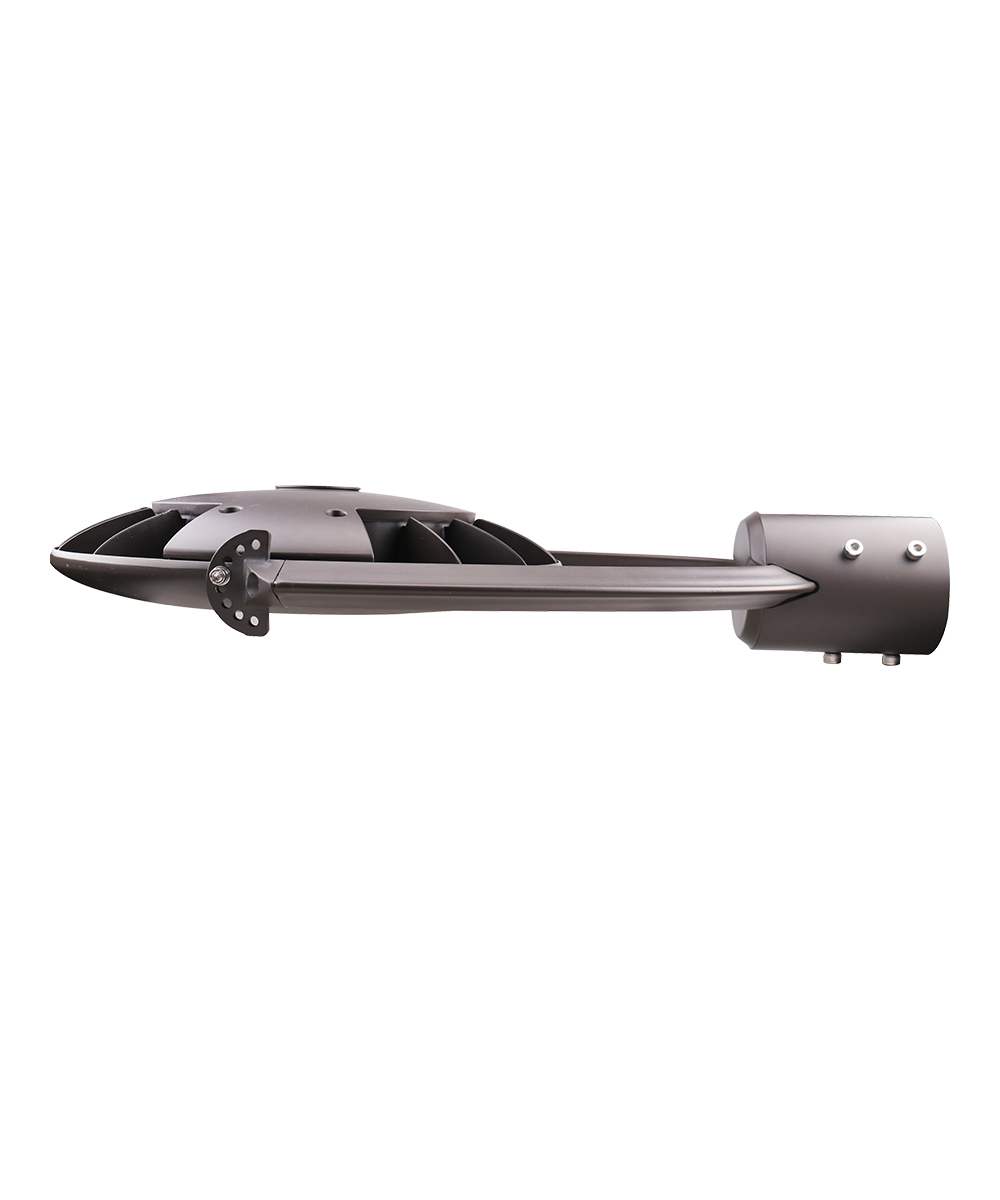

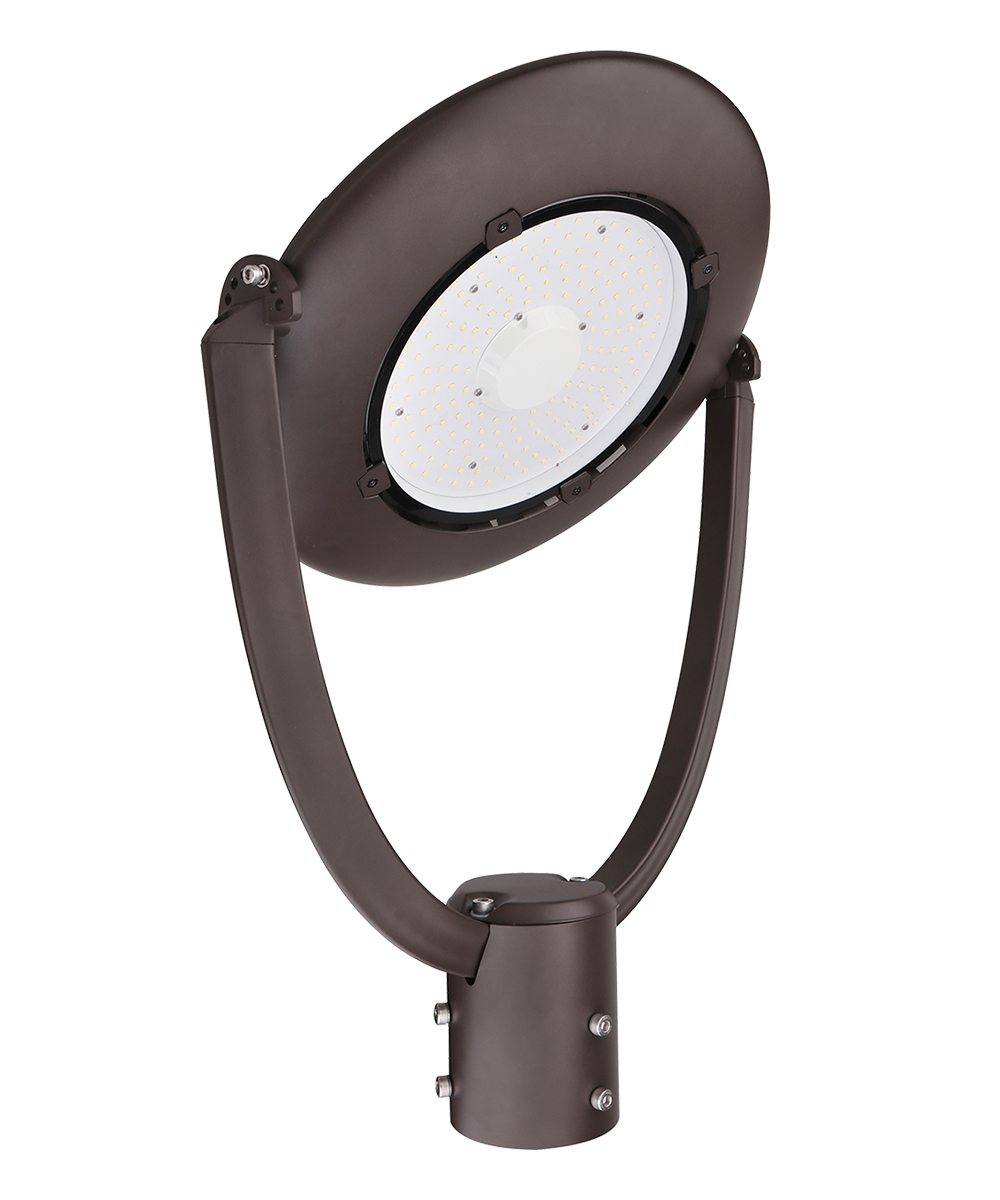

FPTA series LED Pole Top Area Lights
FPTA series LED Pole Top Area Lights - Image 2
FPTA series LED Pole Top Area Lights - Image 3
FPTA series LED Pole Top Area Lights - Image 4
FPTA series LED Pole Top Area Lights - Image 5

FPTA series LED Pole Top Area Lights

The FPTA series is a high-tech twist on an everyday fixture. Type V optics produce a round distribution which is perfect for parking lots and pathways. Cutting edge LED technology provides maintenance-free operation combined with significant reduction in energy consumption. Add all that to a standard tenon top pole and you’ve got a simple and effective lighting solution. With IES classification Type V, this FPTA distributes light in a wide and uniform 360° pattern that is perfect for large outdoor areas such as parking lots, corporate parks, and retail settings. Adjustable light module makes it easy to control the light beam. The 35/55/75W models are best with 10’/15′ poles and the 150W models are best suited for 20′ or taller poles.

– Limited Warranty: 5 years
– Efficacy: up to 134 LPW
– Lumen Output: 4,500 – 20,000 L
– Wattage: 35W / 55W / 75W / 150W

UL Listed  DLC QPL Premium

Features SPECIFICATIONS Downloads
Request a Quote Free Lighting Layout
From 4,500 lm to 20,000 lm
SKU: FPTA Categories: , Tag:

Features

DLC QPL v5.1 Listed

The DesignLights Consortium® (DLC) is a non-profit organization promotes high-quality, energy-efficient lighting products in collaboration with utilities and energy efficiency program members, manufacturers, lighting designers. DLC Listed high performing LED lighting products may qualify for rebates.

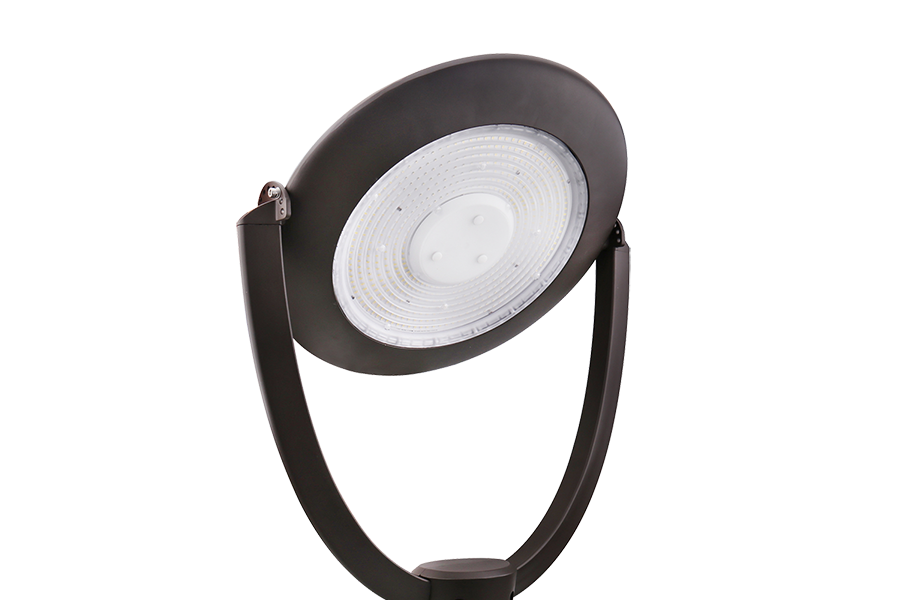

Angle Adjustable

Light module can be adjusted to designated angle for different specification needs.

Twist-lock Control Options

FPTA comes with ANSI C136.41 (7 pin NEMA) receptacle, compatible with most 3, 5 or 7 pin twist lock controls.

Optional Occupancy Control

Optional occupancy control let you customize and control
LED lighting, while reducing energy bills and qualifying you for additional rebate dollars.

Specs & Variations

Model LED Wattage 5000K 4000K 3000K
FPTA/2 - 035 35W 4,620 lm 4,550 lm 4,480 lm
FPTA/2 - 055 55W 7,260 lm 7,150 lm 7,040 lm
FPTA/2 - 075 75W 9,825 lm 9,675 lm 9,525 lm
FPTA/2 - 150 150W 20,100 lm 19,950 lm 19,500 lm

Build Your Light

Family Model Color Temp Options

FPTA/2
035 - 35w
30 - 3000K
MC - Bi-level motion and daylight control
055 - 55w
40 - 4000K
SP - 10KA surge protector
055 - 55w
50 - 5000K
TLP - Twist-lock photocontrol (on/off)
055 - 55w
3CCT - 3/4/5000K Selectable1
DLH - Twist-lock photo & daylight harvesting dimming control
DLM - Twist-lock photo, daylight harvesting, and midnight dimming control

* Ordering information is for reference only. Some product configurations are not available. Please consult spec sheets for specific product availability and for further details.
Note. 1) CCT selectable not available for 150w models.

Documents & Downloads

Specification & Sales Sheets
spec sheet

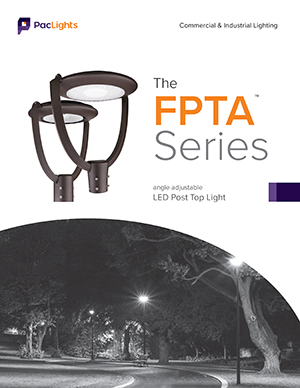

pdficonFPTA series (FPTA/2) Product Specification Sheet

Previous Generations:
pdficon(1st Generation) FPTA series Product Spec Sheet

* specifications are subject to change without notice.

pdficonFPTA/2 series Installation Guide

Previous Generations:
pdficon(1st Generation) FPTA series Installation Guide

* installation instructions are subject to change without notice.

Download IES Files

FPTA/2-055 | FPTA/2-075 | FPTA/2-150

Previous Generations:

(1st Generation)
FPTA35
FPTA35 3000K | FPTA35 4000K | FPTA35 5000K
FPTA55
FPTA55 3000K | FPTA55 4000K | FPTA55 5000K
FPTA75
FPTA75 3000K | FPTA75 4000K | FPTA75 5000K

*IES files might not cover all wattage, CCT or Light Distribution options

wdt_ID QPL Model No. Product ID Version Classification Primary Use
196FPTA/2-055-30-CG-a[MS;Blank]-[10SP;20SP;Blank]-d-BPLPEQYUREZ955.1PremiumOutdoor Pole/Arm-Mounted Decorative Luminaires
197FPTA/2-055-40-CG-a[MS;Blank]-[10SP;20SP;Blank]-d-BPLRH0IB5IGW75.1PremiumOutdoor Pole/Arm-Mounted Decorative Luminaires
198FPTA/2-055-50-CG-a[MS;Blank]-[10SP;20SP;Blank]-d-BPLRWMBLPU56N5.1PremiumOutdoor Pole/Arm-Mounted Decorative Luminaires
199FPTA/2-075-30-CG-a[MS;Blank]-[10SP;20SP;Blank]-d-BPLDVASXRGKCK5.1PremiumOutdoor Pole/Arm-Mounted Decorative Luminaires
200FPTA/2-075-40-CG-a[MS;Blank]-[10SP;20SP;Blank]-d-BPLXC7NLEMAY55.1PremiumOutdoor Pole/Arm-Mounted Decorative Luminaires
201FPTA/2-075-50-CG-a[MS;Blank]-[10SP;20SP;Blank]-d-BPLYLWKW4JG3M5.1PremiumOutdoor Pole/Arm-Mounted Decorative Luminaires
202FPTA/2-150-30-T2-a[MS;Blank]-[10SP;20SP;Blank]-d-BPL4IP6GNTNZY5.1PremiumOutdoor Pole/Arm-Mounted Decorative Luminaires
203FPTA/2-150-40-T2-a[MS;Blank]-[10SP;20SP;Blank]-d-BPLNYRMK8XCI45.1PremiumOutdoor Pole/Arm-Mounted Decorative Luminaires
204FPTA/2-150-50-T2-a[MS;Blank]-[10SP;20SP;Blank]-d-BPL90VI9PK4P65.1PremiumOutdoor Pole/Arm-Mounted Decorative Luminaires
QPL Model No.Product ID
