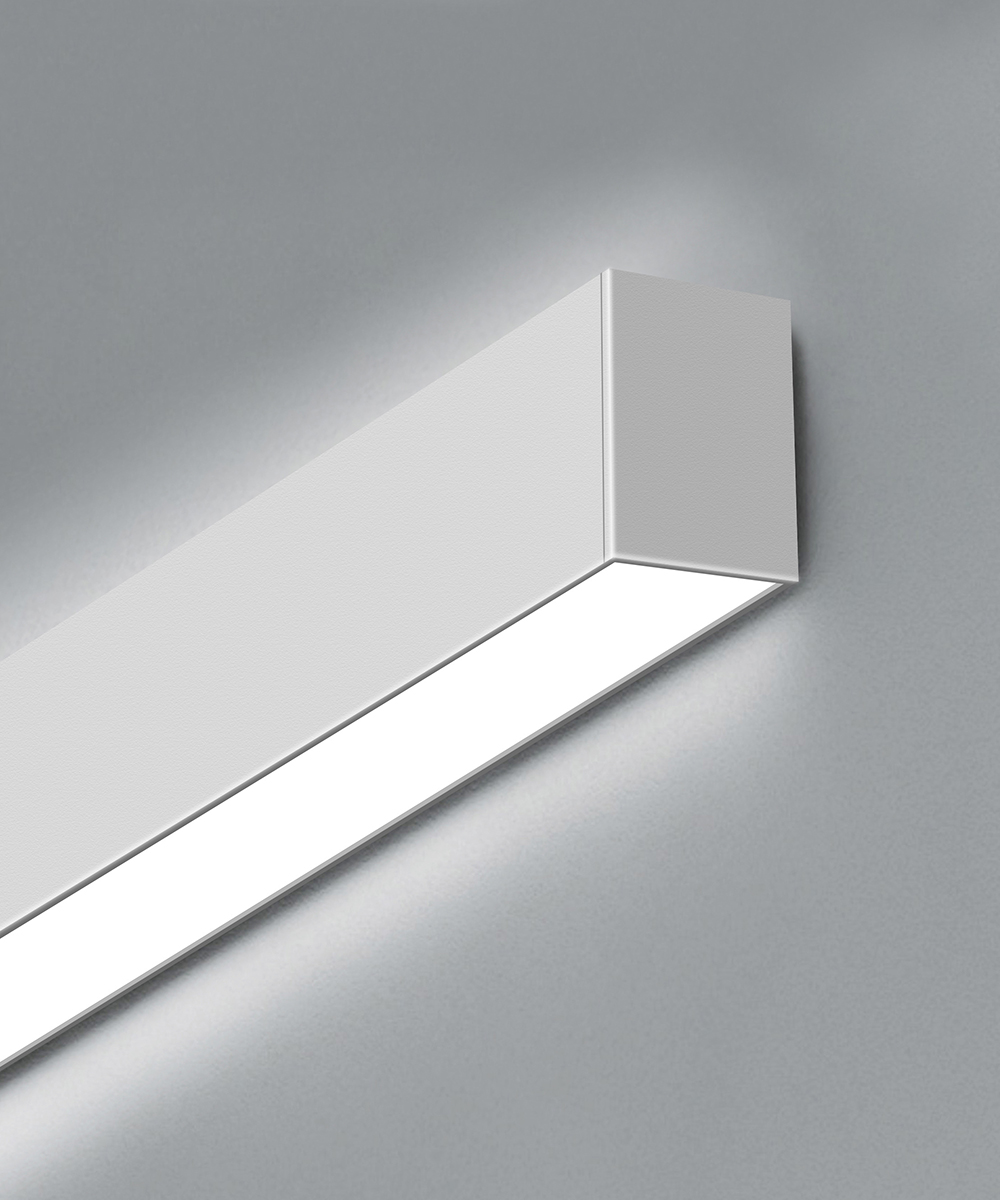

FLNA series Direct Indirect Linear Lighting

The FLNA series delivers both direct (downlight) and indirect (uplight) illumination in a single fixture. It features a variety of lens options, including diffused, louver, regressed, micro-optic, and wall wash, to support design flexibility and meet the most demanding lighting specifications. Versatile mounting options include suspension, surface, wall, and recessed installation, allowing for a consistent and cohesive look across any space. With available connectors, FLNA fixtures can be installed in continuous runs or arranged into creative shapes. Additional options include emergency battery backup, occupancy sensors, and Bluetooth networked controls for enhanced functionality.

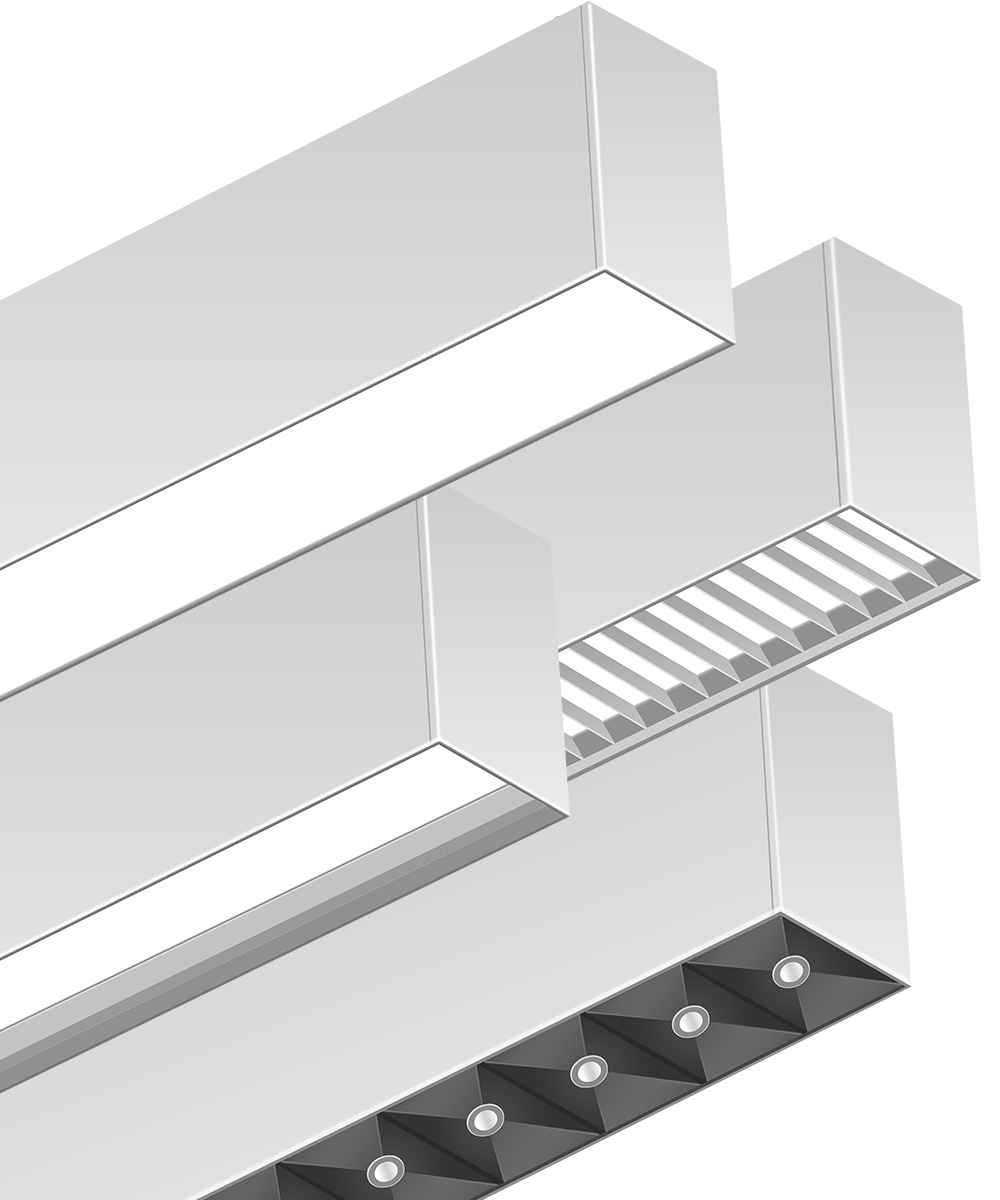

– Multiple Lens options
– Direct / Indirect Light Distribution Selectable on selected models
– Color & Power Selectable on all models

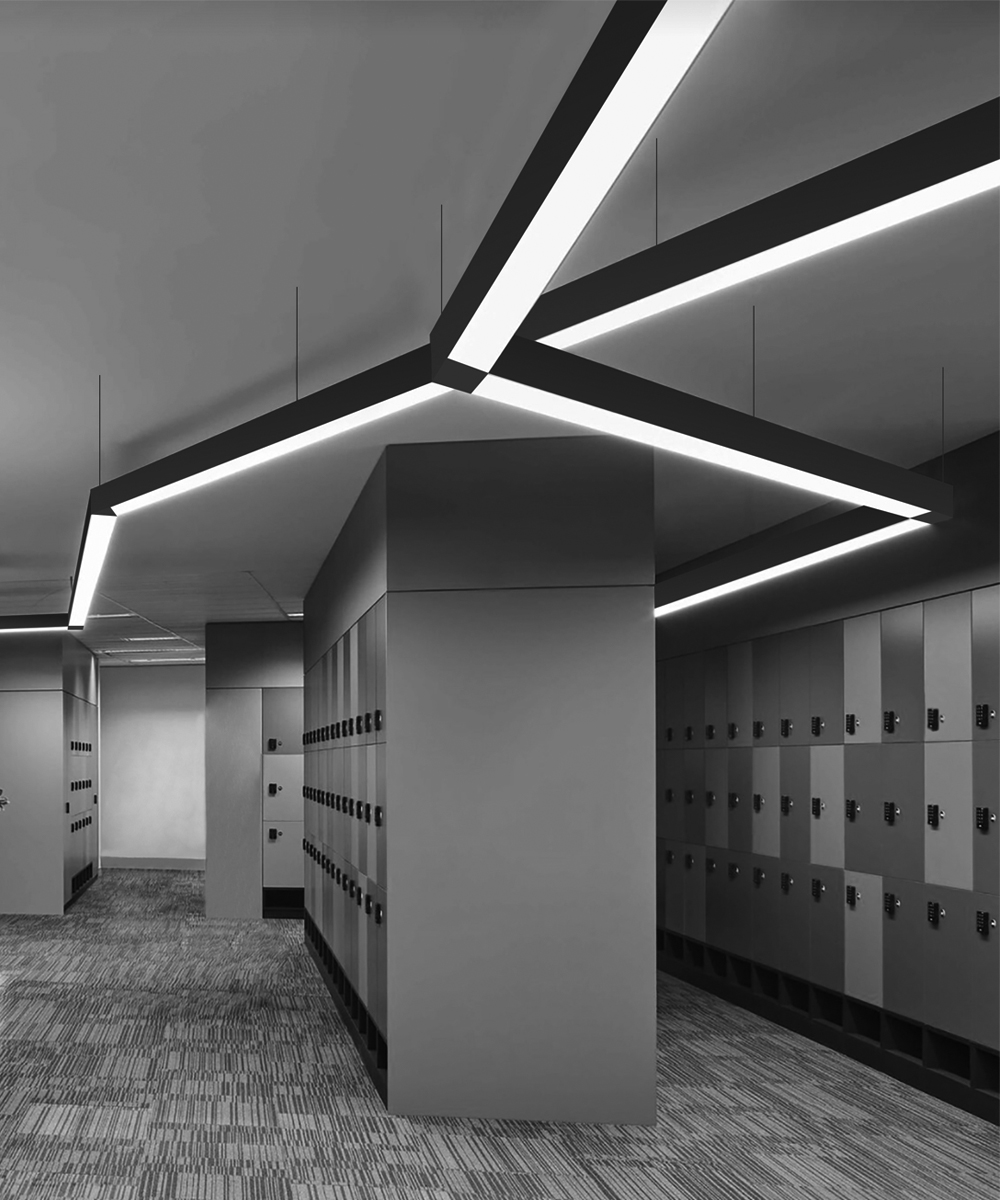

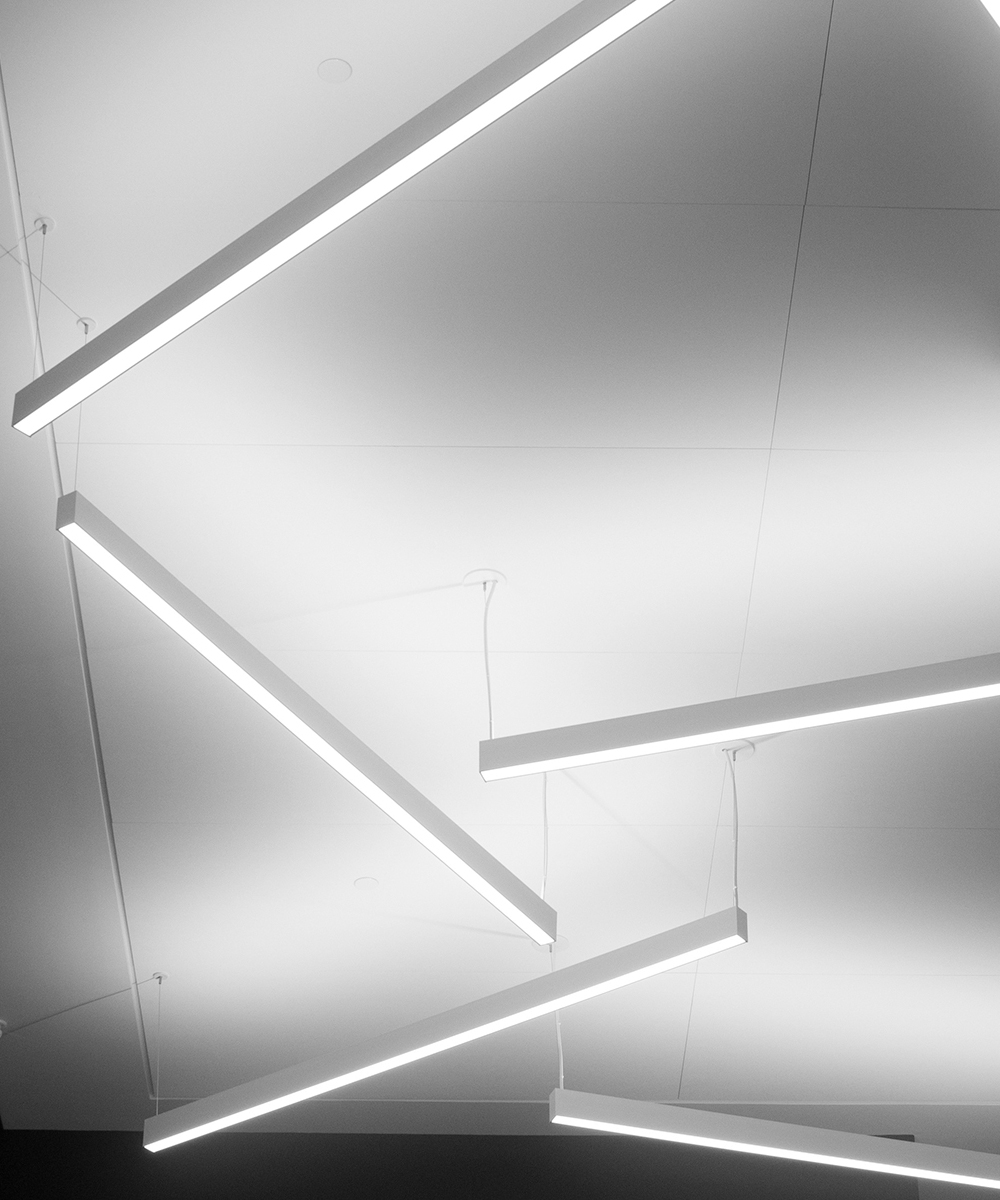

– Multiple Mounting options; Fixtures Linkable.
– Occupancy Sensor and Emergency Battery Backup options
– Lumen Output: 1,200 – 9,600 LM
– Wattage: 10 – 80 W

UL Listed

Features SPECIFICATIONS Downloads
Request a Quote Free Lighting Layout

From 1,200 lm to 9,600 lm
SKU: FLNA Categories: , Tag:

Specs & Variations

Lens Length Wattage 50% Direct / 50% Indirect 100% Direct
Lumen/Ft Total Lumen Lumen/Ft Total Lumen
Diffused 2' 20/15/10W 1,200 lm/ft 2,400 lm 1,050 lm/ft 2,100 lm
3' 30/23/15W 3,600 lm 3,150 lm
4' 40/30/20W 4,800 lm 4,200 lm
8' 80/60/40W 9,600 lm 8,400 lm
Louver 2' 20/15/10W 950 lm/ft 1,900 lm 650 lm/ft 1,300 lm
3' 30/23/15W 2,850 lm 1,950 lm
4' 40/30/20W 3,800 lm 2,600 lm
8' 80/60/40W 7,600 lm 5,200 lm
Regressed 2' 20/15/10W 1,100 lm/ft 2,200 lm 900 lm/ft 1,800 lm
3' 30/23/15W 3,300 lm 2,700 lm
4' 40/30/20W 4,400 lm 3,600 lm
8' 80/60/40W 8,800 lm 7,200 lm
Micro Optic Louver 2' 20/15/10W 1,150 lm/ft 2,300 lm 900 lm/ft 1,800 lm
3' 30/23/15W 3,450 lm 2,700 lm
4' 40/30/20W 4,600 lm 3,600 lm
8' 80/60/40W 9,200 lm 7,200 lm

* all models are power/wattage and 3000k/3500k/4000k CCT field selectable.

Build Your Light

Family Model CCT Light Distribution Lens Housing Color Mount Option

FLNA
2D-20/15/10 - 2ft length; 20/15/10w selectable
30/35/40 - 3000/3500/5000K Selectable, CRI >82
A - Direct & Indirect (downlight & uplight) 0/10/30/40/70/90% Selectable
DF - Diffused Flat
WH - White

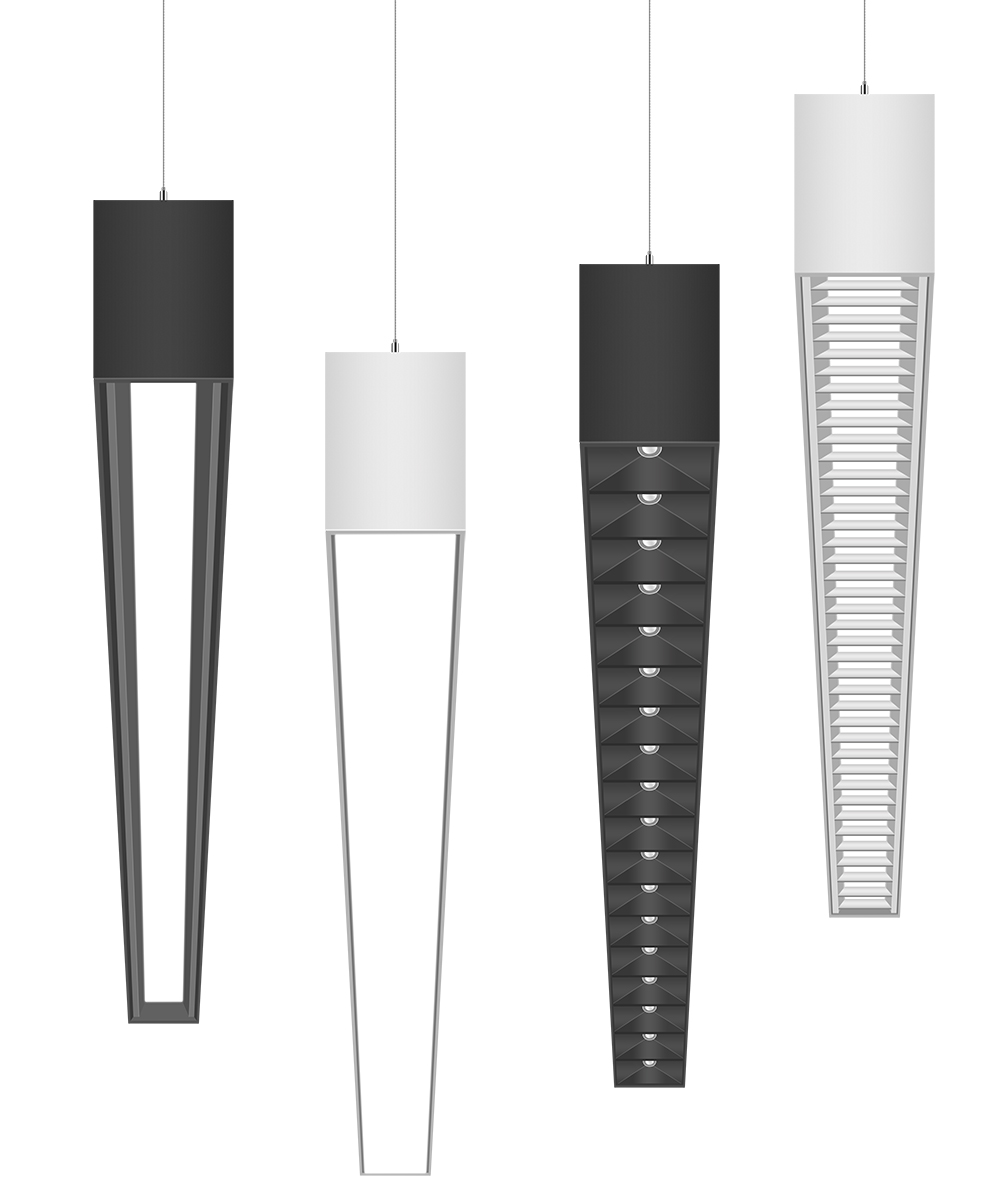

P - Suspended
WBN - Bluetooth NLC
3D-30/23/15 - 3ft length; 30/23/15w selectable
D - Direct (downlight) Only
LV - Louver
BL - Black

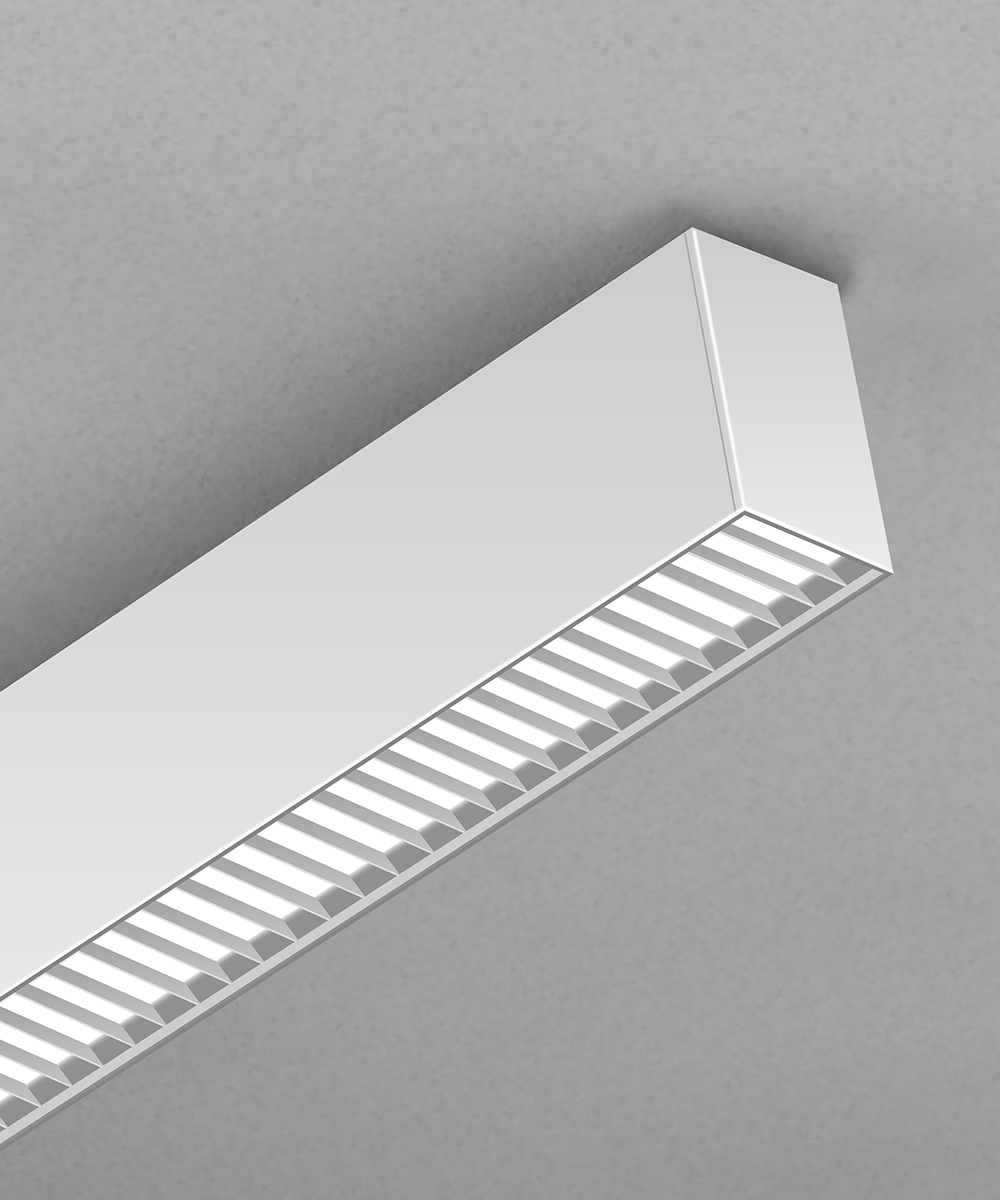

S - Surface
EMB - Emergency Battery Backup
4D-40/30/20 - 4ft length; 40/30/20w selectable
RL - Regressed

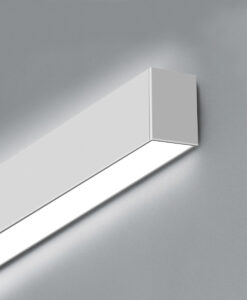

W - Wall
90CRI 2 - 90+ CRI
8D-80/60/40 - 8ft length; 80/60/40w selectable
MR - Micro Optic Louver

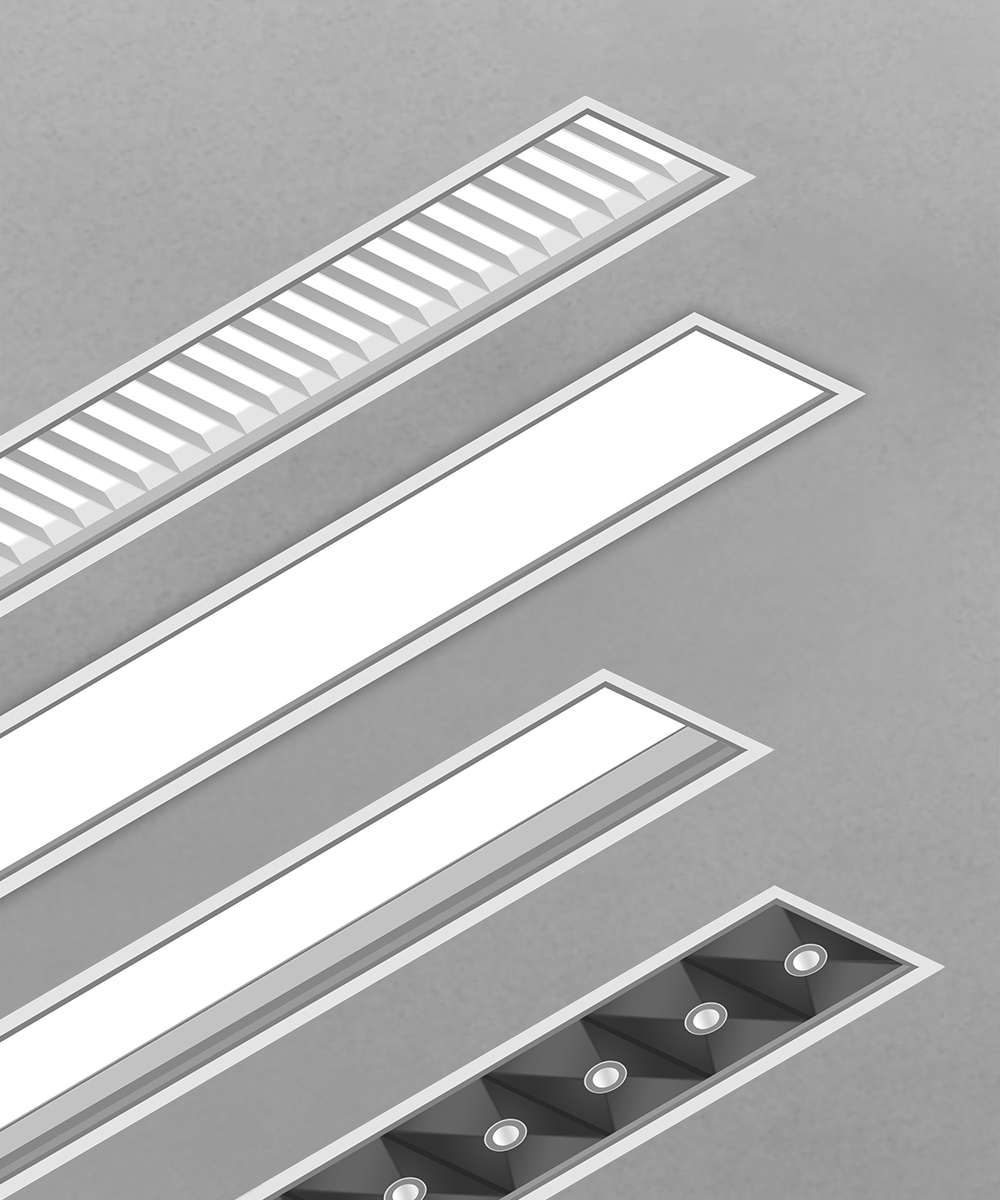

R 1 - Recessed
DIM1P 2 - 1% Dimming
WW - Diffused Wall Wash

* Ordering information is for reference only. Some product configurations are not available. Please consult spec sheets for specific product availability and for further details.
Note. 1) Recessed mounting is only available on light distribution code “D” (Direct Only) models. 2) 90+ CRI and Dim to 1% is Special Orders.

Documents & Downloads

Specification & Sales Sheets
spec sheet

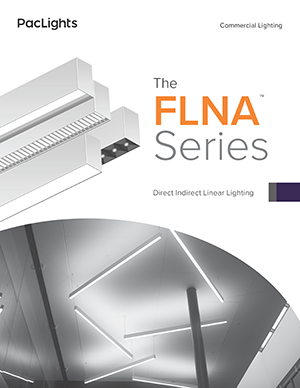

pdficonFLNA series Product Specification Sheet

* specifications are subject to change without notice.

wdt_ID GENERATION SKU DISTRIBUTION LENS IES File
1181st (Latest)FLNA-4D-40-AU-ANY100% Indirect(uplight)Diffused FlatDownload IES
1191st (Latest)FLNA-4D-40-AD1U9-DF10% Direct(downlight), 90% Indirect(uplight)Diffused FlatDownload IES
1201st (Latest)FLNA-4D-40-AD3U7-DF30% Direct(downlight), 70% Indirect(uplight)Diffused FlatDownload IES
1211st (Latest)FLNA-4D-40-AD5U5-DF50% Direct(downlight), 50% Indirect(uplight)Diffused FlatDownload IES
1221st (Latest)FLNA-4D-40-AD7U3-DF70% Direct(downlight), 30% Indirect(uplight)Diffused FlatDownload IES
1231st (Latest)FLNA-4D-40-AD9U1-DF90% Direct(downlight), 10% Indirect(uplight)Diffused FlatDownload IES
1241st (Latest)FLNA-4D-40-D-DFDirect(downlight) ONLYDiffused FlatDownload IES
1251st (Latest)FLNA-4D-40-AD1U9-LV10% Direct(downlight), 90% Indirect(uplight)LouverDownload IES
1261st (Latest)FLNA-4D-40-AD3U7-LV30% Direct(downlight), 70% Indirect(uplight)LouverDownload IES
1271st (Latest)FLNA-4D-40-AD5U5-LV50% Direct(downlight), 50% Indirect(uplight)LouverDownload IES
GENERATIONSKUDISTRIBUTIONLENSIES File

*IES files might not cover all options
