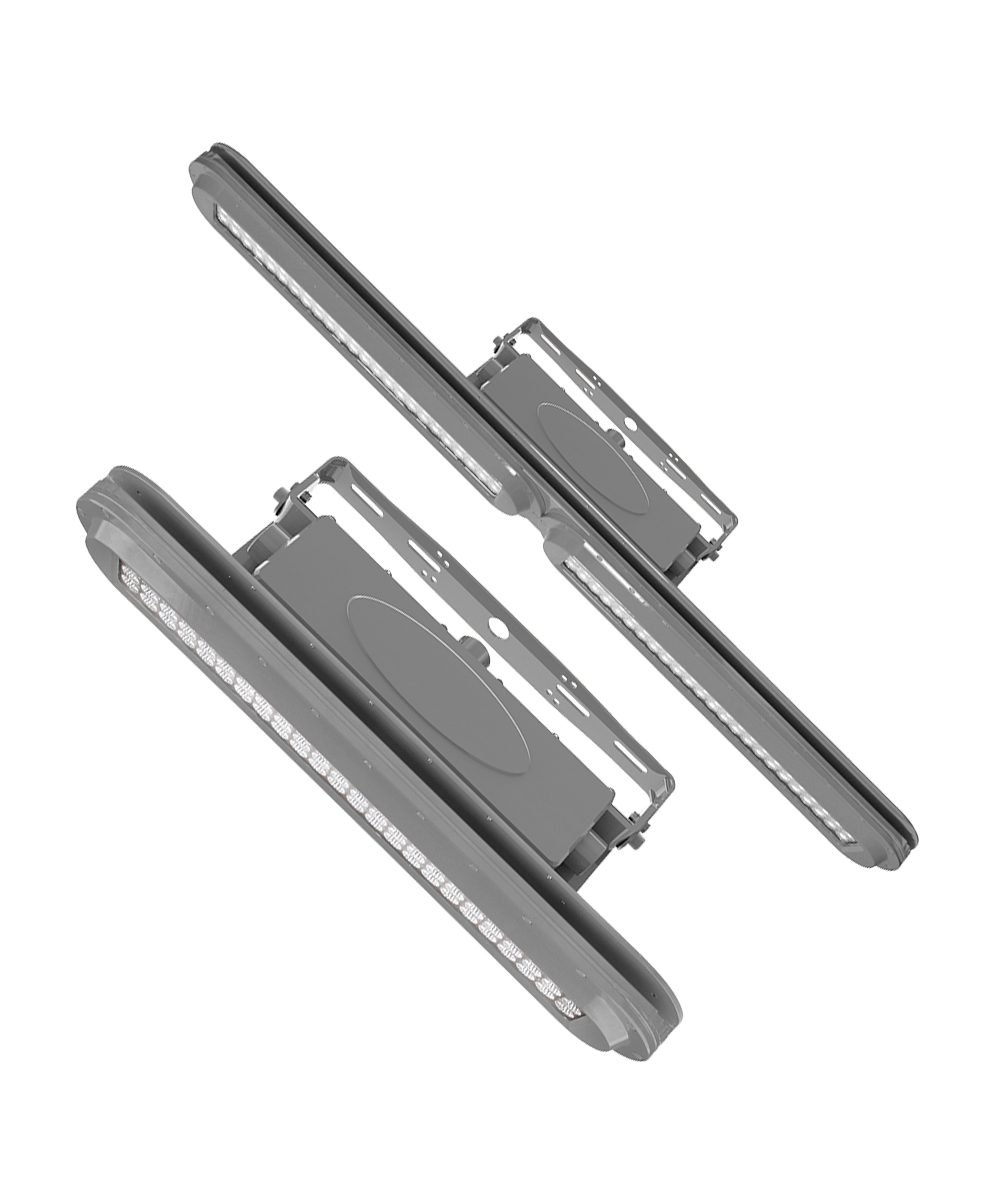

FHZL series LED Hazardous Location Lights

The FHZL series is UL Listed Class I, Division 2, Group A, B, C, D hazardous location lights for industrial applications, and comes with IP66, UL 1598, UL 8750 and UL 844 ratings. Rugged construction ensures its long-life and safe operation. It runs much cooler than equivalent incandescent and metal halide fixtures, can be used in hazardous area that has a lower ignition temperature threshold.

– Limited Warranty: 5 years
– Efficacy: up to 140 LPW
– Lumen Output: 5,400 – 16,800 L
– Wattage: 40W, 80W, 120W

Price & Availability Need Help?

Features SPECIFICATIONS Downloads

Find Rebate Free Layout

From 5,400 lm to 16,800 lm

Specs & Variations

Model	Wattage	Lumen
		110° Lens	60° / 80° Lens	20° / 30° Lens
FHZL 040	40w	5,600 lm	5,400 lm	5,600 lm
FHZL 080	80w	11,200 lm	10,800 lm	11,200 lm
FHZL 120	120w	16,800 lm	14,400 lm	16,800 lm

* Lumen at 5000k CCT

Build Your Light

Family	Model	Color Temperature	Input Voltage	Lens Type	Housing Color	Optional Adds-on
FHZL
	040 - 40w	30 - 3000K ¹	UV - 120-277v	110 - 110°	GR - Gray	WG - Wireguard
	080 - 80w	40 - 4000K ¹	HV - 277-480v ²	20 - 20° ³	XX - Other ¹	CN - Mounting chains
	120 - 120w	50 - 5000K		30 - 30° ³		PM - Pole mount
		57 - 5700K ¹		60 - 60° ³		SM - Surface mount
		65 - 6500K ¹		80 - 80° ³		TM - Trunnion mount

* Ordering information is for reference only. Some product configurations are not available. Please consult spec sheets for specific product availability and for further details.
1) available for special order; 2) 80w models only; 3) extra cost apply
