(DISCONTINUED) FLHA series LED Linear High Bays

THIS PRODUCT HAS BEEN DISCONTINUED

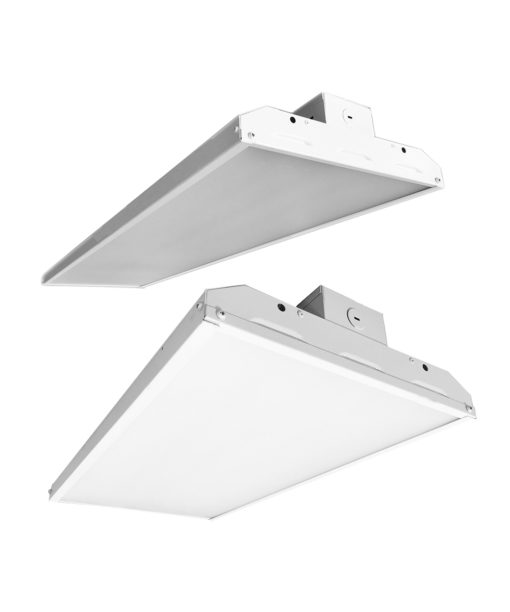

The FLHA Series Linear High Bay are high performance LED luminaires ranging from 90-321w and are available in Universal or in High Voltage. This product is designed for indoor application. Typically used for warehouses, gymnasium or buildings with high ceiling and high mounting heights. The FLHA high bay also has multiple mounting methods for various types of application.

– Limited Warranty: 7 years
– Efficacy: up to 130 LPW
– Lumen Output: 11,700 – 42,051 L
– Wattage: 90 – 321 W
– Input: 100-277 V (Optional 480V)

Price & Availability Need Help?

Features SPECIFICATIONS Downloads

Find Rebate Free Layout

From 11,700 lm to 42,000 lm

Specs & Variations

Model	Length	LED Wattage	Lumen@5000K	Efficacy@5000K	Lumen@4000K	Efficacy@4000K
FLHA 2D 090	2 ft	90w	11,790 lm	131 lm/w	11,232 lm	128 lm/w
FLHA 2D 110	2 ft	110w	14,410 lm	131 lm/w	14,300 lm	130 lm/w
FLHA 2D 162	2 ft	162w	21,222 lm	131 lm/w	21,060 lm	130 lm/w
FLHA 4D 178	4 ft	178w	23,318 lm	131 lm/w	22,721 lm	129 lm/w
FLHA 4D 223	4 ft	223w	29,213 lm	131 lm/w	26,985 lm	128 lm/w
FLHA 4D 321	4 ft	321w	42,051 lm	131 lm/w	41,730 lm	130 lm/w

* lumen as tested with frosted lens

Build Your Light

Family	Model	Color Temperature	Input Voltage	Lens Type	Optional Adds-on
FLHA
	2D 090 - 2 ft, 90w	40 - 4000K	UV - 120-277v	FL - Frosted	EM - Emergency backup
	2D 110 - 2 ft, 110w	50 - 5000K	HV - 347-480v	CL - Clear ¹	IR - PIR occupancy control
	2D 162 - 2 ft, 162w			WL - Without Lens	MO - Bi-level occupancy control
	4D 178 - 4 ft, 178w				DLH - Daylight harvesting control
	4D 223 - 4 ft, 223w				CB - Aircraft cable mount
	4D 321 - 4 ft, 321w				PM - Pendant mount
					SM - Surface mount
					WG - Wireguard

* Ordering information is for reference only. Some product configurations are not available. Please consult spec sheets for specific product availability and for further details.
1) extra cost apply
